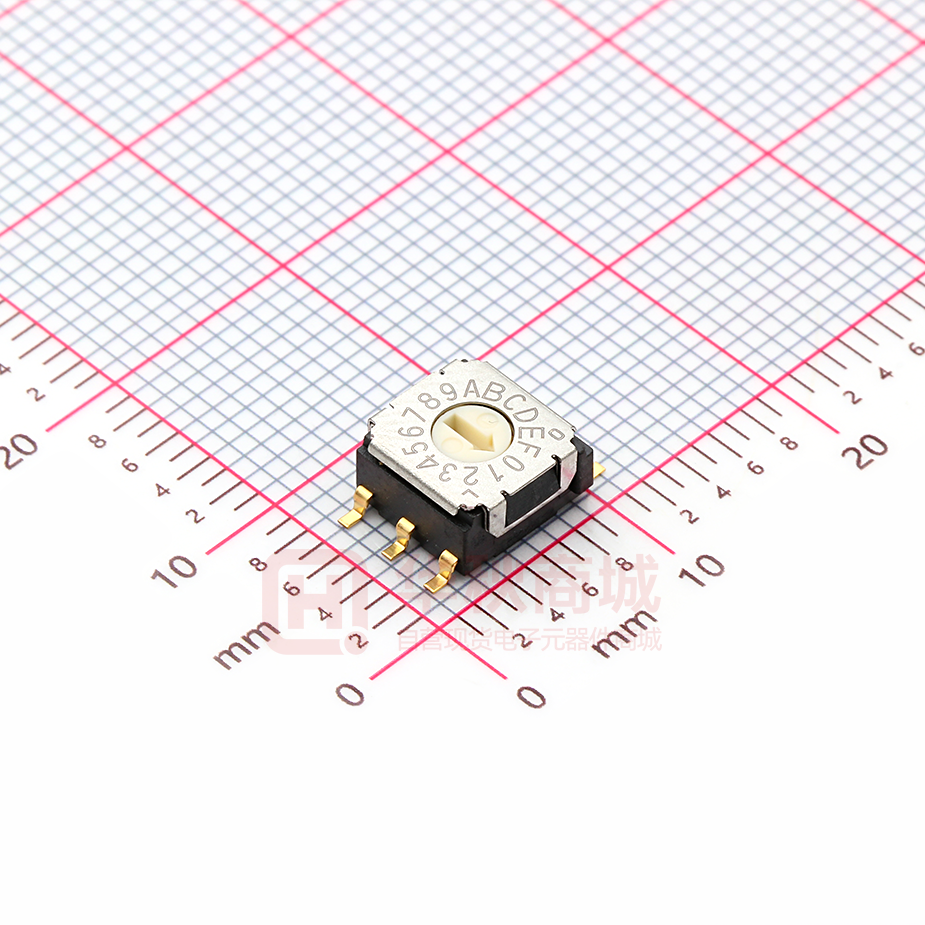

SH-7050MB

ROTARY CODED SWITCHES (SMD) RoHS compliant SH-7000 INTERNAL STRUCTURE ④ ① ② ③ ⑧ ⑨ ⑦ ⑤ Part name ⑥ Material ① Marking cover Stainless steel (SUS 304) ■ FEATURES ② Cover Stainless steel (SUS 301) ● RoHS compliant ● Center Common terminal pins location ● High digit visibility ● Gray code output available ● Washable ③ “O” ring ④ Flammability — Silicone rubber UL94HB Rotor Polyphenylenesulphide UL94V-0 ⑤ Spacer Stainless steel (SUS 304) ⑥ Moving contact ⑦ Fixed contact ⑧ Housing ⑨ Terminal pin — Copper alloy, Gold-plated Polyphenylenesulphide UL94V-0 Copper alloy, Gold-plated — ■ PART NUMBER DESIGNATION S H - 7 0 1 0 T A Series name Shape of terminal Shape of rotor A：J-hook B：Gull wing C：Through hole pins 0：Without knob (Minus slot) Form of packaging Code format 1：10 positions, real code 3：10 positions, complementary code 4：10 positions, gray code 5：16 positions, real code 7：16 positions, complementary code 8：16 positions, gray code ※ Please refer to the LIST OF PART NUMBERS when placing orders. T ：Taping (Reel) M：Magazine Setting position 0：Top setting SH-7000 ROTARY CODED SWITCHES (SMD) ■ CODE FORMAT 16 positions No. of positions 　　　　　　　　　　　10 positions Position 0 1 2 3 4 5 6 7 8 9 A B C D E F 8 Real code 4 2 1 Code Complementary code Gray code ● ● ● ● ● ● ● ● ● ● ● ● ● ● 8 ● ● ● ● 4 ● 2 ● ● ● ● ● ● ● ● ● ● ● ● 2 ● ● 1 ● A J-hook B Gull wing Taping C Through hole pins Taping Top setting Minus slot Magazine Magazine Magazine ● ● ● Taping ● ● ● ● Form of packaging ● ● ● ● Shape of terminal ● ● ● 4 Shape of rotor ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● …Contact closed ■ LIST OF PART NUMBERS Setting position ● ● ● ● ● ● ● ● ● ● 1 ● 8 ● ● ● Binary coded decimal Binary coded hexadecimal Real code Complementary code Gray code Real code Complementary code Gray code Pieces in package SH-7010TA SH-7030TA SH-7050TA SH-7070TA 500 pcs./reel SH-7010MA SH-7030MA SH-7050MA SH-7070MA 50 pcs./stick SH-7010TB SH-7030TB SH-7040TB SH-7050TB SH-7070TB SH-7080TB 500 pcs./reel SH-7010MB SH-7030MB SH-7040MB SH-7050MB SH-7070MB SH-7080MB 50 pcs./stick SH-7010MC SH-7030MC SH-7050MC SH-7070MC 50 pcs./stick 　 : Not manufactured ※ Verify the above part numbers when placing orders.Taping and magazine version can be supplied only in reel or stick unit. ■ STANDARD SPECIFICATIONS Circuit type Operating temperature range Storage temperature range Sealing Net weight BCD (Real code, Complementary code, Gray code) BCH (Real code, Complementary code, Gray code) − 40 ~ 85 °C − 40 ~ 105 °C (Gray code) ■ ELECTRICAL CHARACTERISTICS Contact rating Non-switching Switching Minimum Contact resistance Insulation resistance Washable by “O” ring ※ Please refer to page 150,151 Approx. 0.38 g Dielectric strength DC50 V 100 mA DC5 V 100 mA DC20 mV 1 μ A 100 m Ω maximum 1000 M Ω (DC100 V) minimum AC250 V, 60 s SH-7000 ROTARY CODED SWITCHES (SMD) ■ MECHANICAL CHARACTERISTICS ■ ENVIRONMENTAL CHARACTERISTICS 10, 16 No. of positions 3 ~ 20 mN·m { 3~ 204 gf·cm} Adjustment torque Stepping angle 36° (10 positions) 22.5° (16 positions) Solderability 245 ± 3 °C, 2 ~ 3 s Amplitude 1.5 mmor Acceleration 98 m/s2, 10-500-10 Hz, 3 directions for 2 h each Vibration 490 m/s2, 11 ms 6 directions for 3 times each Shock Load life 10000 steps minimum, DC5 V, 100 mA Humidity 40 °C, Relative humidity 90 ~ 95 %, 240 h Reflow：255 °C (Peak temperature) Reflow : Peak temperature 255 °C (Please refer to the profile below.) Flow : 260 ± 3 °C as the temperature in a pot of molten solder, immer­sion from head of ter­minal to backside of board,5 ~ 6 s, two times maximum Low temperature exposure − 40 °C, 96 h − 40 (0.5 h) ~ 85 °C ( 0.5 h ), 5 cycles − 40 (0.5 h) ~ 105 °C ( 0.5 h ), 5 cycles (Gray code) 〈Reflow profile for soldering heat evaluation〉 Manual soldering： 350 ± 10 °C, 3 ~ 4 s (℃) 250 Shear (adhesion) 5 N {0.51 kgf} 10 s Substrate bending Width 90 mm, bend 3 mm, 5 s, 1 time 5 N {0.51 kgf} 10s Pull-off strength 85 °C, 96 h 105 °C, 96 h (Gray code) Thermal shock { } : Reference only Temperature Soldering heat High temperature exposure ℃ Over 230 ℃ Peak : 250 200 Pre Heating Zone 180 ℃ 150 ℃ 150 +5 0 90 ± 30 s 100 30 ± 10 s 50 Soldering Zone Heating time Reflow : two times maximum ■ OUTLINE DIMENSIONS Unless otherwise specified, tolerance: ± 0.3 (Unit: mm) ● SH-7010B (Real code) ● SH-7030B (Complementary code) Production date code 7.3 7.3 3.75 0.7 W × 2.8 L × 1 D Marking appears only with complementary code 2.54 2.54 10 7.1 5.1 7.5 7.1 ② Ⓒ ⑧ ④ Ⓒ ① 6 – 0.6 t = 0.15 ④ Ⓒ ① 6 – 0.6 t = 0.15 0.65 min. Production date code ② Ⓒ ⑧ 0.7 W × 2.8 L × 1D 3.75 Marking appears only with complementary code 0.65 min. ● SH-7010A (Real code) ● SH-7030A (Complementary code) 2.54 2.54 SH-7000 ROTARY CODED SWITCHES (SMD) ■ OUTLINE DIMENSIONS Unless otherwise specified, tolerance: ± 0.3 (Unit: mm) ● SH-7010C (Real code) ● SH-7030C (Complementary code) ● SH-7050A (Real code) ● SH-7070A (Complementary code) Production date code 7.3 Production date code ④ Ⓒ ① 3.5 ± 1 2.54 2.54 5.1 3.7 0.7 W × 2.8 L × 1 D 7.5 ② Ⓒ ⑧ 6 – 0.6 t = 0.15 ④ Ⓒ ① 7.1 7.1 7.62 ± 0.5 7.3 Marking appears only with complementary code ② Ⓒ ⑧ 3.75 2.54 2.54 0.7 W × 2.8 L × 1 D 6 – 0.6 t = 0.15 Marking appears only with complementary code ● SH-7050B (Real code) ● SH-7070B (Complementary code) ● SH-7050C (Real code) ● SH-7070C (Complementary code) Production date code 7.3 Production date code 0.65 min. ② Ⓒ ⑧ 10 7.1 7.1 ④ Ⓒ ① ④ Ⓒ ① 6 – 0.6 t = 0.15 7.62 ± 0.5 7.3 0.7 W × 2.8 L × 1 D 3.7 3.5 ± 1 2.54 2.54 ② Ⓒ ⑧ 0.7 W × 2.8 L × 1 D 3.75 0.65 min. Marking appears only with complementary code 2.54 2.54 6 – 0.6 t = 0.15 Marking appears only with complementary code ● SH-7040B (Gray code) ● SH-7080B (Gray code) Production date code 10 ⑧ 0.7 W × 2.8 L × 1 D 3.75 0.65 min. ② 7.3 2.54 ④ Ⓒ 0.65 min. ① 5 – 0.8 t = 0.15 ① ② 5.08 2.54 5 – 0.8 t = 0.15 10 Ⓒ 7.1 ④ 2.54 ⑧ 0.7 W × 2.8 L × 1 D 3.75 0.65 min. 7.3 7.1 0.65 min. Production date code 5.08 2.54 SH-7000 ROTARY CODED SWITCHES (SMD) ■ RECOMMENDED P.C.B. PAD OUTLINE DIMENSIONS ● A type ● B type ● Gray code (Unit: mm) 2.5 0 1 5.08 1 5.08 0 1 0 3 5.08 3 9 11 11 注）０点は搭載中心とする Note) The zero point is the center of mounting. ■ TERMINAL CONNECTION / P.C.B. THROUGH HOLE DIMENSIONS (Unit: mm) Top setting (Through Through holehole) Real code Complementary code Top setting (Through hole) P.C.B. dimensions (Bottom view) Real code 8 1 C C 4 2 8 1 C 2 2.54 ± 0.1 2.54 ± 0.1 Terminal pin layout (Bottom view) Complementary code 8 1 C C 4 2 8 1 C 2 C 4 C 4 2.54 ± 0.1 6 – φ 1 hole 2.54 ± 0.1 6 – φ 1 hole SH-7000 case SH-7000 case ■ PACKAGING SPECIFICATIONS ● Taping version is packaged in 500 pcs. per reel. Orders will be accepted for units of 500 pcs., i.e., 500, 1000, 1500, pcs., etc. ● Taping version is boxed with one reel (500 pcs.). Maximum number of consecutive missing pieces = 2 Leader length and reel dimension are shown in the diagrams below: SH-7000 ROTARY CODED SWITCHES (SMD) ● Embossed tape dimensions ● Reel dimensions (Unit: mm) (Conforms to JIS C 0806-3) (In accordance with EIAJ ET-7200A) 25.4 ± 1 Empty 2 ± 0.5 φ 13 ± 0.2 End Head 40 mm min. Direction of feed φ 21 ± 0.8 20 pitches min. Leader 400 mm min. φ 330 ± 2 Filled φ 100 ± 1 Empty Part No. label 29.4 ± 1 ● SH-70 □ 0TA ● SH-70 □ 0TB 12 ± 0.1 4 ± 0.1 2 ± 0.1 24 456 23 901 0.4 ± 0.1 11.5 ± 0.1 φ 1.5 +0.1 0 1.75 ± 0.1 (Unit: mm) 78 4.3 Direction of feed ■ PACKAGING SPECIFICATIONS ● Please order the multiple numbers of the specific packing quantities. Pieces in package : 50 pcs./stick ● Magazine dimensions (Unit : mm) 17.2 13.4 magazine length：390 ± 3mm long
