Specifications
HK275S35CDC-40
HK275S35CDC-40
(1020mil)
说明书
Specifications
1/7
Specifications
HK275S35CDC-40
1、功能和运用 Features & Applications
3/7
2、外形尺寸 Outline Dimensions
3/7
3、绝对最大额定值 Absolute Maximum Rating
3/7
4、光电参数 Electro Optical
3/7
5、料号 Bin Structure
4/7
6、光电特性图 Characteristics Diagrams
4/7
7、可靠性试验项目及条件 Reliability Test Items and Conditions
5/7
8、使用说明 Instructions
5/7
9、主要的安全提示 Major security tips
7/7
太湖县裕田光电显示有限公司
Taihu ROOTIN photoelectric display Co.,Ltd
地址(Add):太湖县刘畈乡刘畈村枫树街 Fengshu street, Liufan village, Liufan Township, Taihu County
电话(Tel):400-860-1710
网站(Web): www.uvclcd.com
传真(Fax):0556-4371082
www.hea-keys.cn
2/7
Specifications
HK275S35CDC-40
1、功能和运用 Features & Applications
•峰值波长:UVC:270~280纳米+UVA:395~405纳米
Lighting Color(Peak Wavelength): UVC:270~280nm+UVA:395~405nm

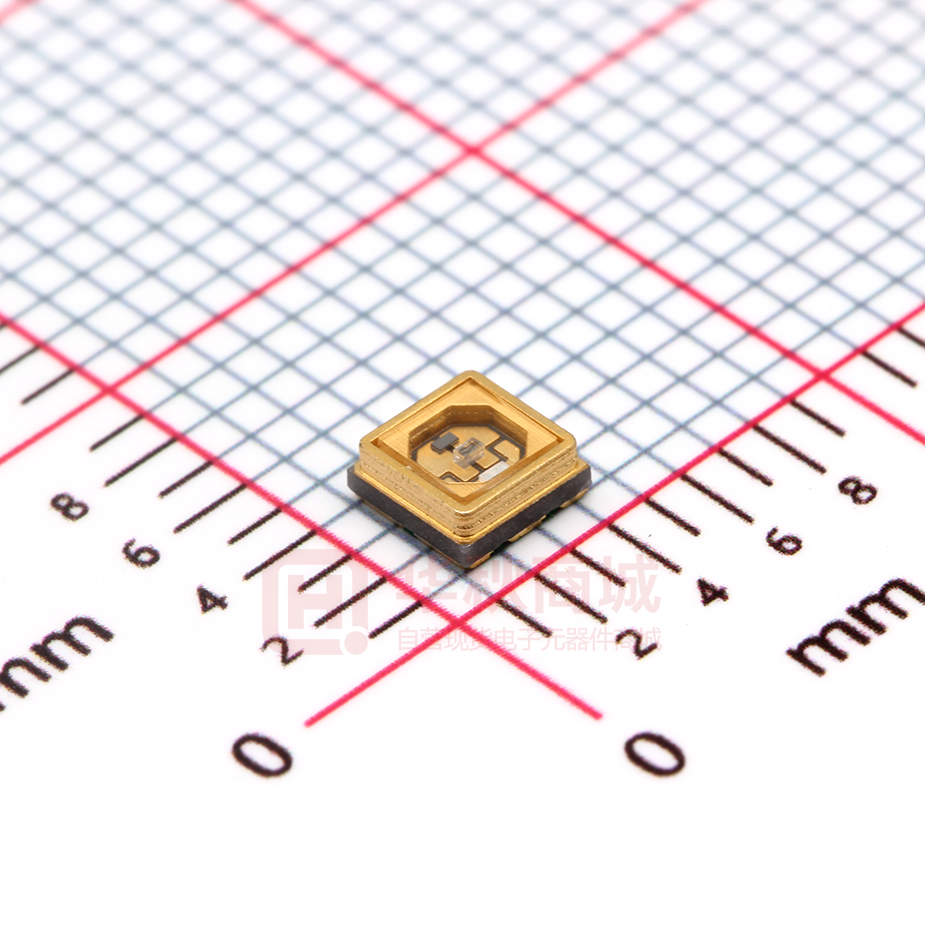

• 外形尺寸:3.5 × 3.5 ×1.37 (长 × 宽 ×高) [单位t: 毫米]
Surface Mount Type LED Package: 3.5 × 3.5 ×1.37 (L × D × H) [Unit: mm]
• 发光角度:120度
View angle (2Θ1/2=120deg)
•消毒、荧光光谱、传感灯等
Disinfection, Fluorescent Spectroscopy, Sensor Light, etc.
2、外形尺寸 Outline Dimensions
3、绝对最大额定值 Absolute Maximum Rating
[Ta = 25℃]
参数值 value
参数
Parameter
符号
Symbol
最小值 min
正向电流
Forward Current
UVC I F
40
电功率
Power Dissipation
UVC P D
UVA IF
均值 type
最大值 max
60
80
150
0.3
UVA P D
-
0.48
0.45
单位
Unit
毫安(mA)
瓦(W)
工作温度
Operating Temperature
T OPR
-30
-
60
摄氏度(℃)
存储温度
Storage Temperature
T STG
-40
-
95
摄氏度(℃)
符号
Symbol
单位
Unit
最小值
Min.
均值
Typ.
最大值
Max.
4、光电参数 Electro Optical
[Ta = 25℃, I F = 60mA]
参数
Parameter
峰值波长
UVC λp
nm
270
-
280
Peak Wavelength[1]
UVA λp
nm
395
-
405
辐射通量
UVC ɸe
mW
3
-
5
Radiant Flux[2]
UVA ɸe
mW
40
-
45
正向电压
UVC VF
V
5
-
8
Forward Voltage[3]
UVAVF
V
2.9
-
3.2
半波宽
Spectrum Half Width
Δλ
nm
10
发光角度
View Angle
2θ½
°
120
热阻
Thermal Resistance
RJ-b
℃/W
40
3/7
Specifications
HK275S35CDC-40
备注1 (Note1)
[1] 峰值波长公差±3.5纳米( Peak Wavelength Tolerance ± 3.5nm)
[2] 辐射通量测量公差±10% ( Radiant Flux Measurement tolerance ±10%)
[3] 正向电压公差为±10% (Forward Voltage Tolerance ± 10%)
[4] RJ-b是从芯片焊盘到支架的热电阻 (RJ-b is thermal resistance from junction to case.)
[5] 所有参数均为裕田测定 (All characteristics are measured by ROOTIN)
5、料号 Bin Structure
[ Ta =25℃, I F =60㎃]
命名
Designate
X
参数
Information
峰值波长
Peak Wavelength
Z
辐射通量
Radiant Flux
(Φ e )
代码
Code
最小值
Min.
均值
Typ.
最大值
Max.
255
250
-
260
265
260
-
270
275
270
-
280
295
290
-
300
310
305
-
315
-40
3
-
5
-60
5
-
7
-80
7
-
9
-100
9
-
11
典型值 Main Ranks
备注2 (Note2)
分BIN方法(Bin Code method)
BIN码:HK-X-S39CL-Z
-峰值波长(Peak Wavelength)=X0
-辐射通量(Radiant Flux)=Z0
6、光电特性图 Characteristics Diagrams
(1)相对光谱分布Relative spectral distribution
(2)I-V特性 I-V Characteristic
(3)辐射强度VS电流 Radiated power VS current
(4)典型配光曲线 Typical light distribution curve
4/7
Specifications
HK275S35CDC-40
7、可靠性试验项目及条件 Reliability Test Items and Conditions
(1)损伤判断标准 Criteria for Judging the Damage
参数
Parameter
符号
Symbol
条件
Condition
正向电压
Forward Voltage
VF
IF=60mA
辐射功率
Radiometric Power
IV
IF=60mA
判定标准 Criteria for Judgement
Min.
Max.
H.S.R..(1) *1.1
H.S.L(1) *0.5
备注3 Note3:
[1] H.S.R:规格上限 Upper Specification Level
[2] H.S.L:规格下限 Lower Specification Level
(2) 可靠性试验 Reliability Tests
试验项目 Test Item
试验条件 Test Conditions
试验时间 Test Time
样品数量 Sample Q’ty
室温及工作寿命
Room Temperature
Operating Life1
Ta=25℃,If=20mA
1200hrs
12 Pcs
室温及工作寿命
Room Temperature
Operating Life2
Ta=25℃,If=60mA
1200hrs
12 Pcs
高温及工作寿命
HighTemperature
Operating Life
Ta=60℃,If=40mA
1200hrs
12 Pcs
低温及工作寿命
Low Temperature
Operating Life
Ta=40℃,If=60mA
1200hrs
12 Pcs
高温及存储寿命
HighTemperature
Operating Life
Ta=95℃
1200hrs
12 Pcs
低温及存储寿命
Low Temperature
Operating Life
Ta=-40℃
1200hrs
12 Pcs
热冲击
Thermal Shock
Ta max=120℃, Ta min=-40℃
30min dwell/transfer time: 10sec.
1 cycle = 1 hour
120 cycle
12 Pcs
8、使用说明 Instructions
(1) LED储存:建议存储温度10摄氏度-55摄氏度,湿度:30%-65%,包装袋密封保存。为了保证产品质量,外包装袋打开前,出厂后一年内使用,外包装
袋打开后,建议28天内使用。
LED storage: suggest to sealed stock in under the temperature of 10℃-55℃,humidity of 30%-65%.In order to keep a good quality, pls use it within 1 year after the
prodcution date; and use it out within 28days after open the package.
(2) 拿取方法:接触LED检查时需戴手套或者手指套,工作台面也要接地,包装袋开口后要及时封口,防止引脚氧化。打开包装后,操作人员应该使用镊
子夹持LED两侧,避免手接触LED正面。
When taking or touch the LED, pls make sure to wear the gloves. Seal the package in time in orde to avoid the pin oxidation. When openning the package, need to use
the weezers clamped on both sides of LED in order not to touch the face of the LED.
(3) 安装:这一过程主要是静电的防护
Installation: This process is mainly to protect the static electricity
5/7
Specifications
HK275S35CDC-40
① 生产前检查机台设备接地线是否正常;
Check if the grounding wire of the machine equipment is normal before production;
② 检查人员静电环是否正常,检查静电的金属与人的皮肤接触紧密;
Check if the static ring is normal, check static metal and human skin contact closely;
③ 在安装时最好要求作业人员戴好防静电手套或者防静电手指套;
Check if the workerswear anti-static gloves;
④ 作业台面铺好静电胶布,胶布之间应相互连接接地;
Check if the working table is paved with electrostatic rubber cloth, and the rubber cloth is connected to each other.
⑤ 开封后最好在二十四小时内用完,否则可能会引起灯脚氧化生绣。
After opening the seal, it is better to use it out in 24hors, otherwise it may cause the oxidation of the foot.
(4)建议使用低温锡膏进行迴流焊,温度曲线如下图所示:
It is recommended to use low temperature solder paste for reflow, and the temperature curve is shown in the following diagram.
① 预热区
升温速率为2.0-5.0摄氏度/秒,在预热区的升温速度过快,容易是锡膏的流移性及成分恶化,易产
生爆锡和锡珠现象。
Preheating area
The temperature speed is 2.0-5.0℃/S. If the temperature rises too fast, it is easy to cause paste mobility and
component deterioration, then cause the tin explosive and phenomenon.
② 浸润区
温度150-180摄氏度,时间120秒最为适宜,如果温度过低,则在回焊后会有焊锡未熔的情况发生
(建议温升速度
