太湖县裕田光电显示有限公司
Taihu ROOTIN Photoelectric display Co.,LTD
地址:太湖县刘畈乡刘畈村松本裕田工业园
电话:400-860-1710 传真:0556-4371082
样品承认书
Specification for Approval
客户名称 Customer:
产品名称 Description:
产品型号 Model:
样品编号 Sample No:
日期 Date:
深紫外LED
HK275S35CG-60(@60mA)新版支架
HK-SN2020031802A
2020/3/18

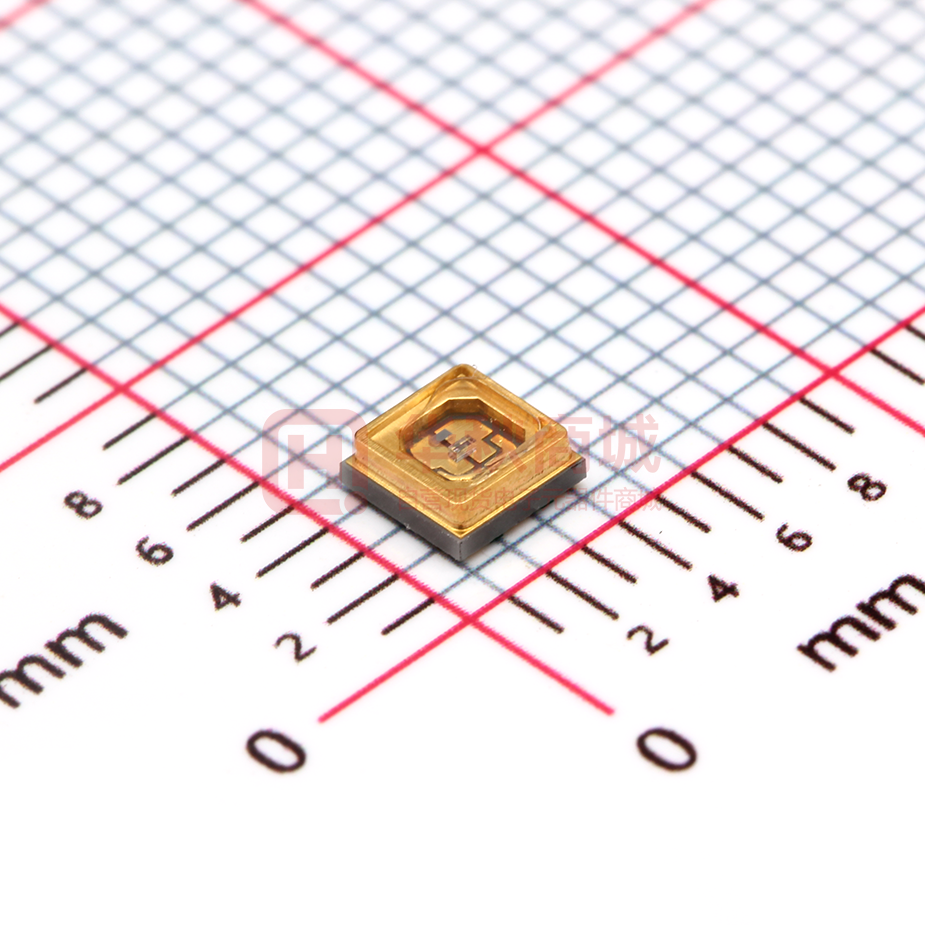

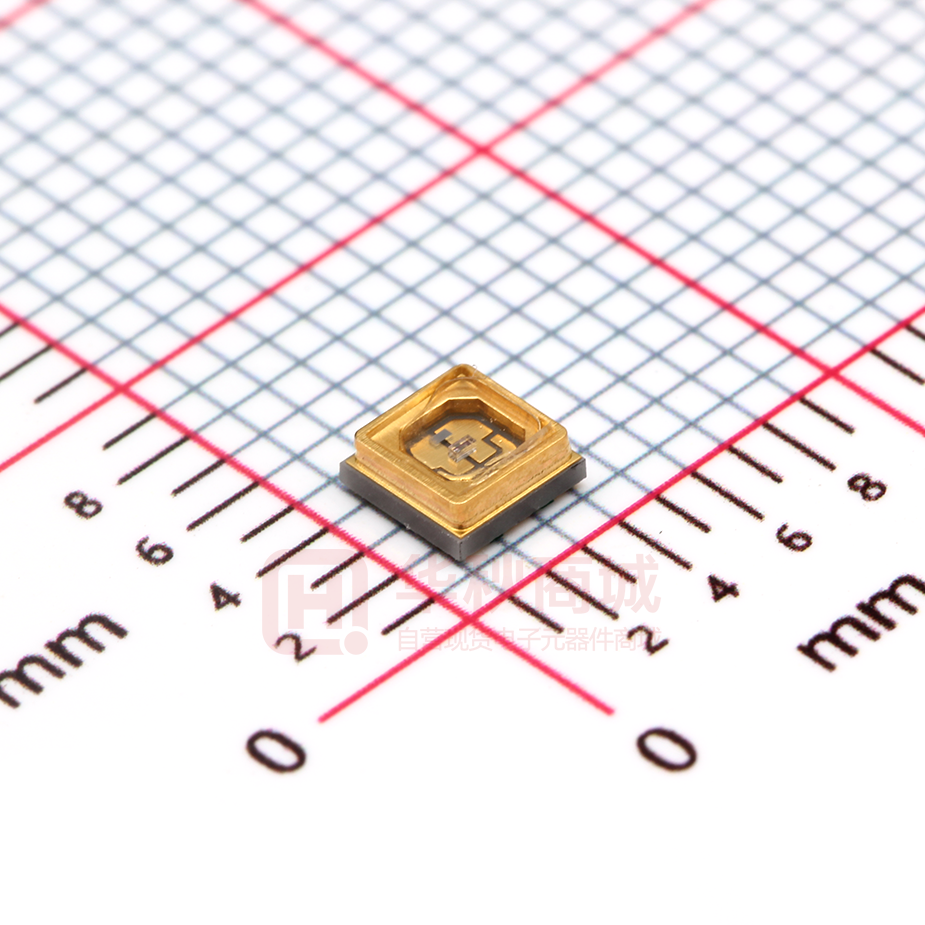

附产品照片Attached Product Photos
由工程部提供 The specitication is afforded by Engineering dapartment
此规格经生产、品质确认 Approved by Production Quality department
核准 approval:
审核 To examine:
制作 Make:
客户确认签名
Approved Signatures
采购部
Purchasing Department
研发部
R&D Department
工程部
Engineering Department
第 1 页,共 7 页
经理签字
Manager's signature
太湖县裕田光电显示有限公司
Taihu ROOTIN Photoelectric display Co.,LTD
地址:太湖县刘畈乡刘畈村松本裕田工业园
电话:400-860-1710 传真:0556-4371082
1、产品命名规则(Product naming rules)
产品命名规则Product naming rules
HK
X
品牌缩写
波长
Brand Abbreviation wavelength
S
Y
Z
—
T
封装类型
Packaging
type
封装尺寸
Size
支架类型
Type of stent
分割线
Partition
line
功率
Power
35
C&CCC代表陶瓷一体式支架
C &CCCrepresents ceramic
integral bracket
37
CL代表带透镜,发光角度60°
CL stands for a lens with a
luminous angle of 60 degrees.
—
单位毫瓦值
radiation intensity
255nm
265nm
275nm
Hea-Keys
说明Explain:
SMD贴片
295nm
TO插件
310nm
39
CG代表金属支架
CG stands for metal bracket
CPD代表平面硅胶支架
CPD stands for Planar silica gel
395nm
68
CDC代表双芯片
CDC Represents double Chips
1、X表示波长X stands wavelength
2、Y表示尺寸Y stands for size
3、Z表示支架类型Z stands for stent type
4、T表示功率值T stands for power value
2、产品尺寸Size: 3.50*3.50*1.37mm
提示:N1\N2\N3为空脚,可做散热盘,A为正极,K为负极
第 2 页,共 7 页
太湖县裕田光电显示有限公司
Taihu ROOTIN Photoelectric display Co.,LTD
地址:太湖县刘畈乡刘畈村松本裕田工业园
电话:400-860-1710 传真:0556-4371082
注意:为了获得更好的稳定输出功率,UV LED需要良好的散热环境或者散热系统,建议灯珠在工作状态中,支架温度
不要超过50摄氏度。
Note:In order to have a stable output, UV LED need a very good heat release enviroment or a good heat release system. We
suggest the temperature of holder could not be over 50℃ when LED is working.
3、极限使用条件 Limitation use conditions:
项目Project
单位Unit
范围Range
工作温度
Working temperature
℃
﹣30~60
存储温度
Storage temperature
℃
﹣30~60
建议焊接温度
Max welding temperature
℃
170~180
注意:将LED置于以上极限范围值以外的条件时,可能会影响器件的可靠性并造成永久损坏。不建议在以上范围之外的
条件下进行操作。
Note: It will affect the quality of the equipment,even broken if out of the limitation of the LED use confition. It is not
recommended to operate over the above limits
4、光电参数Optoelectronic parameter value :
参数Parameter
单位Unit
正向电压(Vf)
Forward voltage
条件Condition
最小Min
均值Ave
最大Max
V
5.90
6.30
6.80
输出功率(mW)
Output power
mW
4.80
5.10
6.00
峰值波長(λp)
Peak wavelength
nm
270.00
277.00
280.00
11.00
15.00
60mA
半波寬(Δλ)
Half wave width
nm
發光角度 2θ1/2
Luminescence angle
°
120.00
ESD(H.B.M)
V
4000.00
第 3 页,共 7 页
太湖县裕田光电显示有限公司
Taihu ROOTIN Photoelectric display Co.,LTD
地址:太湖县刘畈乡刘畈村松本裕田工业园
电话:400-860-1710 传真:0556-4371082
注意:
①:输出光功率的测量公差为百分之十。
Output power measurement tolerance is 10%
②:电压的测量公差为0.1伏
Voltage measurement tolerance is 0.1V
③:主波长的测量公差为1纳米
Wavelength measurement tolerance is 1nm
④:均可脉冲工作(低频一千赫兹;占空比:百分之五)最大工作电流为80毫安
Average Pulse: (Frequency1KHZ, Bias:5%);
The biggest working electric curren:80mA;Average Pulse
5、输出功率等级Output power levels
电流Electric current
20mA
30mA
40mA
60mA
功率Power
2.4~2.8mW
2.8~3.5mW
3.5~4.6mW
4.6~6.0mW
L50寿命Service life
12000h
6000h
4000h
1900h
6、光电特性Photoelectric characteristics
(TA=25℃)
相对光谱分布Relative spectral distribution
I-V特性 I-V Characteristic
辐射强度VS电流 Radiated power VS current
典型配光曲线 Typical light distribution curve
第 4 页,共 7 页
太湖县裕田光电显示有限公司
7、使用说明Instructions:
Taihu ROOTIN Photoelectric display Co.,LTD
地址:太湖县刘畈乡刘畈村松本裕田工业园
电话:400-860-1710 传真:0556-4371082
⑴ LED储存:建议存储温度10摄氏度-55摄氏度,湿度:30%-65%,包装袋密封保存。为了保证产品质量,
外包装袋打开前,出厂后一年内使用,外包装袋打开后,建议28天内使用。
LED storage: suggest to sealed stock in under the temperature of 10℃-55℃,humidity of 30%-65%.In order to
keep a good quality, pls use it within 1 year after the prodcution date; and use it out within 28days after open the
package.
⑵ 拿取方法:接触LED检查时需戴手套或者手指套,工作台面也要接地,包装袋开口后要及时封口,防止引
脚氧化。打开包装后,操作人员应该使用镊子夹持LED两侧,避免手接触LED正面。
When taking or touch the LED, pls make sure to wear the gloves. Seal the package in time in orde to avoid the pin
oxidation. When openning the package, need to use the weezers clamped on both sides of LED in order not to touch
the face of the LED.
⑶ 安装:这一过程主要是静电的防护:
Installation: This process is mainly to protect the static electricity:
① 生产前检查机台设备接地线是否正常;
Check if the grounding wire of the machine equipment is normal before production;
② 检查人员静电环是否正常,检查静电的金属与人的皮肤接触紧密;
Check if the static ring is normal, check static metal and human skin contact closely;
③ 在安装时最好要求作业人员戴好防静电手套或者防静电手指套;
Check if the workerswear anti-static gloves;
④ 作业台面铺好静电胶布,胶布之间应相互连接接地;
Check if the working table is paved with electrostatic rubber cloth, and the rubber cloth is connected
to each other.
⑤ 开封后最好在二十四小时内用完,否则可能会引起灯脚氧化生绣。
After opening the seal, it is better to use it out in 24hors, otherwise it may cause the oxidation of the
foot.
⑷ 建议使用低温锡膏进行迴流焊,温度曲线如下图所示:
It is recommended to use low temperature solder paste for reflow, and the temperature curve is shown in the
following diagram.
第 5 页,共 7 页
太湖县裕田光电显示有限公司
Taihu ROOTIN Photoelectric display Co.,LTD
地址:太湖县刘畈乡刘畈村松本裕田工业园
电话:400-860-1710 传真:0556-4371082
① 预热区
升温速率为1.0-3.0摄氏度/秒,在预热区的升温速度过快,容易是锡膏的流移性及成分
恶化,易产生爆锡和锡珠现象。
Preheating area
The temperature speed is 1.0-3.0℃/S. If the temperature rises too fast, it is easy to cause
paste mobility and component deterioration, then cause the tin explosive and phenomenon.
② 浸润区
温度110-130摄氏度,时间90-100秒最为适宜,如果温度过低,则在回焊后会有焊锡未熔
的情况发生(建议温升速度
