SMCJ Series
Integrated in
OVP&OCP products
provider
1500W Transient Voltage Suppressor
Description
Mechanical Characteristics
TVS diodes can be used in a wide range of applications
Package: SMC/DO-214AB
which like consumer electronic products, automotive
Case Material: “Green” Molding Compound.
Polarity: Color band denotes cathode except
industries,
munitions,
telecommunications,
aerospace
industries, and intelligent control systems.
bi-directional models
Features
Standard Packaging: 16mm tape (EIA STD
RS-481)
Glass passivated or planar junction
Excellent clamping capability
Repetition rate (duty cycle): 0.01%
Low profile package and low inductance
1500W Peak Pulse power capability at 10×1000μs
Weight: 0.26g
Terminal Connections: See Diagram Below
Marking Information: See Below
Applications
waveform.
Fast response time: typically less than 1.0ps from 0V
I/O Interface.
to VBR min.
AC/DC Power supply
High temperature soldering: 260℃/10s at terminals.
Low frequency signal transmission line
Plastic
package
has
Underwriters
(RS232, RS485, etc.)
Laboratory
Flammability 94V-0.
For surface mounted applications in order to optimize
Marking Information
board space.
Dimensions & Symbol(Unit: mm Max)
Marking Information
Out line
Taping
Rev.A_Feb,2018
-1-
Reel
Per carton
Reel diameters
(pcs)
(pcs)
(mm)
3K
48K
330
www.wpmtek.com
SMCJ Series
Integrated in
OVP&OCP products
provider
1500W Transient Voltage Suppressor
Electrical characteristics (TA=25℃)
Part
Number
Marking
Bi
IR@VR
V
μA
min(V)
IT
VC@IPP
IPP①
max(V)
mA
max(V)
A
VBR@IT
Uni-Polar
Bi-Polar
SMCJ5.0A
SMCJ5.0CA
GDE BDE
5.0
300
6.40
7.00
10
9.2
163.0
SMCJ6.0A
SMCJ6.0CA
GDG BDG
6.0
250
6.67
7.37
10
10.3
145.6
SMCJ6.5A
SMCJ6.5CA
GDK BDK
6.5
150
7.22
7.98
10
11.2
134.0
SMCJ7.0A
SMCJ7.0CA
GDM BDM
7.0
100
7.78
8.60
10
12.0
125.0
SMCJ7.5A
SMCJ7.5CA
GDP BDP
7.5
50
8.33
9.21
1
12.9
116.3
SMCJ8.0A
SMCJ8.0CA
GDR BDR
8.0
30
8.89
9.83
1
13.6
110.3
SMCJ8.5A
SMCJ8.5CA
GDT BDT
8.5
20
9.44
10.40
1
14.4
104.2
SMCJ9.0A
SMCJ9.0CA
GDV BDV
9.0
10
10.00
11.10
1
15.4
97.4
SMCJ10A
SMCJ10CA
GDX BDX
10
5
11.10
12.30
1
17.0
88.2
SMCJ11A
SMCJ11CA
GDZ BDZ
11
2
12.20
13.50
1
18.2
82.4
SMCJ12A
SMCJ12CA
GEE BEE
12
1
13.30
14.70
1
19.9
75.4
SMCJ13A
SMCJ13CA
GEG BEG
13
1
14.40
15.90
1
21.5
69.8
SMCJ14A
SMCJ14CA
GEK BEK
14
1
15.60
17.20
1
23.2
64.7
SMCJ15A
SMCJ15CA
GEM BEM
15
1
16.70
18.50
1
24.4
61.5
SMCJ16A
SMCJ16CA
GEP BEP
16
1
17.80
19.70
1
26.0
57.7
SMCJ17A
SMCJ17CA
GER BER
17
1
18.90
20.90
1
27.6
54.4
SMCJ18A
SMCJ18CA
GET
BET
18
1
20.00
22.10
1
29.2
51.4
SMCJ20A
SMCJ20CA
GEV BEV
20
1
22.20
24.50
1
32.4
46.3
SMCJ22A
SMCJ22CA
GEX BEX
22
1
24.40
26.90
1
35.5
42.3

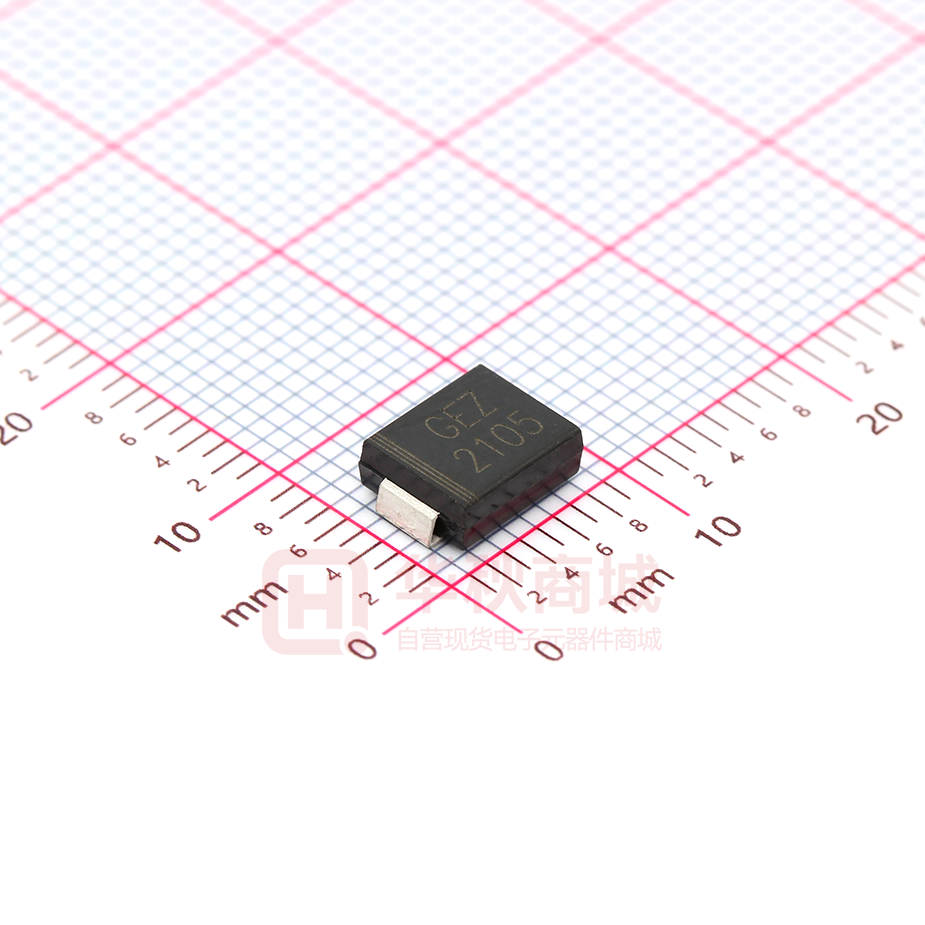

SMCJ24A
SMCJ24CA
GEZ
BEZ
24
1
26.70
29.50
1
38.9
38.6
SMCJ26A
SMCJ26CA
GFE
BFE
26
1
28.90
31.90
1
42.1
35.6
SMCJ28A
SMCJ28CA
GFG BFG
28
1
31.10
34.40
1
45.4
33.1
SMCJ30A
SMCJ30CA
GFK
BFK
30
1
33.30
36.80
1
48.4
31.0
SMCJ33A
SMCJ33CA
GFM BFM
33
1
36.70
40.60
1
53.3
28.2
SMCJ36A
SMCJ36CA
GFP
BFP
36
1
40.00
44.20
1
58.1
25.8
SMCJ40A
SMCJ40CA
GFR
BFR
40
1
44.40
49.10
1
64.5
23.3
SMCJ43A
SMCJ43CA
GFT
BFT
43
1
47.80
52.80
1
69.4
21.6
SMCJ45A
SMCJ45CA
GFV
BFV
45
1
50.00
55.30
1
72.7
20.6
SMCJ48A
SMCJ48CA
GFX
BFX
48
1
53.30
58.90
1
77.4
19.4
SMCJ51A
SMCJ51CA
GFZ
BFZ
51
1
56.70
62.70
1
82.4
18.2
Rev.A_Feb,2018
Uni
VR
-2-
www.wpmtek.com
SMCJ Series
Integrated in
OVP&OCP products
provider
1500W Transient Voltage Suppressor
Electrical characteristics (TA=25℃, continued)
Part Number
1
Marking
VR
IR@VR
VBR@IT
IT
VC@IPP
IPP①
Uni-Polar
Bi-Polar
Uni
Bi
V
μA
min(V)
max(V)
mA
max(V)
A
SMCJ54A
SMCJ54CA
GGE
BGE
54
1
60.00
66.30
1
87.1
17.2
SMCJ58A
SMCJ58CA
GGG BGG
58
1
64.40
71.20
1
93.6
16.1
SMCJ60A
SMCJ60CA
GGK
BGK
60
1
66.70
73.70
1
96.8
15.5
SMCJ64A
SMCJ64CA
GGM BGM
64
1
71.10
78.60
1
103.0
14.6
SMCJ70A
SMCJ70CA
GGP
BGP
70
1
77.80
86.00
1
113.0
13.3
SMCJ75A
SMCJ75CA
GGR
BGR
75
1
83.30
92.10
1
121.0
12.4
SMCJ78A
SMCJ78CA
GGT
BGT
78
1
86.70
95.80
1
126.0
11.9
SMCJ85A
SMCJ85CA
GGV
BGV
85
1
94.40
104.0
1
137.0
11.0
SMCJ90A
SMCJ90CA
GGX
BGX
90
1
100.0
111.0
1
146.0
10.3
SMCJ100A
SMCJ100CA
GGZ
BGZ
100
1
111.0
123.0
1
162.0
9.3
SMCJ110A
SMCJ110CA
GHE
BHE
110
1
122.0
135.0
1
177.0
8.5
SMCJ120A
SMCJ120CA
GHG
BHG
120
1
133.0
147.0
1
193.0
7.8
SMCJ130A
SMCJ130CA
GHK
BHK
130
1
144.0
159.0
1
209.0
7.2
SMCJ150A
SMCJ150CA
GHM BHM
150
1
167.0
185.0
1
243.0
6.2
SMCJ160A
SMCJ160CA
GHP
BHP
160
1
178.0
197.0
1
259.0
5.8
SMCJ170A
SMCJ170CA
GHR
BHR
170
1
189.0
209.0
1
275.0
5.5
SMCJ180A
SMCJ180CA
GHT
BHT
180
1
201.0
222.0
1
292.0
5.2
SMCJ190A
SMCJ190CA
GHU
BHU
190
1
211.0
234.0
1
307.0
4.9
SMCJ200A
SMCJ200CA
GHV
BHV
200
1
224.0
247.0
1
324.0
4.7
SMCJ210A
SMCJ210CA
GHW BHW
210
1
233.0
258.0
1
337.0
4.5
SMCJ220A
SMCJ220CA
GHX
BHX
220
1
246.0
272.0
1
356.0
4.2
SMCJ250A
SMCJ250CA
GJG
BJG
250
1
279.0
309.0
1
405.0
3.7
SMCJ300A
SMCJ300CA
GJK
BJK
300
1
335.0
371.0
1
486.0
3.1
SMCJ350A
SMCJ350CA
GJM
BJM
350
1
391.0
432.0
1
567.0
2.7
SMCJ400A
SMCJ400CA
GJP
BJP
400
1
447.0
494.0
1
648.0
2.3
SMCJ440A
SMCJ440CA
GJR
BJR
440
1
492.0
543.0
1
713.0
2.1
Surge waveform: 10/1000μs
VR :Stand-off Voltage -- Maximum voltage that can be applied
VBR: Breakdown Voltage
VC:Clamping Voltage -- Peak voltage measured across the suppressor at a specified Ipp
IR: Reverse Leakage Current
Rev.A_Feb,2018
-3-
www.wpmtek.com
SMCJ Series
Integrated in
OVP&OCP products
provider
1500W Transient Voltage Suppressor
Part Number Code
Absolute Maximum Ratings (TA=25ºC, RH=45%-75%, unless otherwise noted)
Parameter
Storage temperature range
Symbol
Value
Unit
Tstg
-55 to +150
℃
Tj
-55 to +150
℃
PM(AV)
8.0
W
PPP
1500
W
VF
5.0
V
Operating junction temperature range
Steady state power dissipation at TL=75℃
Peak pulse power dissipation on 10/1000μs
waveform
Maximum Instantaneous Forward Voltage at
60A for Unidirectional
Ratings And V-I Characteristics Curves (TA=25ºC, unless otherwise noted)
FIG.1:V- I curve characteristics
(Uni-directional)
FIG.2:V- I curve characteristics
(Bi-directional)
IPP
V C V BR V R
VF
V
V C V BR V R
IR
IT
V
V R V BR V C
IPP
IPP
Rev.A_Feb,2018
IT
IR
-4-
www.wpmtek.com
SMCJ Series
Integrated in
OVP&OCP products
provider
1500W Transient Voltage Suppressor
FIG.4: Pulse derating curve
FIG.3: Pulse waveform
IPPM (%IRSM )
150
tr = rise time to peak value
td = decay time to half value
tr=10μs
100
P PP derating in percentage(%)
100
80
Peak value
60
Half value
40
50
20
td
0
0
1.0
t(ms)
2.0
3.0
4.0
0
0
25
T A (℃ )
75
100
50
125
150
175
Soldering Parameters
Reflow Condition
Heat
+150℃
-Temperature Max(Ts(max))
+200℃
TP
-Time (Min to Max) (ts)
60-180 secs.
TL
Average ramp up rate (Liquid us Temp
(TL) to peak)
Ts(max) to TL - Ramp-up Rate
Reflow
FIG.5: Reflow condition
-Temperature Min (Ts(min))
3℃/sec. Max
3℃/sec. Max
-Temperature(TL)(Liquid us)
+217℃
-Temperature(tL)
60-150 secs.
Peak Temp (Tp)
+260(+0/-5)℃
Time within 5℃ of actual Peak Temp (tp)
30 secs. Max
Ramp-down Rate
6℃/sec. Max
Time 25℃ to Peak Temp (TP)
8 min. Max
Do not exceed
+260℃
Rev.A_Feb,2018
tp
Critical Zone
TL to TP
Ramp-up
tL
TS(max)
-5-
Temperature
Pre
Pb-Free assembly
(see FIG.5)
Ramp-down
Preheat
TS(min)
25
ts
time to peak temperatue
(t 25℃ to peak)
Time
www.wpmtek.com
SMCJ Series
Integrated in
OVP&OCP products
provider
1500W Transient Voltage Suppressor
Package Mechanical Data
Tape & Reel Specification - SMC
Ref.
Dimensions (mm)
A
6.27±0.20
B
8.30±0.20
d
φ1.50±0.10
D
φ330.00±2.00
D2
φ13.50±0.20
E
1.75±0.10
F
7.50±0.10
P
8.00±0.10
P0
4.00±0.10
P1
2.00±0.10
W
16.00±0.20
W1
20.00±2.0
Contact Information
WPMTEK Incorporated Limited
Floor 1 Building 4#, Binxianghua Industry Park, No.7,
Huada Road, Hualian Community, Longhua New District, Shenzhen
TEL:86755-29308003
FAX:86755-23739900
wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability
arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special,
consequential or incidental damages.
Rev.A_Feb,2018
-6-
www.wpmtek.com
