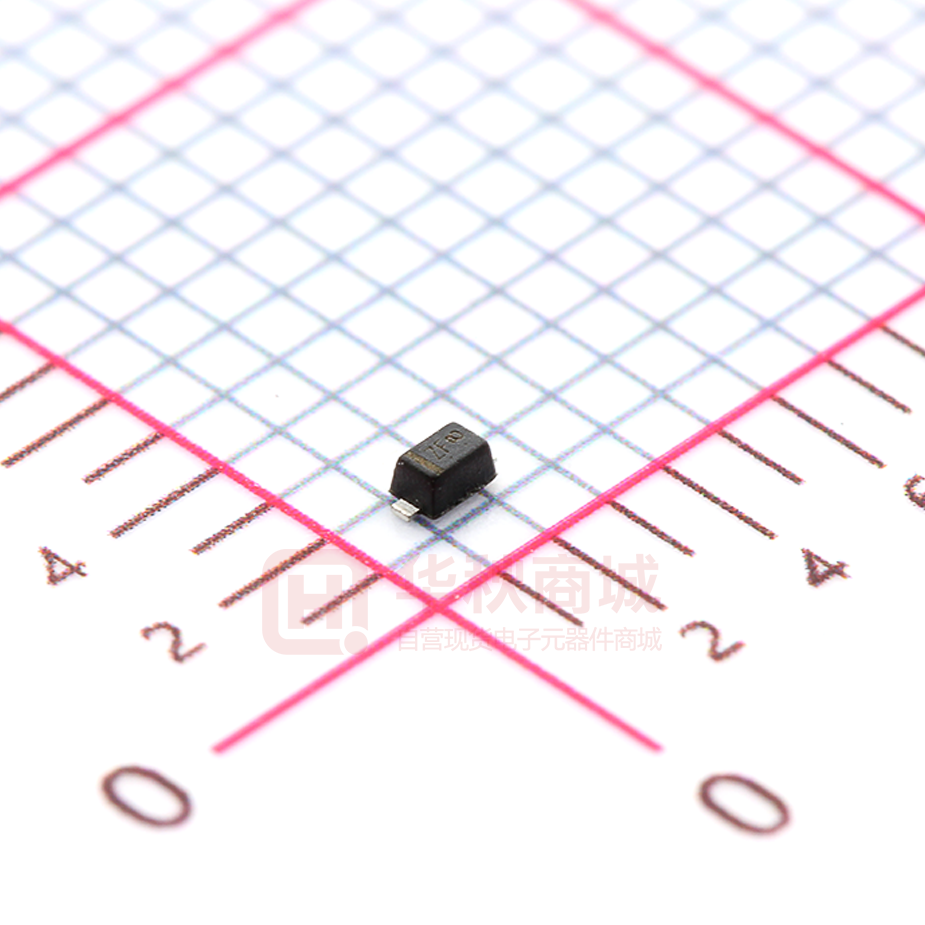

ESD5Z5V

ESD5ZXXV Integrated in OVP&OCP products provider 3.3V~36V 1-Line Uni-directionalTVS Diode Description MechanicalCharacteristics The ESD5ZXXV is an uni-directional TVS diode, utilizing  Package: SOD-523 leading monolithic silicon technology to provide fast  Lead Finish: Matte Tin response time and ultra low ESD clamping voltage, making  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below this device an ideal solution for protecting voltage sensitive data and power line. The ESD5ZXXV complies with the IEC 61000-4-2 (ESD) standard with ± 15kV air and ± 8kV contact discharge. It is assembled into an ultra-small SOD-523 lead-free package. The small size and high ESD surge protection make ESD5ZXXV an ideal choice to Applications protect cell phone, digital cameras, audio players and many other portable applications. Features  Protects one data line  Ultra low leakage: nA level  Stand−off Voltage: 3.3 V ~36V  Ultra low clamping voltage  Response Time is Typically < 1ns  Complies with followingstandards:  Cellular Handsets and Accessories  Personal Digital Assistants  Notebooks and Handhelds  Portable Instrumentation  Digital Cameras  Peripherals  Audio Players  Keypads, Side Keys, LCD Displays  – IEC 61000-4-2 (ESD) immunitytest Air discharge: ±30kV Markinginformation Contact discharge: ±30kV  RoHS Compliant Dimensions& Symbol（Unit: mm Max） Bar denotes cathode Details marking code reference customer approval list OrderingInformation PartNumber ESD5Z3V3 ESD5Z5V ESD5Z7V ESD5Z12V ESD5Z24V ESD5Z36V SOD523(TOP Viev) Packaging 3000/Tape&Reel 3000/Tape&Reel 3000/Tape&Reel 3000/Tape&Reel 3000/Tape&Reel 3000/Tape&Reel ReelSize 7inch 7inch 7inch 7inch 7inch 7inch Package DimensionsCircuit and Pin Schematic Rev.A_Aug,2016 -1- www.wpmtek.com ESD5ZXXV Integrated in OVP&OCP products provider 3.3V~36V 1-Line Uni-directionalTVS Diode Absolute Maximum Ratings (TA=25°C unless otherwisespecified) ESD5Z3V3 Parameter Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 150 W Peak Pulse Current(8/20µs) Ipp 11 A ±30 ESD per IEC 61000−4−2(Air) VESD ESD per IEC 61000−4−2(Contact) Operating TemperatureRange ±30 kV TJ −55 to+125 °C Tstg −55 to+150 °C Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 170 W Peak Pulse Current(8/20µs) Ipp 9.4 A Storage TemperatureRange ESD5Z5V Parameter ±30 ESD per IEC 61000−4−2(Air) VESD ESD per IEC 61000−4−2(Contact) Operating TemperatureRange ±30 kV TJ −55 to+125 °C Tstg −55 to+150 °C Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 200 W Peak Pulse Current(8/20µs) Ipp 8.8 A Storage TemperatureRange ESD5Z7V Parameter ±30 ESD per IEC 61000−4−2(Air) VESD ESD per IEC 61000−4−2(Contact) Operating TemperatureRange Storage TemperatureRange Rev.A_Aug,2016 -2- ±30 kV TJ −55 to+125 °C Tstg −55 to+150 °C www.wpmtek.com ESD5ZXXV Integrated in OVP&OCP products provider 3.3V~36V 1-Line Uni-directionalTVS Diode ESD5Z12V Parameter Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 170 W Peak Pulse Current(8/20µs) Ipp 6 A ±30 ESD per IEC 61000−4−2(Air) VESD ESD per IEC 61000−4−2(Contact) Operating TemperatureRange ±30 kV TJ −55 to+125 °C Tstg −55 to+150 °C Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 120 W Peak Pulse Current(8/20µs) Ipp 3 A Storage TemperatureRange ESD5Z24V Parameter ±25 ESD per IEC 61000−4−2(Air) VESD ESD per IEC 61000−4−2(Contact) Operating TemperatureRange ±20 kV TJ −55 to+125 °C Tstg −55 to+150 °C Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 120 W Peak Pulse Current(8/20µs) Ipp 2 A Storage TemperatureRange ESD5Z36V Parameter ±25 ESD per IEC 61000−4−2(Air) VESD ESD per IEC 61000−4−2(Contact) Operating TemperatureRange Storage TemperatureRange Rev.A_Aug,2016 -3- ±20 kV TJ −55 to+125 °C Tstg −55 to+150 °C www.wpmtek.com ESD5ZXXV Integrated in OVP&OCP products provider 3.3V~36V 1-Line Uni-directionalTVS Diode Electrical Characteristics (TA=25°C unless otherwisespecified) ESD5Z3V3 Parameter Reverse WorkingVoltage Symbol Min Typ VRWM BreakdownVoltage VBR Reverse LeakageCurrent IR ClampingVoltage VC ClampingVoltage VC JunctionCapacitance CJ Max Unit 3.3 V 5 0.9 7.5 14 105 TestCondition V IT = 1mA uA VRWM = 3.3V V IPP = 1A (8 x 20uS pulse) V IPP = 11.2A (8 x 20uS pulse) pF VR = 0V, f = 1MHz ESD5Z5V Parameter Reverse WorkingVoltage Symbol Min Typ VRWM BreakdownVoltage VBR Reverse LeakageCurrent IR ClampingVoltage VC ClampingVoltage VC JunctionCapacitance CJ Max Unit 5 V 6.2 TestCondition V IT = 1mA uA VRWM = 5V V IPP = 1A (8 x 20uS pulse) 18.6 V IPP = 9.4A (8 x 20uS pulse) 80 pF Max Unit 7 V 0.08 9.8 VR = 0V, f = 1MHz ESD5Z7V Parameter Reverse WorkingVoltage Symbol Typ VRWM BreakdownVoltage VBR Reverse LeakageCurrent IR ClampingVoltage VC ClampingVoltage VC JunctionCapacitance CJ Rev.A_Aug,2016 Min 7.5 0.03 13.5 22.7 65 -4- TestCondition V IT = 1mA uA VRWM = 7V V IPP = 1A (8 x 20uS pulse) V IPP = 8.8A (8 x 20uS pulse) pF VR = 0V, f = 1MHz www.wpmtek.com ESD5ZXXV Integrated in OVP&OCP products provider 3.3V~36V 1-Line Uni-directionalTVS Diode ESD5Z12V Parameter Reverse WorkingVoltage Symbol Min Typ VRWM BreakdownVoltage VBR Reverse LeakageCurrent IR ClampingVoltage VC ClampingVoltage VC JunctionCapacitance CJ Max Unit 12 V 14.1 0.03 19 29 35 TestCondition V IT = 1mA uA VRWM =12V V IPP = 1A (8 x 20uS pulse) V pF IPP = 6A (8 x 20uS pulse) VR = 0V, f = 1MHz ESD5Z24V Parameter Reverse WorkingVoltage Symbol Min Typ VRWM BreakdownVoltage VBR Reverse LeakageCurrent IR ClampingVoltage VC ClampingVoltage VC JunctionCapacitance CJ Max Unit 24 V 26.7 5 35 40 50 TestCondition V IT = 1mA uA VRWM = 24V V IPP = 1A (8 x 20uS pulse) V IPP = 3A (8 x 20uS pulse) pF VR = 0V, f = 1MHz ESD5Z36V Parameter Reverse WorkingVoltage Symbol Typ VRWM BreakdownVoltage VBR Reverse LeakageCurrent IR ClampingVoltage VC JunctionCapacitance CJ Rev.A_Aug,2016 Min Max Unit 36 V 40 TestCondition V IT = 1mA uA VRWM = 36V 55 V IPP = 1A (8 x 20uS pulse) 28 pF VR = 0V, f = 1MHz 5 -5- www.wpmtek.com ESD5ZXXV Integrated in OVP&OCP products provider 3.3V~36V 1-Line Uni-directionalTVS Diode Package mechanical data Suggested LandPattern Contactinformation WPMTEK Incorporated Limited Floor 1 Building 4#, Binxianghua Industry Park, No.7, Huada Road, Hualian Community, Longhua New District, Shenzhen TEL：86755-29308003 wpmtek Incorporated FAX：86755-23739900 Limited(WPM)reservestherighttomakechangestotheproductspecificationanddatainthisdocumentwithoutnotice.WPMmakesno warranty,representationorguaranteeregardingthesuitabilityofitsproductsforanyparticularpurpose,nordoesWPMassumeanyliabilityarisingfromtheapplicatio Rev.A_Aug,2016 -8- www.wpmtek.com ESD5ZXXV Integrated in OVP&OCP products provider 3.3V~36V 1-Line Uni-directionalTVS Diode noruseofanyproductsorcircuits,andspecificallydis-claimsanyandallliability,includingwithoutlimitationspecial,consequentialorincidentaldamages. Rev.A_Aug,2016 -9- www.wpmtek.com
