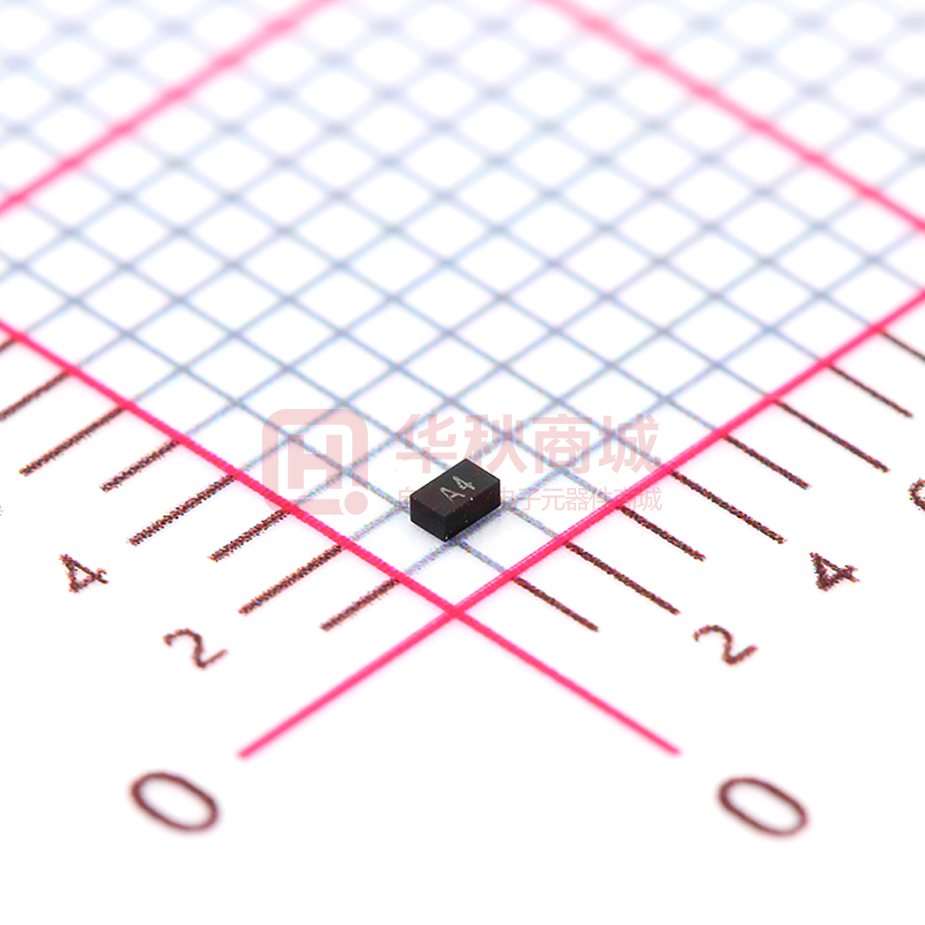

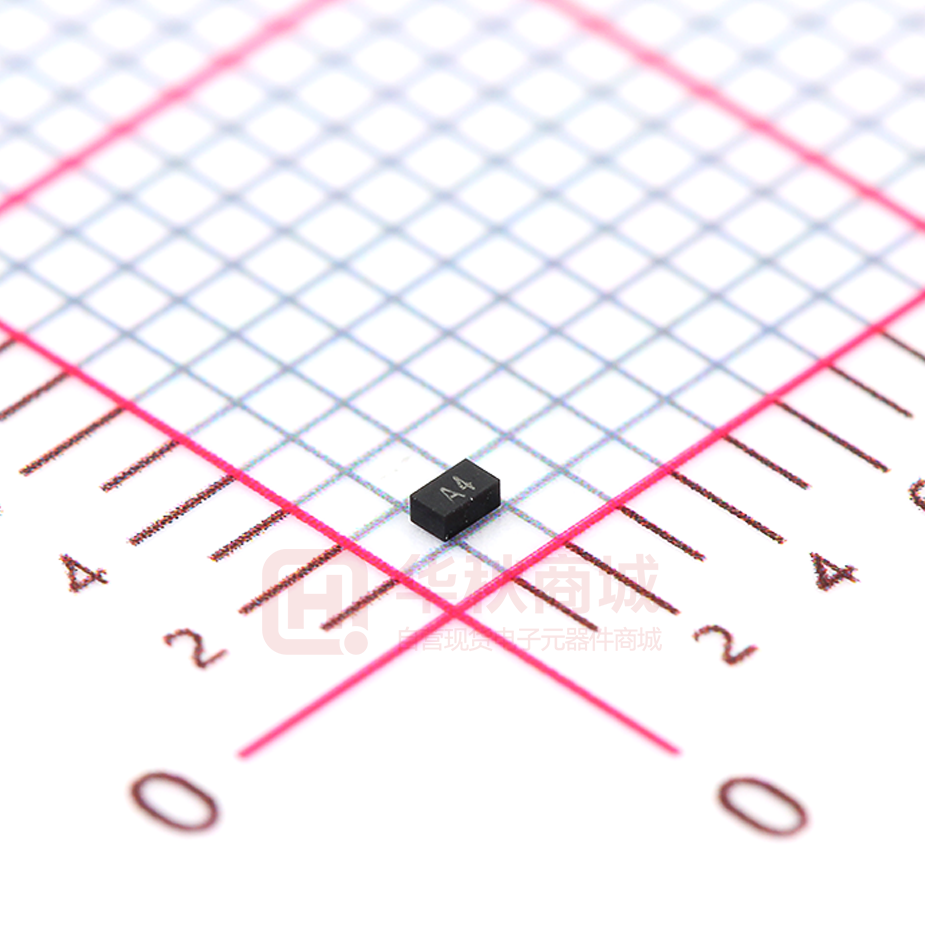

CLAMP2411P Integrated in OVP&OCP products provider 1-Line Bi-directional TVS Diode Description Mechanical Characteristics The CLAMP2411P is a 24V bi-directional TVS diode, n Package: DFN1006-2 (1.0×0.6×0.5mm) n Case Material: “Green” Molding Compound. n Moisture Sensitivity: Level 3 per J-STD-020 sensitive data and power line. The CLAMP2411P complies n Terminal Connections: See Diagram Below with the IEC 61000-4-2 (ESD) with ±30 kV air and ±25 kV n Marking Information: See Below utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage contact discharge. It is assembled into an ultra-small 1.0x0.6x0.5mm lead-free DFN package. The small size Applications and high ESD surge protection make AU2411P1 an ideal choice to protect cell phone, digital cameras, audio play- n Cellular Handsets and Accessories ers and many other portable applications. n Personal Digital Assistants n Notebooks and Handhelds Features n Ultra small package: 1.0x0.6x0.5mm n Portable Instrumentation n n Digital Cameras n Peripherals n Audio Players n Protects one data or power line Ultra low leakage: nA level Working voltage: 24V Low clamping voltage 2-pin leadless package n Complies with following standards: n n n Marking information – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV – IEC61000-4-5 (Lightning) 5A (8/20µs) n RoHS Compliant Dimensions & Symbol（Unit: mm Max） Details marking code reference specification of approval list Ordering Information Part Number CLAMP2411P Rev.B_Aug,2018 -1- Packaging 10000/Tape & Reel Reel Size 7 inch www.wpmtek.com CLAMP2411P Integrated in OVP&OCP products provider 1-Line Bi-directional TVS Diode Absolute Maximum Ratings (TA=25ºC, RH=45%-75%, unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 300 W Peak Pulse Current (8/20µs) Ipp 5 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range kV ±25 TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25℃) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 24 V 27 Test Condition V IT = 1mA Reverse Leakage Current IR 0.2 μA VRWM = 24V Clamping Voltage VC 40 V IPP = 1A (8 x 20µs pulse) Junction Capacitance CJ 20 pF VR = 0V, f = 1MHz Rev.B_Aug,2018 -2- www.wpmtek.com CLAMP2411P Integrated in OVP&OCP products provider 1-Line Bi-directional TVS Diode Typical Performance Characteristics (TA=25°C unless otherwise Specified) Rev.B_Aug,2018 -3- www.wpmtek.com CLAMP2411P Integrated in OVP&OCP products provider 1-Line Bi-directional TVS Diode Soldering Parameters Reflow Condition Pre Heat Pb-Free assembly -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ Rev.B_Aug,2018 -4- www.wpmtek.com CLAMP2411P Integrated in OVP&OCP products provider 1-Line Bi-directional TVS Diode Package Mechanical Data Suggested Land Pattern DIMENSIONS SYM MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 Contact Information WPMTEK Incorporated Limited Room 207,2nd Floor, Block 3,Minxing lndustry Park, Minzhi, Longhua New District, Shenzhen, PRC. TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.B_Aug,2018 -5- www.wpmtek.com
