CLAMP0504F

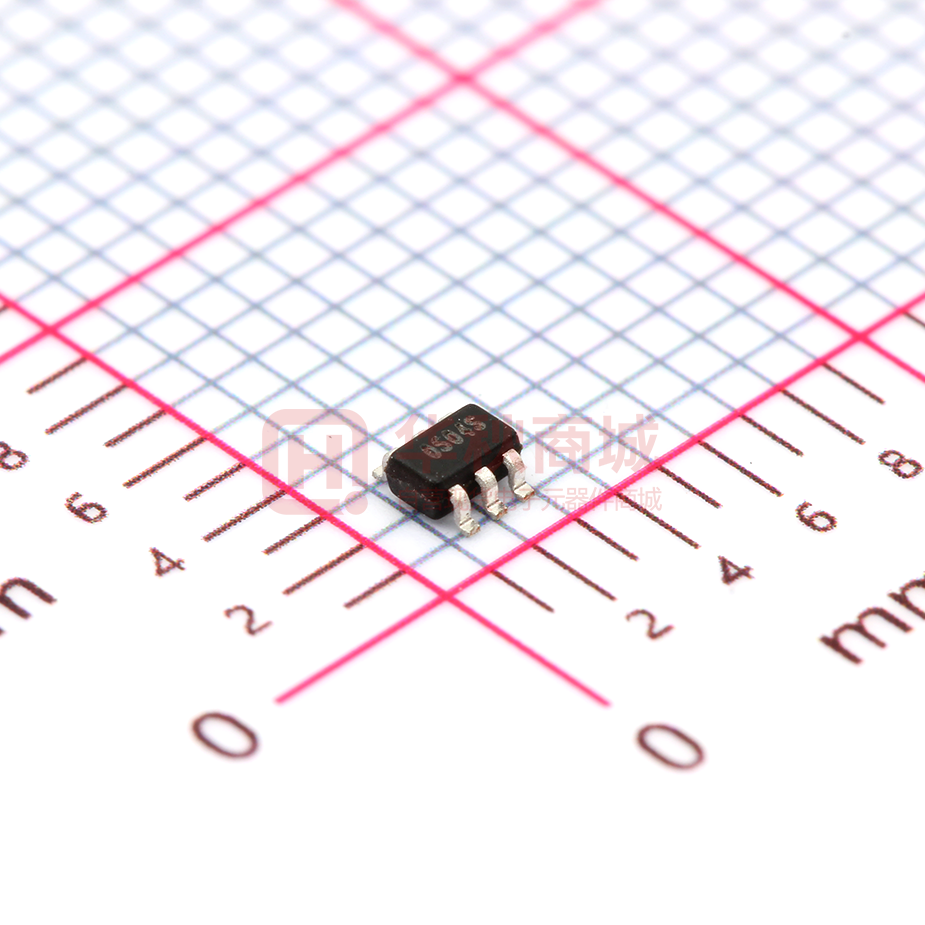

CLAMP0504F Integrated in OVP&OCP products provider 4-Line Ultra Low Capacitance TVS Diode Array Description Mechanical Characteristics The CLAMP0504F is an ultra low capacitance TVS array,  Package: SOT-363 (SC-70)  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  Marking Information: See Below utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines. The CLAMP0504F has an ultra-low capacitance with a typical value at 0.3pF, and complies with the IEC 61000-4-2 (ESD) standard with ±30V air and ±30kV contact discharge. It is assembled into a 6-pin Applications lead-free SC-70 package. The combination of small size, ultra low capacitance, and high ESD surge capability make it ideal for use in applications such as USB 3.0, multimedia,  USB 2.0 and USB 3.0 Ports and other high speed ports.  USB OTG  Digital Video Interface (DVI)  Monitor and Flat Panel Displays Features  Ultra low capacitance: 0.3pF typical (I/O to I/O)  PCI Express and Serial SATA Ports  Ultra low leakage: nA level  Gigabit Ethernet  Working voltage: 5V Low clamping voltage   IEEE 1394 Firewire Ports  Up to 4 data lines and one power line protects  Consumer products (STB, DVD, DSC, DVC...)  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Marking information Air discharge: ±30kV Contact discharge: ±25kV – IEC61000-4-5 (Lightning) 5A (8/20µs)  RoHS Compliant Dimensions & Symbol（Unit: mm Max） Dot denotes Pin1 Details marking code reference customer approval list Ordering Information Part Number CLAMP0504F Packaging 3000/Tape & Reel Reel Size 7 inch Circuit Diagram & Pin Schematic Rev.A_Aug,2016 -1- www.wpmtek.com CLAMP0504F Integrated in OVP&OCP products provider 4-Line Ultra Low Capacitance TVS Diode Array Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 75 W Peak Pulse Current (8/20µs) Ipp 5 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range kV ±25 TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max 5 6 Unit Test Condition V V IT = 1mA µA VRWM = 5.0V Reverse Leakage Current IR Clamping Voltage VC 10 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 15 V IPP = 5A (8 x 20µs pulse) Junction Capacitance CJ 0.4 pF Junction Capacitance CJ 0.8 pF 0.5 0.3 VR = 0V, f = 1MHz, between I/O pins VR = 0V, f = 1MHz, any I/O pin to ground Note 1: I/O pins are Pin 1, 3, 4 and 6 Rev.A_Aug,2016 -2- www.wpmtek.com CLAMP0504F Integrated in OVP&OCP products provider 4-Line Ultra Low Capacitance TVS Diode Array Typical Performance Characteristics (TA=25°C unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Clamping Voltage vs. Peak Pulse Current Power Derating Curve Note：Data is taken with a 10x attenuator ESD Clamping Voltage 8 X 20μs Pulse Waveform Rev.A_Aug,2016 8 kV Contact per IEC61000−4−2 -3- www.wpmtek.com CLAMP0504F Integrated in OVP&OCP products provider 4-Line Ultra Low Capacitance TVS Diode Array Soldering parameters Pb-Free assembly (see FIG.2) Reflow Condition Pre Heat -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ Rev.A_Aug,2016 -4- www.wpmtek.com CLAMP0504F Integrated in OVP&OCP products provider 4-Line Ultra Low Capacitance TVS Diode Array Package mechanical data Suggested Land Pattern Contact information WPMTEK Incorporated Limited Floor 1 Building 4#, Binxianghua Industry Park, No.7, Huada Road, Hualian Community, Longhua New District, Shenzhen TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.A_Aug,2016 -5- www.wpmtek.com
