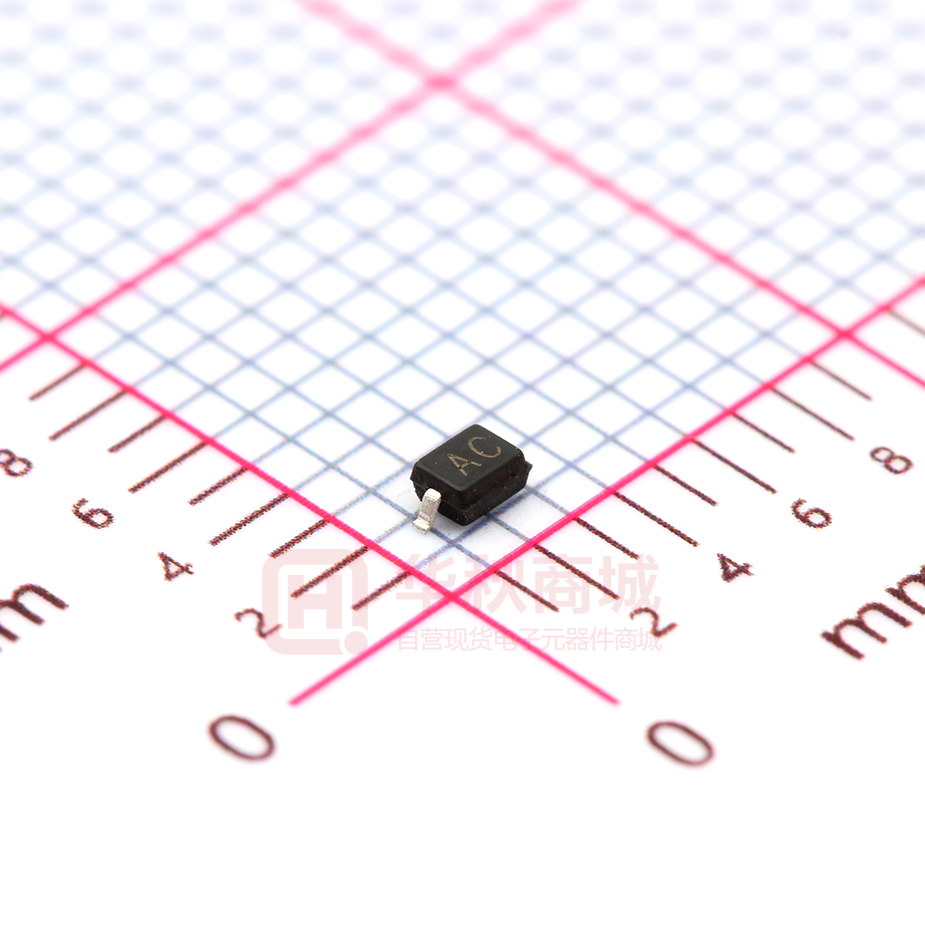

WPE5V0D3BL2

WPE5V0xxBL2 Low capacitance bidirectional TVS Diodes for ESD Protection WPE5V0D3BL2；WPE5V0D5BL2；WPE5V0N9BL2 Low capacitance bidirectional TVS Diodes for ESD Protection The WPE5V0xxBL2 Series are low capacitance bidirectional TVS Diodes designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium. This series has been specifically designed to protect sensitive components which are connected to power、data and transmission lines from overvoltage caused by ESD(electrostatic discharge),,and EFT (electrical fast transients). Features Main applications  Peak Power Dissipation − 40 W (8 x 20 us  Cellular handsets AND accessories Waveform)  Portable instrumentation  Replacement for MLV (0805)  Peripherals  Protects One Power or I/O Port  Networking and Telecom  Low Clamping Voltage  Serial and Parallel Ports  Low Leakage  Notebooks, Desktops, Servers  Low Capacitance:3.5pf Typ.  Projection TV  Stand-off Voltage: 5.0 V  Response Time is < 1 ns Protection solution to meet  Meets MSL 1 Requirements  IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)  Solid-state Punch-Through TVS Process  IEC61000-4-4 (EFT) 40A (5/50ns) technology  ROHS compliant  WeiPan technology Ordering Information Device Package Qty per Reel Reel Size WPE5V0D3BL2 SOD-323 3000 7 Inch WPE5V0D5BL2 SOD-523 3000 7 Inch WPE5V0N9BL2 DFN1006 5000/10000 7 Inch Rev.A2_Aug_2018 -1- www.wpmtek.com WPE5V0xxBL2 Low capacitance bidirectional TVS Diodes for ESD Protection Maximum ratings (Tamb=25℃ Unless Otherwise Specified) Parameter Peak Pulse Power (tp=8/20μs waveform) ESD Rating per IEC61000-4-2： Symbol Value Unit PPPP 40 Watts Contact 8 Air 15 KV Lead Soldering Temperature TL 260 (10 sec.) ℃ Operating Temperature Range TJ -55 ~ 150 ℃ TSTG -55 ~ 150 ℃ TL 260 ℃ Storage Temperature Range Lead Solder Temperature − Maximum (10 Second Duration) Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,damage may occur and reliability may be affected. *Other voltages may be available upon request. 1. Nonrepetitive current pulse, per Figure 1. Electrical characteristics ( Tamb=25℃ Unless Otherwise Specified) Symbol Parameter Conditions Min. Typ. Max. Units VRWM Reverse Working Voltage 5.00 V VBR Reverse Breakdown Voltage IT = 1mA, IR Reverse Leakage Current VRWM = 5V, 0.01 1.00 μA VC Clamping Voltage IPP = 1A, tp =8/20μs, 9.50 10.5 V IPP = 3A, tp =8/20μs, 11.5 12.5 V CJ Junction Capacitance VR = 0V, f = 1MHz, 3.50 5.00 pF 5.6 V I Symbol VRWM IPP Parameter Working Peak Reverse Voltage VBR Breakdown Voltage @ IT VC Clamping Voltage @ IPP IT Test Current IRM Leakage current at VRWM IPP Peak pulse current CO Off-state Capacitance CJ Junction Capacitance Rev.A2_Aug_2018 VC VBR VRWM IT IR IR IT VRWM IPP -2- www.wpmtek.com VBR VC V WPE5V0xxBL2 Low capacitance bidirectional TVS Diodes for ESD Protection Typical electrical characterist applications 10 Waveform Parameters: tr=8us td=20us Peak Pulse Power-P PK（KW) PP 110 100 90 80 70 60 50 40 30 20 10 0 td=IPP/2 0 5 10 15 20 25 30 0.1 0.01 0.1 1 10 100 1000 Pulse Duration-tp（us) Time (us) Non-Repetitive Peak Pulse Power vs. Pulse Time Pulse Waveform % of Rated Power or Ipp 1 110 100 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 150 Ambient Temperature-TA ESD Clamping Voltage Screenshot Positive 8 kV Contact per IEC61000−4−2 Power Derating Curve Rev.A2_Aug_2018 -3- www.wpmtek.com WPE5V0xxBL2 Low capacitance bidirectional TVS Diodes for ESD Protection Typical applications I/O Line WPE5V0xxBL2 I/O Line Between I/O Line Protection I/O Line Protected corcuit I/O Line I/O Line I/O Line WPE5V0xxBL2 I/O Line Protection Rev.A2_Aug_2018 -4- www.wpmtek.com WPE5V0xxBL2 Low capacitance bidirectional TVS Diodes for ESD Protection Package Information SOD-323 Mechanical Data Case: SOD-323 Case Material: Molded Plastic. UL Flammability K A Millimeters Dim D 2 1 A B E J Min Max Min Max 1.60 1.80 0.063 0.071 B 1.2 1.40 0.047 0.055 C 0.80 0.90 0.031 0.035 D 0.25 0.35 0.010 0.014 0.15REF E C Inches 0.006REF H 0 0.10 0 0.004 J 0.08 0.15 0.003 0.006 K 2.50 2.70 0.098 0.106 H SOD-123 Recommended Pad outline 0.7 2.15 0.7 SOD-323 Reel Dim E P0 K P2 D W F D1 A0 T B0 B1 K0 P1 Package Pocket Size Tape B0×A0×K0(mm) Width Chip Size Reel Diameter Quantity Per Reel P0 P1 4mm 4mm SOD-323 2.60×1.40×1.05 3.30×1.50×1.25 8mm 178mm(7") 3000 D0 D1 E F K T W 1.5mm 0.5mm 1.75mm 3.5mm 0.95mm 0.2mm 8mm Rev.A2_Aug_2018 -5- www.wpmtek.com WPE5V0xxBL2 Low capacitance bidirectional TVS Diodes for ESD Protection Package Information SOD-523 Mechanical Data Case: SOD-523 Case Material: Molded Plastic. UL Flammability A Millimeters Inches Dim Min Max Min Max A 1.10 1.30 0.043 0.051 B 0.75 0.85 0.03 0.033 C 0.51 0.70 0.02 0.028 D 0.25 0.35 0.01 0.014 J 0.08 0.15 0.003 0.006 K 0.15 0.25 0.006 0.010 S 1.50 1.70 0.059 0.067 B D C J K S Recommended Pad outline 0.70 0.60 1.42 SOD-523 Reel Dim E P0 K P2 D W F D1 A0 T B0 B1 K0 P1 Package Pocket Size Tape B0×A0×K0(mm) Width Chip Size Reel Diameter Quantity Per Reel P0 P1 4mm 4mm SOD-523 1.70×0.80×0.70 1.90×0.90×0.80 8mm 178mm(7") 3000 D0 D1 E F K T W 1.5mm 1.0mm 1.75mm 3.5mm 0.75mm 0.2mm 8mm Rev.A2_Aug_2018 -6- www.wpmtek.com WPE5V0xxBL2 Low capacitance bidirectional TVS Diodes for ESD Protection Package Information DFN1006 Mechanical Data Case:DFN1006 Case Material: Molded Plastic. UL Flammability D Millimeters b Inches DIM Max Min Max A 0.30 0.50 0.012 0.020 A1 0.00 0.05 0.000 0.002 D 0.55 0.65 0.022 0.026 E 0.95 1.05 0.037 0.041 b 0.25 0.60 0.010 0.024 L e E L L1 Min ID PIN 1 L1 b 1 脚标识 0.65TYP 0.026TYP A1 A e L L1 0.60mm Recommended Pad outline 0.15 0.35 0.006 0.05REF 0.014 0.002REF 0.85mm 0.55mm DFN1006 Reel Dim P0 E K P2 D W F D1 A0 T B0 B1 K0 P1 Chip Size Pocket Size Tape （mm） B0×A0×K0(mm) Width DFN1006 1.0×0.6×0.50 1.10×0.70×0.60 D0 D1 1.5mm 0.5mm Package Rev.A2_Aug_2018 Reel Diameter Quantity Per Reel P0 P1 8mm 178mm(7") 5000/10000 4mm 4/2mm E F K T W 1.75mm 3.5mm 0.55mm 0.2mm 8mm -7- www.wpmtek.com
