WPE0501D5

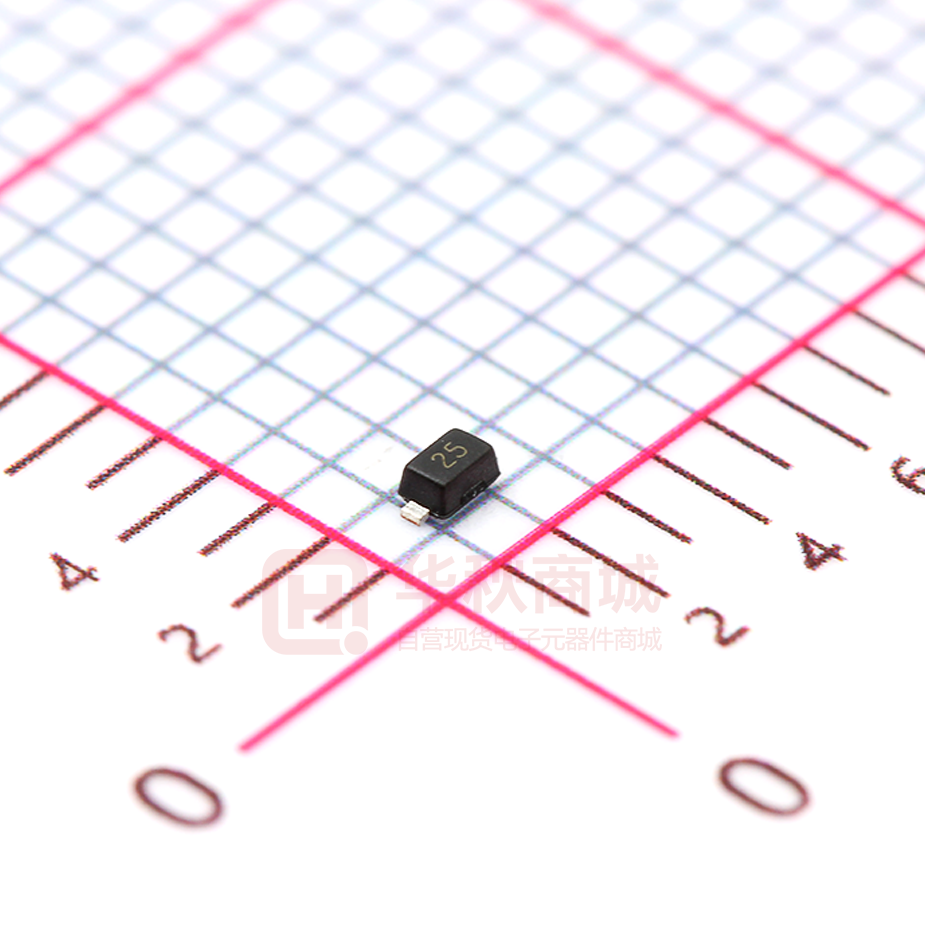

WPE0501D5 Integrated in OVP&OCP products provider Ultra Low Capacitance Bi-directional TVS Diode Description Mechanical Characteristics The WPE0501D5 is a bi-directional TVS diode, utilizing  Package: SOD-523  Lead Finish: Matte Tin device an ideal solution for protecting voltage sensitive  Case Material: “Green” Molding Compound. high-speed data lines. The WPE0501D5 has an ultra-low  UL Flammability Classification Rating 94V-0 capacitance with a typical value at 0.3pF, and complies  Moisture Sensitivity: Level 3 per J-STD-020 with the IEC 61000-4-2 (ESD) standard with ±25kV air and  ±22kV contact discharge. It is assembled into a SOD- 523 Terminal Connections: See Diagram Below  Marking Information: See Below leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this leadfree package. The small size, ultra-low capacitance and high ESD surge protection make WPE0501D5 an Applications ideal choice to protect cell phone, digital video interfaces and other high speed ports. Features  Cellular Handsets and Accessories  Display Ports  MDDI Ports  Ultra low capacitance: 0.3pF typical  USB 2.0 and USB 3.0 Interfaces  Ultra low leakage: nA level  PCI Express and Serial SATA Ports  Ultra low operating voltage: 5V  Ultra low clamping voltage  Complies with following standards: Marking information – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±22kV  IEC61000-4-5 (Lightning) 4A (8/20μs)  RoHS Compliant Details marking code reference customer approval list Ordering Information Dimensions & Symbol（Unit: mm Max） Rev.A_Aug,2016 Part Number WPE0501D5 -1- Packaging 3000/Tape & Reel Reel Size 7 inch www.wpmtek.com WPE0501D5 Integrated in OVP&OCP products provider Ultra Low Capacitance Bi-directional TVS Diode Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 100 W Peak Pulse Current (8/20µs) Ipp 4 A ESD per IEC 61000−4−2 (Air) ±25 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range kV ±22 TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Reverse Working Voltage Symbol Min Typ VRWM 6.5 Max Unit Test Condition 5 V 9.5 V IT = 1mA Breakdown Voltage VBR Reverse Leakage Current IR 0.2 uA VRWM = 5V Clamping Voltage VC 12 V IPP = 1A (8 x 20uS pulse) Clamping Voltage VC 25 V IPP = 5A (8 x 20uS pulse) Junction Capacitance CJ 0.5 pF Rev.A_Aug,2016 0.3 -2- VR = 0V, f = 1MHz www.wpmtek.com WPE0501D5 Integrated in OVP&OCP products provider Ultra Low Capacitance Bi-directional TVS Diode Typical Performance Characteristics (TA=25°C unless otherwise Specified) Junction Capacitance vs. Reverse Voltage Peak Pulse Power vs. Pulse Time Clamping Voltage vs. Peak Pulse Current Power Derating Curve Note：Data is taken with a 10x attenuator ESD Clamping Voltage 8 X 20μs Pulse Waveform 8 kV Contact per IEC61000−4−2 Rev.A_Aug,2016 -3- www.wpmtek.com WPE0501D5 Integrated in OVP&OCP products provider Ultra Low Capacitance Bi-directional TVS Diode Soldering parameters Pb-Free assembly (see FIG.2) Reflow Condition Pre Heat -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ Rev.A_Aug,2016 -4- www.wpmtek.com WPE0501D5 Integrated in OVP&OCP products provider Ultra Low Capacitance Bi-directional TVS Diode Package mechanical data Suggested Land Pattern Contact information WPMTEK Incorporated Limited Floor 1 Building 4#, Binxianghua Industry Park, No.7, Huada Road, Hualian Community, Longhua New District, Shenzhen TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.A_Aug,2016 -5- www.wpmtek.com
