WPE0502P6
Integrated in
OVP&OCP products
provider
2-Line Ultra Low Capacitance TVS Diode
Description
Mechanical Characteristics
The WPE0502P6 is an uni-directional TVS diode array,
utilizing leading monolithic silicon technology to provide

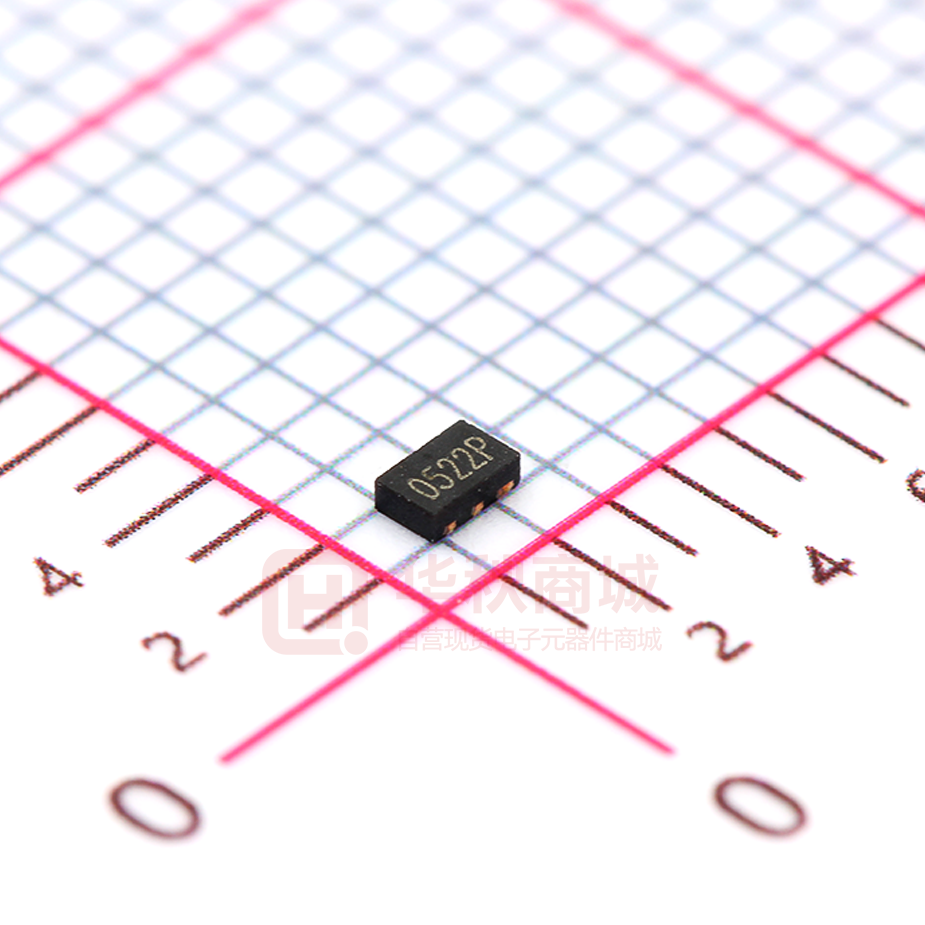

Package: DFN1610-6
Lead Finish: NiPdAu
Case Material: “Green” Molding Compound.
high-speed data lines. The WPE0502P6 has an ultralow
UL Flammability Classification Rating 94V-0
capacitance with a typical value at 0.6pF, and complies
Moisture Sensitivity: Level 3 per J-STD-020
with the IEC 61000-4-2 (ESD) standard with ±25kV air and
Terminal Connections: See Diagram Below
±20kV contact discharge. It is assembled into an
Marking Information: See Below
fast response time and low ESD clamping voltage, making
this device an ideal solution for protecting voltage sensitive
ultra-small 1.6x1.0x0.75mm lead-free DFN package. The
small size, ultra-low capacitance and high ESD surge
protection make WPE0502P6 an ideal choice to protect
Applications
cell phone, digital video interfaces and other high speed
ports.
Features
Ultra small package: 1.6x1.0x0.75mm
Ultra low capacitance: 0.6pF typical
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
6-pin leadless package
Protects two lines
Complies with following standards:
Cellular Handsets and Accessories
USB Ports
Video Interface
MDDI Ports
Marking information
– IEC 61000-4-2 (ESD) immunity test
Air discharge: ±25kV
Contact discharge: ±20kV
– IEC61000-4-4 (EFT) 40A (5/50ns)
Dot denotes PIn1
– IEC61000-4-5 (Lightning) 5A (8/20μs)
Details marking code reference customer approval list
RoHS Compliant
Ordering Information
Dimensions & Symbol(Unit: mm Max)
Part Number
WPE0502p6
Rev.A_Aug,2016
-1-
Packaging
3000/Tape & Reel
Reel Size
7 inch
www.wpmtek.com
WPE0502P6
Integrated in
OVP&OCP products
provider
2-Line Ultra Low Capacitance TVS Diode
Absolute maximum ratings (TA=25ºC, RH=45%-75%, unless otherwise noted)
Parameter
Symbol
Value
Unit
Peak Pulse Power (8/20µs)
Ppk
125
W
Peak Pulse Current (8/20µs)
IPP
5
A
ESD per IEC 61000−4−2 (Air)
±25
VESD
ESD per IEC 61000−4−2 (Contact)
Operating Temperature Range
Storage Temperature Range
kV
±20
TJ
−55 to +125
°C
Tstg
−55 to +150
°C
Electrical characteristics (TA=25℃)
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
Max
5
6
Unit
Test Condition
V
V
IT = 1mA
Reverse Leakage Current
IR
0.5
µA
VRWM = 5V
Clamping Voltage
VC
15
V
IPP = 1A (8 x 20µs pulse)
Clamping Voltage
VC
25
V
IPP = 12A (8 x 20µs pulse)
Junction Capacitance
CJ
1.0
pF
VR = 0V, f = 1MHz
Rev.A_Aug,2016
0.6
-2-
www.wpmtek.com
WPE0502P6
Integrated in
OVP&OCP products
provider
2-Line Ultra Low Capacitance TVS Diode
Typical Performance Characteristics (TA=25°C unless otherwise Specified)
Rev.A_Aug,2016
-3-
www.wpmtek.com
WPE0502P6
Integrated in
OVP&OCP products
provider
2-Line Ultra Low Capacitance TVS Diode
Soldering parameters
Pb-Free assembly
(see FIG.2)
Reflow Condition
Pre Heat
-Temperature Min (Ts(min))
+150℃
-Temperature Max(Ts(max))
+200℃
-Time (Min to Max) (ts)
60-180 secs.
Average ramp up rate (Liquid us Temp (TL) to peak)
3℃/sec. Max
Ts(max) to TL - Ramp-up Rate
3℃/sec. Max
Reflow
-Temperature(TL) (Liquid us)
+217℃
-Temperature(tL)
60-150 secs.
Peak Temp (Tp)
+260(+0/-5)℃
Time within 5℃ of actual Peak Temp (tp)
30 secs. Max
Ramp-down Rate
6℃/sec. Max
Time 25℃ to Peak Temp (TP)
8 min. Max
Do not exceed
+260℃
Rev.A_Aug,2016
-4-
www.wpmtek.com
WPE0502P6
Integrated in
OVP&OCP products
provider
2-Line Ultra Low Capacitance TVS Diode
Package mechanical data
Suggested Land Pattern
Rev.A_Aug,2016
-5-
www.wpmtek.com
WPE0502P6
Integrated in
OVP&OCP products
provider
2-Line Ultra Low Capacitance TVS Diode
Contact information
WPMTEK Incorporated Limited
Floor 1 Building 4#, Binxianghua Industry Park, No.7,
Huada Road, Hualian Community, Longhua New District, Shenzhen
TEL:86755-29308003
FAX:86755-23739900
wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability
arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special,
consequential or incidental damages.
Rev.A_Aug,2016
-6-
www.wpmtek.com
