P0080TVB

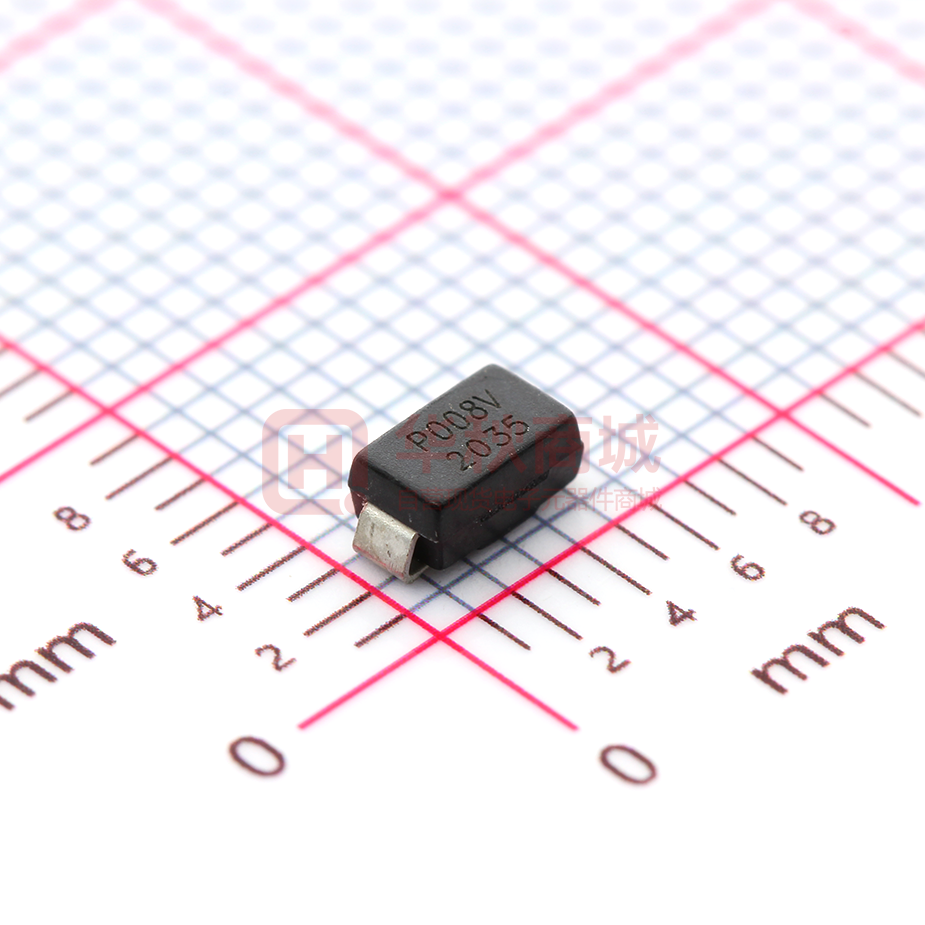

P0080TVB Integrated in OVP&OCP products provider Thyristors Surge Protection Device（SMA 2K) Description Mechanical characteristics P0080TVB thyristors are a type of semi-conduct Package: SMA component. They are designed in applications, modems, telephones, line cards, answering machines, FAX machines, SLICs, T1/E1, xDSL, PBXs and more. This series can be used to provide protection in accordance with industry standards such as FCC Part 68,  Case Material: “Green” Molding Compound.  Lead Finish: Matte Tin  UL Flammability Classification Rating 94V-0  Standard Packaging: 12mm tape (EIA STD RS-481) ANSI C62.41, UL 1459, GR-1089-CORE, IEC 61000-2, IEC 61000-4 and IEC 61000-4-5 requirements Features  Weight: 0.07g  Terminal Connections: See Diagram Below  Marking Information: See Below Applications  Cannot be damaged by voltage  Eliminate hysteresis and heat dissipation typically  SLIC Line Card found with clamping devices  T1/E1 Trunk & Line Card  DBX Branch Exchange Switches  Eliminate voltage overshoot caused by fast-rising transients  Are non-degenerative  FCC Part 68 Customer Premise Equipment  Will not fatigue  Line Interface Modem  Meets MSL level 1, per J-STD-020  xDSL Architecture Interface Dimensions & Symbol（Unit: mm Max） Marking information Marking Code Details marking code reference customer approval list Ordering information Out line Taping Rev.A_Aug,2016 -1- Reel Per carton Reel diameters (pcs) (pcs) (mm) 5K 80K 330 www.wpmtek.com P0080TVB Integrated in OVP&OCP products provider Thyristors Surge Protection Device（SMA 2K) Absolute Maximum Ratings (TA=25ºC, RH=45%-75%, unless otherwise noted) Parameter Symbol Value Unit Tstg -60 to +150 ℃ Operating junction temperature range Tj -40 to +150 ℃ Repetitive peak pulse current IPP 50 A Storage temperature range Electrical Characteristics (TA=25℃) Part Number P0080TVB VRM Min. V 6.5 IRM Max. uA 5 VBO V 25 Max. IBO VT mA 800 V 4 Max. IT A 2.2 CO Typ. pF 8 IH Typ. mA 25 Electrical Parameters & V-I Curve Symbol Parameter VDRM Peak off-state voltage IDRM Off-state current VS Switching voltage IS Switching current VT On-state voltage IT On-state current IH Holding current CO Off-state capacitance Surge ratings Series A Rev.A_Aug,2016 IPP (A) min 2×10us 8×20us 5×320us 10×1000us 100 90 50 35 -2- www.wpmtek.com P0080TVB Integrated in OVP&OCP products provider Thyristors Surge Protection Device（SMA 2K) Ratings and V-I Characteristics Curves (TA=25ºC, unless otherwise noted) Reflow Condition Pre Heat Pb-Free assembly (see FIG.2) -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ FIG.1: tr × td pulse waveform FIG.2: Reflow condition %IPP tp tr = rise time to peak value td = decay time to half value 100 TP Critical Zone T L to T P Ramp-up Peak value TL tL Temperature T S(max) Half value 50 t(μs) 0 0 tr T S(min) ts 25 td FIG.3: Normalized Vs change vs. junction temperature Percent of Vs change(%) time to peak temperatue (t 25℃ to peak) Time FIG.4: Normalized DC holding current vs. case temperature 2.0 12 IH(Tj )/IH(Tj =25℃) 1.8 1.6 8 1.4 4 1.2 25℃ 25℃ 1.0 0 0.8 -4 -8 -40 -20 Ramp-down Preheat 0 20 Rev.A_Aug,2016 Tj (℃) 40 60 80 0.6 100 120 140 160 0.4 -40 -20 -3- 0 20 40 TC (℃) 60 80 100 120 140 160 www.wpmtek.com P0080TVB Integrated in OVP&OCP products provider Thyristors Surge Protection Device（SMA 2K) Package Mechanical Data A D i m e n s io n s B R e f. M illim e te r s M in . M ax. In c h e s M in . M ax. 0 .1 6 7 0 .1 8 3 A 4 .2 5 4 .6 5 B 2 .5 0 2 .9 0 0 .0 9 8 0 .1 1 4 C 1 .3 5 1 .6 5 0 .0 5 3 0 .0 6 5 D 0 .7 6 1 .5 2 0 .0 3 0 0 .0 6 0 E E 4 .9 3 5 .2 8 0 .1 9 4 0 .2 0 8 F 0 .0 5 1 0 .2 0 3 0 .0 0 2 0 .0 0 8 J K G 0 .1 5 0 .3 1 0 .0 0 6 0 .0 1 2 H 1 .9 8 2 .4 1 0 .0 7 8 0 .0 9 5 J 6 .5 0 H F G L D K D O -2 1 4 A C (S M A ) 0 .2 5 6 2 .3 0 1 .7 0 L 0 .0 9 0 0 .0 6 7 Tape & Reel Specification (SMA) Ref. Dimensions Millimeters Inches A 2.79 ± 0.3 0.110 ± 0.012 B 5.33 ± 0.3 0.210 ± 0.012 d 1.5 ± 0.1 0.059 ± 0.004 D 330.0 13.0 D2 13 ± 1 0.512 ± 0.039 E 1.5 ± 0.2 0.059 ± 0.008 F 5.65 ± 0.2 0.222 ± 0.008 P 4.0 ± 0.2 0.157 ± 0.008 P0 4.0 ± 0.2 0.157 ± 0.008 P1 2.0 ± 0.2 0.079 ± 0.008 W 12.0 ± 0.2 0.472 ± 0.008 W1 16.8 ± 2.0 0.661 ± 0.079 Contact Information WPMTEK Incorporated Limited Floor 1 Building 4#, Binxianghua Industry Park, No.7, Huada Road, Hualian Community, Longhua New District, Shenzhen TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.A_Aug,2016 -4- www.wpmtek.com
