WP0640S2C

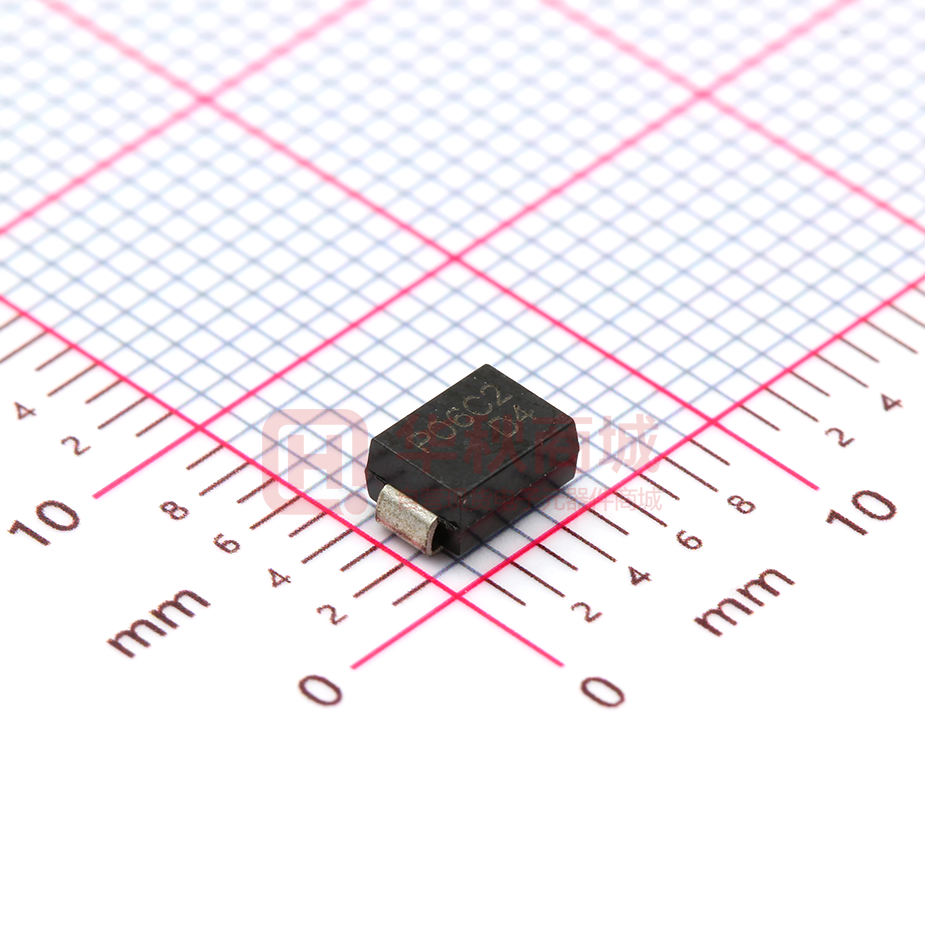

WP0640S2C Integrated in OVP&OCP products provider Thyristors Surge Protection Device Description Mechanical Characteristics WPXXXXS2Cseries thyristors are a type of semi-conduct Package: SMB/DO-214AA component. They are designed in applications, modems, telephones, line cards, answering machines,  Case Material: “Green” Molding Compound. FAX machines, SLICs, T1/E1, xDSL, PBXs and more.  UL Flammability Classification Rating 94V-0  Standard Packaging: 12mm tape (EIA STD Features  RS-481) For surface mounted applications to optimize board space  Low profile package  Bidirectional crowbar protection  Low leakage current : I = 5uA max  Low on-state voltage  Low Capacitance  Solid-state silicon technology  Eliminates overvoltage  Weight: 0.10g  Terminal Connections: See Diagram Below  Marking Information: See Below Applications Standards TIA-968-A/B caused ITU K.20/21 Enhanced Level* by fast ITU K.20/21 Basic Level* rising GR 1089 Inter-building* transients GR 1089 Intra-building IEC 61000-4-5 2nd edition Dimensions & Symbol（Unit: mm Max） YD/T 1082 YD/T 993 YD/T 950 Marking Information Ordering Information Out line Taping Rev.A_Aug,2016 -1- Reel Per carton Reel diameters (pcs) (pcs) (mm) 3K 30K 330 www.wpmtek.com WP0640S2C Integrated in OVP&OCP products provider Thyristors Surge Protection Device Absolute Maximum Ratings (TA=25ºC, RH=45%-75%, unless otherwise noted) Parameter Symbol Value Unit Tstg -60 to +150 ℃ Operating junction temperature range Tj -40 to +150 ℃ Repetitive peak pulse current(5/320uS) IPP 150 A Storage temperature range Electrical Characteristics (TA=25℃) Symbol Parameter VDRM Peak off-state voltage IDRM Off-state current VS Switching voltage IS Switching current VT On-state voltage IT On-state current IH Holding current CO Off-state capacitance IDRM@VDRM Part Number WP0640S2C VS①@IS VT@ IT IH CO② μA V V mA V A mA pF max PIN1-2 PIN3-2 max max max max min max 5 58 77 800 4 2.2 55 45 Marking 0640S2C ① Vs is measured at 100KV/s ② Off-state capacitance is measured in VDC=2V, VRMS=1V, f=1MHz Surge Ratings Series S2C Rev.A_Aug,2016 IPP (A) min 2×10us 8×20us 5×320us 10×1000us 500 400 150 100 -2- www.wpmtek.com WP0640S2C Integrated in OVP&OCP products provider Thyristors Surge Protection Device Part Number Code WPMTEK W P 0640 S 2 C 10/1000uS 100A Type Sidactor 5/320uS 150A component VDRM 64V 2 Channels Package Type SMB Characteristic Curves Rev.A_Aug,2016 -3- www.wpmtek.com WP0640S2C Integrated in OVP&OCP products provider Thyristors Surge Protection Device Soldering Parameters Pb-Free assembly (see FIG.2) Reflow Condition Pre Heat -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ Rev.A_Aug,2016 -4- www.wpmtek.com WP0640S2C Integrated in OVP&OCP products provider Thyristors Surge Protection Device Package Mechanical Data DIM Inches Millimeters Min Max Min Max A 0.130 0.156 3.30 3.95 B 0.201 0.220 5.10 5.60 C 0.077 0.087 1.95 2.20 D 0.159 0.181 4.05 4.60 E 0.030 0.063 0.75 1.60 F 0.075 0.096 1.90 2.45 G 0.002 0.008 0.05 0.20 H 0.077 0.104 1.95 2.65 K 0.006 0.016 0.15 0.41 M 0.022 0.028 0.56 0.71 N 0.027 0.033 0.69 0.84 P 0.052 0.058 1.32 1.47 Tape & Reel Specification - SMB Rev.A_Aug,2016 -5- www.wpmtek.com WP0640S2C Integrated in OVP&OCP products provider Thyristors Surge Protection Device Contact Information WPMTEK Incorporated Limited Floor 1 Building 4#, Binxianghua Industry Park, No.7, Huada Road, Hualian Community, Longhua New District, Shenzhen TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.A_Aug,2016 -6- www.wpmtek.com
