CLAMP0504DT
Integrated in
OVP&OCP products
provider
4-Line Ultra Low Capacitance TVS Diode Array
Description
Mechanical Characteristics
The CLAMP0504DT is an ultra low capacitance TVS array,

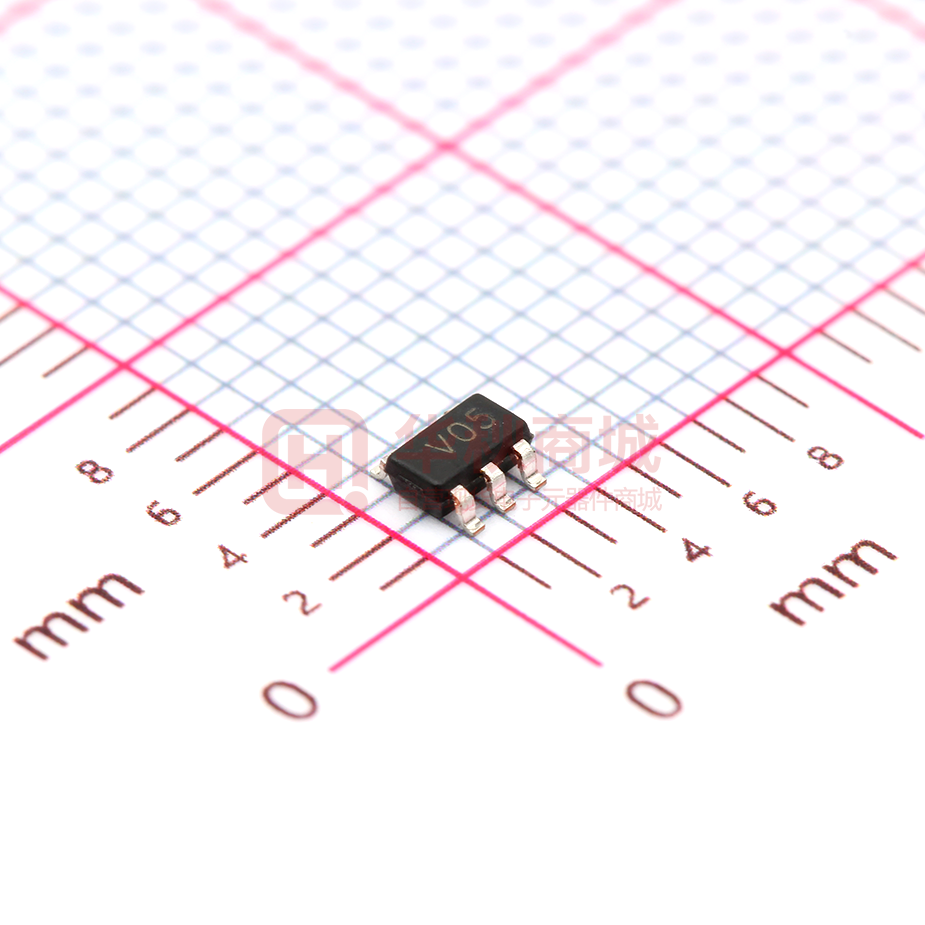

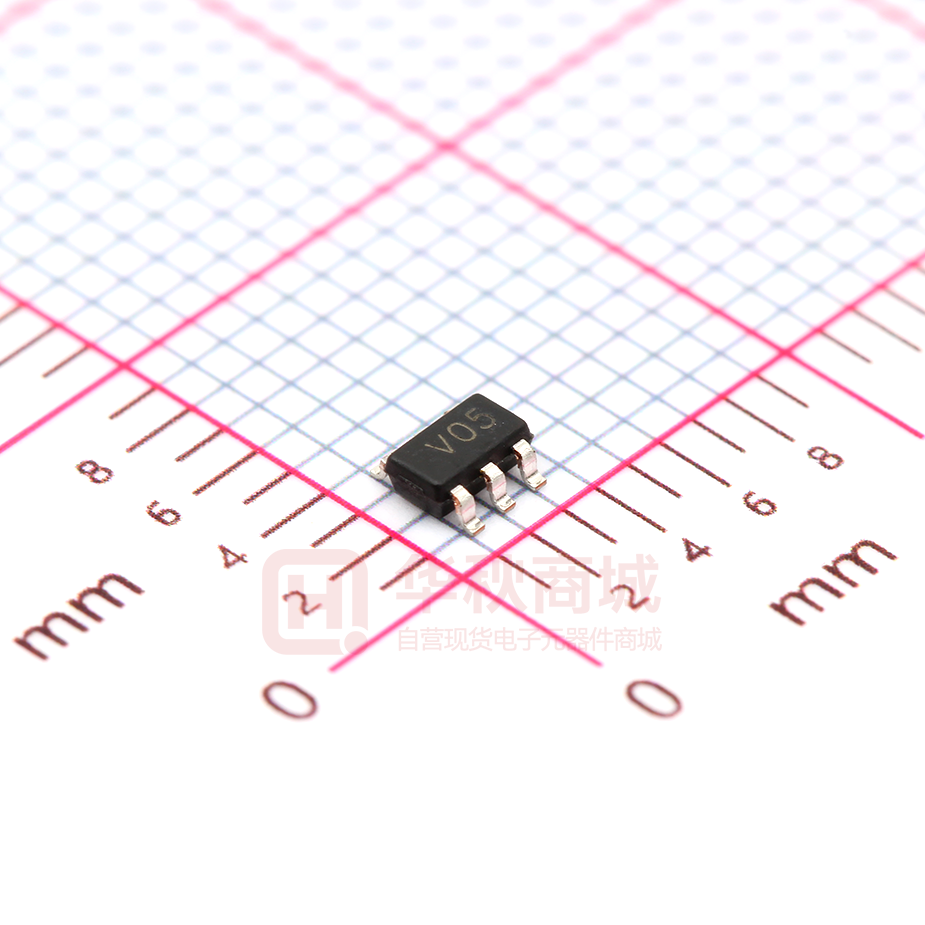

Package: SOT23-6
utilizing leading monolithic silicon technology to provide
Lead Finish: Matte Tin
fast response time and low ESD clamping voltage, making
Case Material: “Green” Molding Compound.
this device an ideal solution for protecting voltage sensitive
UL Flammability Classification Rating 94V-0
high-speed data lines. The CLAMP0504DT has an
Moisture Sensitivity: Level 3 per J-STD-020
ultra-low capacitance with a typical value at 0.2pF, and
Terminal Connections: See Diagram Below
complies with the IEC 61000-4-2 (ESD) standard with
Marking Information: See Below
±15kV air and ±8kV contact discharge. It is assembled into
Applications
a 6-pin lead-free SOT23 package. The combination of
small size, ultra low capacitance, and high ESD surge
capability make it ideal for use in applications such as USB
3.0, multimedia, and other high speed ports.
USB 2.0 and USB 3.0 Ports
USB OTG
Digital Video Interface (DVI)
Monitor and Flat Panel Displays
Features
Ultra low capacitance: 1.pF typical (I/O to I/O)
PCI Express and Serial SATA Ports
Ultra low leakage: nA level
Gigabit Ethernet
Working voltage: 5V
Low clamping voltage
IEEE 1394 Firewire Ports
Up to 4 data lines and one power line protects
Consumer products (STB, DVD, DSC, DVC...)
Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test
Marking information
Air discharge: ±25kV
Contact discharge: ±20kV
– IEC61000-4-4 (EFT) 40A (5/50ns)
– IEC61000-4-5 (Lightning) 4A (8/20µs)
V05
RoHS Compliant
Dimensions & Symbol(Unit: mm Max)
Dot denotes Pin1
Ordering Information
Part Number
CLAMP0504DT
Packaging
3000/Tape & Reel
Reel Size
7 inch
Circuit Diagram & Pin Schematic
Rev.G_Aug,2018
-1-
www.wpmtek.com
CLAMP0504DT
Integrated in
OVP&OCP products
provider
4-Line Ultra Low Capacitance TVS Diode Array
Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
Peak Pulse Power (8/20µs)
Ppk
60
W
Peak Pulse Current (8/20µs)
Ipp
4
A
ESD per IEC 61000−4−2 (Air)
±25
VESD
ESD per IEC 61000−4−2 (Contact)
Operating Temperature Range
Storage Temperature Range
kV
±20
TJ
−55 to +125
°C
Tstg
−55 to +150
°C
Electrical Characteristics (TA=25°C unless otherwise specified)
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
6
Max
Unit
Test Condition
5
V
9
V
IT = 1mA
Reverse Leakage Current
IR
1
µA
VRWM = 5.0V
Clamping Voltage
VC
10
V
IPP = 1A (8 x 20µs pulse)
Clamping Voltage
VC
15
V
IPP = 4A (8 x 20µs pulse)
Junction Capacitance
CJ
0.45
0.5
pF
VR=0V, f=1MHZ
Junction Capacitance
CJ
0.2
0.3
pF
Between I/O pins VR=0V, f=1MHZ
Junction Capacitance
CJ
0.8
pF
Between VCC and GND
VR=0V, f=1MHZ
Between I/O pins and Ground
1RWH,23LQVDUHSLQ3LQLV9FF3LQLV*1'
Rev.G_Aug,2018
-2-
www.wpmtek.com
CLAMP0504DT
Integrated in
OVP&OCP products
provider
4-Line Ultra Low Capacitance TVS Diode Array
Typical Performance Characteristics (TA=25°C unless otherwise Specified)
,QVHUWLRQ/RVV6RI,2WR*1'
1RUPDOL]HG&DSDFLWDQFHYV5HYHUVH9ROWDJH
1RUPDOL]HG&DSDFLWDQFH
,QVHUWLRQ/RVVG%
(
(
(
(
(
5HYHUVH9ROWDJH9
)UHTXHQF\+]
(6'&ODPSLQJ
N9&RQWDFWSHU,(&
(6'&ODPSLQJ
N9&RQWDFWSHU,(&
&ODPSLQJ9ROWDJH9
&ODPSLQJ9ROWDJH9
7LPHQV
Rev.G_Aug,2018
7LPHQV
-3-
www.wpmtek.com
CLAMP0504DT
Integrated in
OVP&OCP products
provider
4-Line Ultra Low Capacitance TVS Diode Array
Soldering parameters
Pb-Free assembly
(see FIG.2)
Reflow Condition
Pre Heat
-Temperature Min (Ts(min))
+150℃
-Temperature Max(Ts(max))
+200℃
-Time (Min to Max) (ts)
60-180 secs.
Average ramp up rate (Liquid us Temp (TL) to peak)
3℃/sec. Max
Ts(max) to TL - Ramp-up Rate
3℃/sec. Max
Reflow
-Temperature(TL) (Liquid us)
+217℃
-Temperature(tL)
60-150 secs.
Peak Temp (Tp)
+260(+0/-5)℃
Time within 5℃ of actual Peak Temp (tp)
30 secs. Max
Ramp-down Rate
6℃/sec. Max
Time 25℃ to Peak Temp (TP)
8 min. Max
Do not exceed
+260℃
Rev.G_Aug,2018
-4-
www.wpmtek.com
Integrated in
OVP&OCP products
provider
CLAMP0504DT
4-Line Ultra Low Capacitance TVS Diode Array
Package mechanical data
Suggested Land Pattern
Contact information
WPMTEK Incorporated Limited
Room 206-207,2nd Floor,Block 3,Minxing lndustry Park,Minzhi
Longhua New District,Shenzhen
TEL:86755-29308003
FAX:86755-23739900
wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability
arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special,
consequential or incidental damages.
Rev.G_Aug,2018
-5-
www.wpmtek.com
