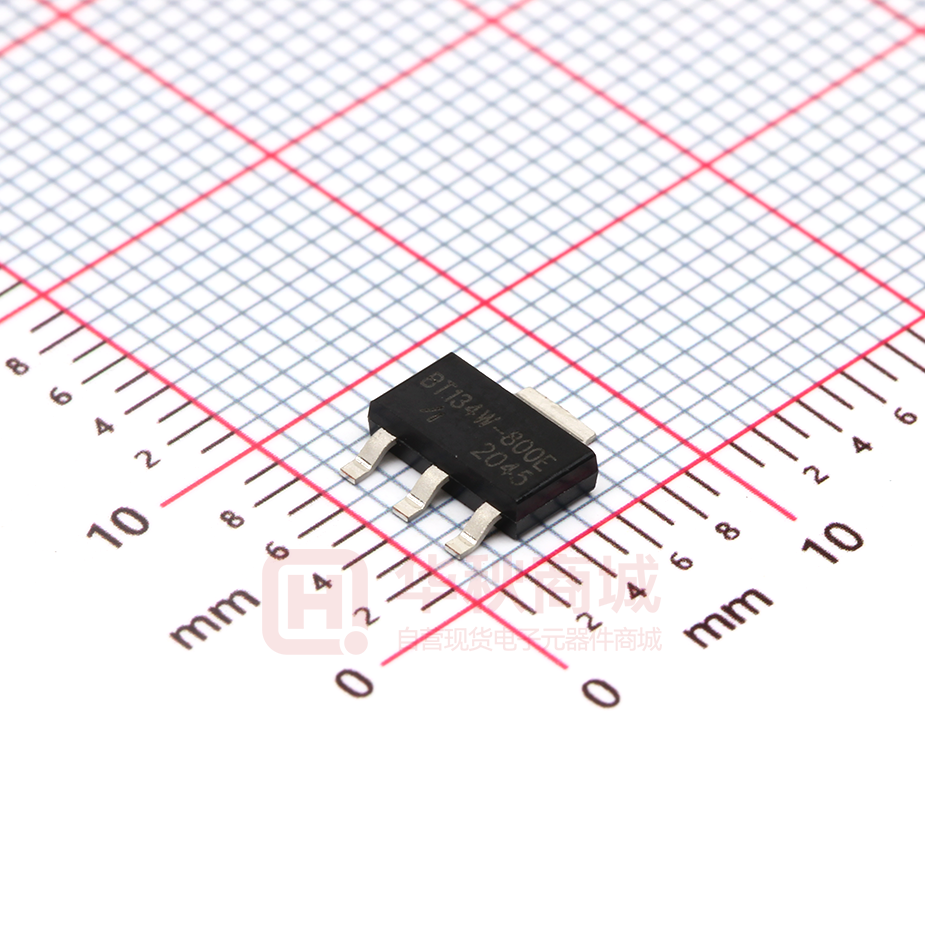

BT134W-800E

SIK A CO.,LIMITED B T134 Series 4A TRIACs DESCRIPTION:  B T134 series triacs with low holding and latching current are especially recommended for use on middle and small resistance type power load. T 2(2) MAIN FEATURES  T 1(1) G (3) Symbol Value Unit IT(RMS) 4 A VDRM /VRRM 600 V ABSOLUTE MAXIMUM RATINGS  Parameter Symbol Value Unit Tstg -40 - 150 ℃ Tj -40 - 125 ℃ Repetitive peak off-state voltage(Tj =25℃) VDRM 600 V Repetitive peak reverse voltage(Tj =25℃) VRRM 600 V Non repetitive surge peak Off-state voltage VDSM VDRM + 100 V Non repetitive peak reverse voltage VRSM VRRM + 100 V IT(RMS) 4 A Storage junction temperature range Operating junction temperature range RMS on-state current TEL:+86-0755-89519740 SOT-223 (TC=75℃) -1/5- www.sika-wen.com B T134 Series                              SIK A CO.,LIMITED Non repetitive surge peak on-state current (full cycle, F=50Hz) I2t value for fusing (tp =10ms) Critical rate of rise of on-state current (IG =2×IGT) Ⅰ-Ⅱ-Ⅲ Ⅳ Peak gate current Average gate power dissipation Peak gate power ITSM 25 A I 2t 3.1 A2s dI/dt 50 10 A/μs IGM 2 A PG(AV) 0.5 W PGM 5 W   ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)  Value Symbol Test Condition Quadrant Unit E IGT Ⅰ-Ⅱ-Ⅲ VD=12V RL=33Ω Ⅳ VGT VGD VD=VDRM Tj=125℃ RL=3.3KΩ MAX 5 mA 10 ALL MAX 1.3 V ALL MIN 0.2 V Ⅰ-Ⅲ-Ⅳ MAX 10 mA IL IG=1.2IGT IH IT=100mA MAX 10 mA VD=2/3VDRM Gate Open Tj=125℃ MIN 50 V/ μs (dI/dt)c=1.1A/ms Tj=125℃ MIN 1 V/ μs Value(MAX) Unit Tj=25℃ 1.7 V Tj=25℃ 5 μA Tj=125℃ 0.5 mA dV/dt (dV/dt)c Ⅱ 15 STATIC CHARACTERISTICS  Symbol VTM IDRM IRRM Parameter ITM=5A tp=380μs VD=VDRM VR=VRRM TEL:+86-0755-89519740 -2/5- www.sika-wen.com   B T134 Series                 SIK A CO.,LIMITED THERMAL RESISTANCES  Symbol Rth(j-c) Parameter junction to case(AC) Value Unit 4.5 ℃/W SOT-223   ORDERING INFORMATION  B T 134 W 600 E SIKA CO.,LIMITED 600 W:SOT-223   PACKAGE MECHANICAL DATA    TEL:+86-0755-89519740 -3/5- www.sika-wen.com   Series                              B T134 FIG.1: Maximum power dissipation versus RMS on-state current FIG.2: RMS on-state current versus case temperature P(w) 6.6 IT(RMS) (A) 6 5.5 5 4.4 4 3.3 3 2.2 2 1.1 α=180° ← SOT-223/ 1 IT(RMS) (A) 0 0 1 2 3 4 5 FIG.3: Surge peak on-state current versus number of cycles 28   SIK A CO.,LIMITED Tc (℃) 0 0 25 50 75 100 125 FIG.4: On-state characteristics (maximum values) ITSM (A) 30 ITM (A) t=20ms One cycle 24 Tj=Tjmax 10 20 16 12 1 8 Tj=25℃ 4 0 1 10 Number of cycles 100 1000 FIG.5: Non-repetitive surge peak on-state current for a sinusoidal pulse with width tp
