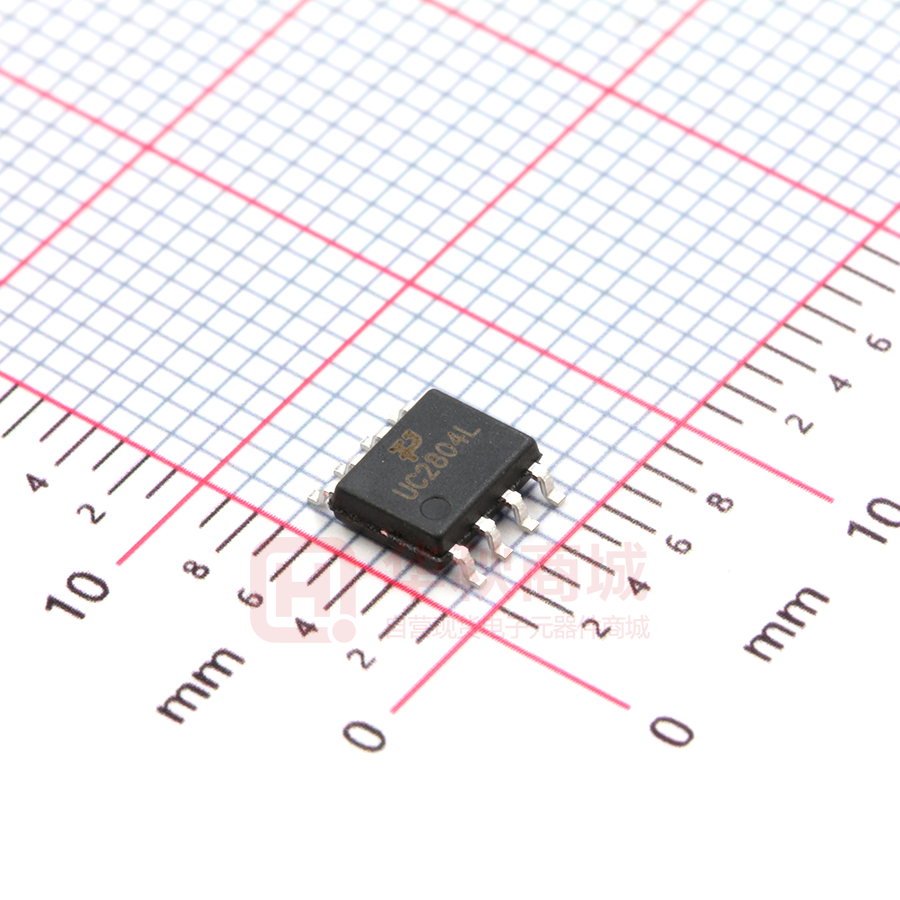

uclamp2804L

UCLAMP2804L TVS Array For ESD and Latch Up Protection WWW.SOT23.COM.TW Mechanical Characteristics Features  100W peak pulse power(8/20µs)  Protects two line pairs(four lines)  Ultra low leakage：nA level        Low operating voltage：2.8V     BL IC Low capacitance Ultra low clamping voltage JEDEC SO-8 package Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) 10A (8/20µs)  RoHS Compliant CH PU Applications UCLAMP2804L TE Ordering Information Part Number Package: SO-8 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Terminal Connections: See Diagram Below Qty per Reel Reel Size 2500 13Inch        Base Station Analog Inputs Switch Systems 10/100/1000 Ethernet WAN/LAN Equipment Desktops, Servers, and Notebooks Low Voltage Interfaces Dimensions and Pin Configuration Circuit and Pin Schematic UCLAMP2804L TVS Array For ESD and Latch Up Protection WWW.SOT23.COM.TW Absolute Maximum Ratings (TA=25°C unless otherwise specified) Symbol Value Unit Peak Pulse Power(8/20µs) Ppk 100 W Peak Pulse Current(8/20µs) IPP 10 A IC Parameter ESD per IEC 61000−4−2 (Air) VESD ESD per IEC 61000−4−2 (Contact) Storage Temperature Range ±30 kV TJ −40 to +125 °C Tstg −55 to +150 °C BL Operating Temperature Range ±30 Symbol Reverse Working Voltage Snap-Back Voltage Typ VRWM VPT TE Punch-Through Voltage Min CH Parameter PU Electrical Characteristics (TA=25°C unless otherwise specified) VSB 3.5 3.8 Max Unit 2.8 V 4.3 V Test Condition IPT = 2µA ISB = 50mA 2.8 Reverse Leakage Current IR 1.0 µA VRWM = 2.8V Clamping Voltage VC 5.5 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 10 V IPP = 10A (8 x 20µs pulse) Variation in capacitance with reverse bias Junction Capacitance Pins 1,8 to 2,7 and pins 3,6 to 4,5 1.3 CJ 4.7 pF 6 pF VR = 0 to 2.8V, f = 1MHz Pins 1,8 to 2,7 and pins 3,6 to 4,5 VR = 2.8V, f = 1MHz UCLAMP2804L TVS Array For ESD and Latch Up Protection PROTECTION PRODUCTS WWW.SOT23.COM.TW Typical charateristics Non-Repetitive Peak Pulse Power vs. Pulse Time Clamping Voltage vs. Peak Pulse Current 10 10 Clamping Voltage - VC (V) 1 0.1 8 7 6 5 4 3 Waveform Parameters: tr = 8μs td = 20μs 2 1 0.01 0.1 1 10 IC Peak Pulse Power - PPP (kW) 9 0 100 0 Pulse Duration - tp (us) 2 4 6 8 10 12 Peak Pulse Current - IPP (A) Typical Insertion Loss (S21) BL Normalized Junction Capacitance vs. Reverse Voltage CH1 S21 2 PU 1.8 1.4 1.2 CH 1 0.8 0.6 0.4 0.2 0 0 0.5 TE Cj(VR) / Cj(VR=0V) 1.6 1 1.5 2 6 dB / REF 0 dB 1: -1.8892 dB 800 MHz 2: -2.1247 dB 900 MHz 0 dB 12 -6 dB 3: -6.9338 dB 1.8 GHz 3 -12 dB 5 -18 dB 4: -15.047 dB 2.5 GHz 4 -24 dB -30 dB -36 dB f = 1 MHz -42 dB 2.5 Reverse Voltage (VR) ESD Clamping (8kV Contact per IEC 61000-4-2) Note: Data is taken with a 10x attenuator LOG 3 -48 dB 1 MHz START . 030 MHz 10 MHz 100 MHz 3 1 GHz GHz STOP 3000. 000000 MHz ESD Clamping (-8kV Contact per IEC 61000-4-2) Note: Data is taken with a 10x attenuator UCLAMP2804L TVS Array For ESD and Latch Up Protection WWW.SOT23.COM.TW A e N h D 2 0.25 ccc C 2X N/2 TIPS e/2 DETAIL B D aaa C CH A2 A C A1 01 A SEE DETAIL A DIM A A1 A2 b c D E1 E e h L L1 N 01 aaa bbb ccc DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .069 .053 .010 .004 .065 .049 .020 .012 .010 .007 .189 .193 .197 .150 .154 .157 .236 BSC .050 BSC .010 .020 .016 .028 .041 (.041) 8 8° 0° .004 .010 .008 1.75 1.35 0.25 0.10 1.65 1.25 0.51 0.31 0.25 0.17 4.80 4.90 5.00 3.80 3.90 4.00 6.00 BSC 1.27 BSC 0.25 0.50 0.40 0.72 1.04 (1.04) 8 8° 0° 0.10 0.25 0.20 SIDE VIEW C A-B D TE bxN bbb L (L1) PU 1 c GAGE PLANE BL E1 E SEATING PLANE h H 2X E/2 IC Outline Drawing - SOP-8 Land Pattern - SOP-8 WWW.TECHPUBLIC.COM.TW
