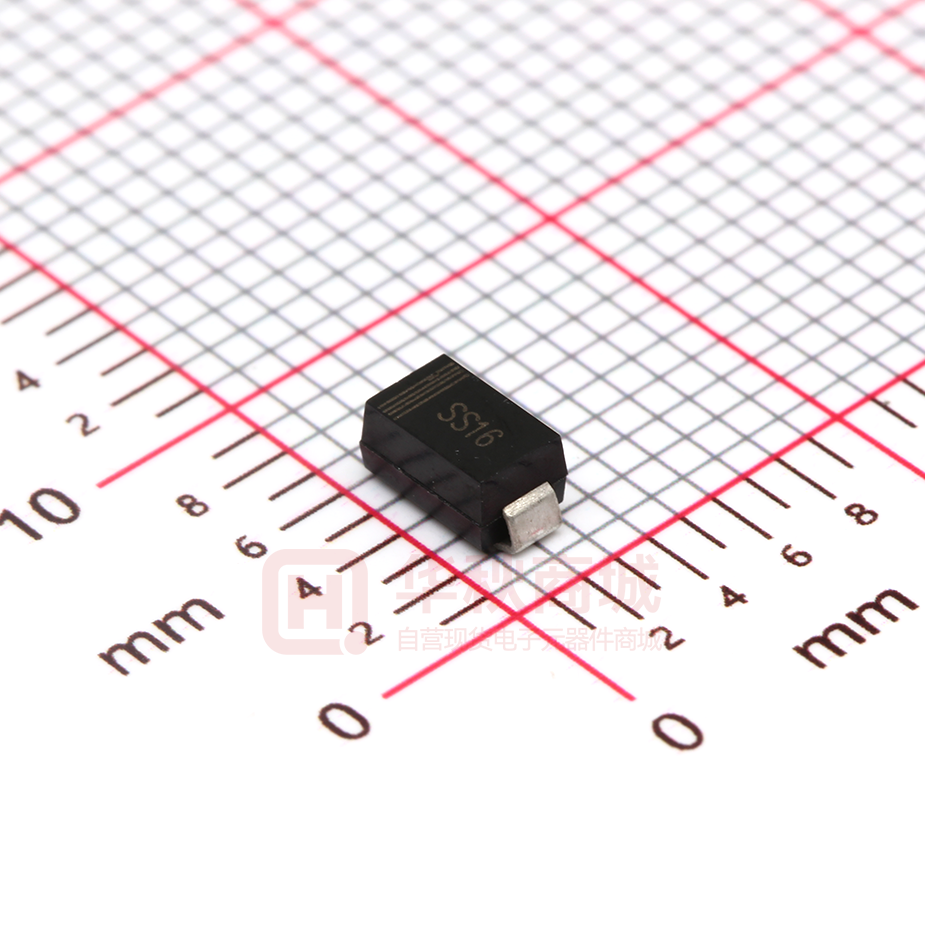

SS16

SS12~SS110 Surface Mount Schottky Rectifiers Features ● Low profile package ● Ideal for automated placement ● Ultrafast reverse recovery time ● Low power losses, high efficiency ● Low forward voltage drop ● High surge capability ● High temperature soldering： 260℃/10 seconds at terminals Mechanical Date ● Case: JEDEC DO-214AC molded plastic body over glass passivated chip ● Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D Major Ratings and Characteristics IF(AV) 1.0A VRRM 20 V to 100 V IFSM 40A VF 0.50V, 0.55V, 0.70V, 0.85V Tj max. 125 °C Maximum Ratings & Thermal Characteristics (TA = 25 °C unless otherwise noted) Items Symbol SS12 SS13 SS14 SS15 SS16 60 SS18 SS110 UNIT Maximum repetitive peak reverse voltage VRRM 20 30 40 50 Maximum RMS voltage VRMS 14 21 28 35 42 56 70 V Maximum DC blocking voltage VDC 20 30 40 50 60 80 100 V Maximum average forward rectified current IF(AV) 1.0 A Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load IFSM 40 A Voltage rate of change (rated VR) dv/dt 10000 V/µs RθJL 35 ℃/W –65 to +125 ℃ Thermal resistance from junction to lead (1) Operating junction and storage temperature TJ，TSTG range 80 100 V Note 1: Mounted on P.C.B. with 0.2 x 0.2” (5.0 x 5.0mm) copper pad areas. Electrical Characteristics Items Instantaneous forward voltage Reverse current (TA = 25 °C unless otherwise noted) Test conditions Symbol SS12 SS13~14 SS15~16 SS18~110 UNIT IF=1.0A(2) VF 0.50 0.55 0.70 0.85 V VR=VDC TA=25℃ TA=100℃ IR Note 2: Pulse test:300μs pulse width,1% duty cycle. www.slkormicro.com 1 0.5 5 mA SS12~SS110 Characteristic Curves (TA=25 ℃ unless otherwise noted) www.slkormicro.com 2
