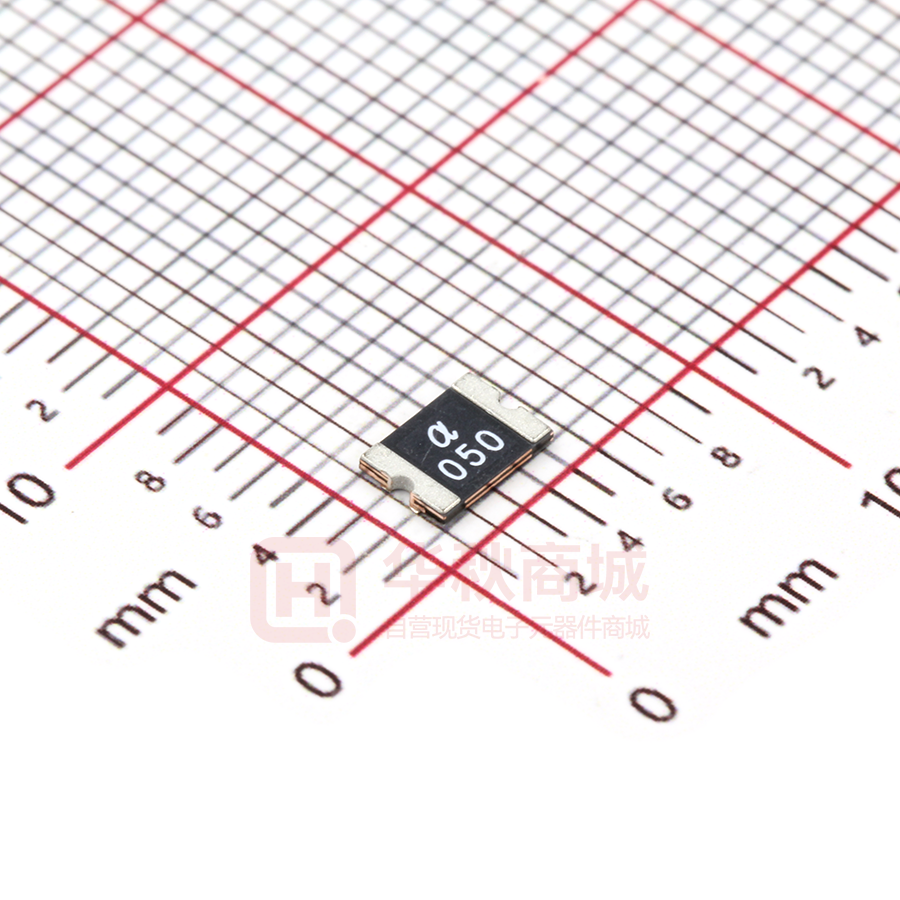

mSMD050-33V

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: DOCUMENT: ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse mSMD series QR0429 2014/12/27 1 of 1 Specification Sheet A Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. Terminal Pad Materials: Tin-plated Nickel-Copper B 110 Lead-Free, RoHS Compliant Marking: α Alpha Logo 110 Part Identification E D TABLE I. DIMENSIONS: mSMD010 mSMD014 mSMD020 mSMD030 Min. 4.37 4.37 4.37 4.37 A Max. 4.73 4.73 4.73 4.73 Min. 3.07 3.07 3.07 3.07 Max. 3.41 3.41 3.41 3.41 Min. 0.50 0.50 0.50 0.50 Max. 1.00 1.00 1.30 1.30 D Min. 0.30 0.30 0.30 0.30 E Min. 0.25 0.25 0.25 0.25 Model B C mSMD050 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25 mSMD050-33V 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.25 mSMD075 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25 mSMD100 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25 mSMD110 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25 mSMD110-16V 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.25 mSMD125 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.25 mSMD150 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25 mSMD150-16V 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.25 mSMD160 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25 mSMD200 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.25 mSMD260 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.25 mSMD300 4.37 4.73 3.07 3.41 0.50 1.30 0.30 0.25 mSMD350 4.37 4.73 3.07 3.41 0.50 1.30 0.30 0.25 Vmax Imax Ihold Itrip Pd @25°C @25°C (A) (A) (A) Typ. (W) Current (V) (A) Time (Sec) Rimin (W) R1max (W) mSMD010 30.0 100 0.10 0.30 0.8 0.5 1.50 0.750 15.000 mSMD014 60.0 100 0.14 0.34 0.8 1.5 0.15 0.650 6.000 mSMD020 30.0 100 0.20 0.40 0.8 8.0 0.02 0.350 5.000 mSMD030 30.0 100 0.30 0.60 0.8 8.0 0.10 0.250 3.000 mSMD050 15.0 100 0.50 1.00 0.8 8.0 0.15 0.150 1.000 mSMD050-33V 33.0 100 0.50 1.00 0.8 8.0 0.15 0.150 1.000 mSMD075 13.2 100 0.75 1.50 0.8 8.0 0.20 0.090 0.450 mSMD100 8.0 100 1.00 1.80 0.8 8.0 0.30 0.055 0.270 mSMD110 8.0 100 1.10 2.20 0.8 8.0 0.30 0.050 0.250 mSMD125 16.0 100 1.25 2.50 0.8 8.0 0.40 0.050 0.140 mSMD150 8.0 100 1.50 3.00 0.8 8.0 0.50 0.040 0.160 mSMD160 8.0 100 1.60 2.80 0.8 8.0 1.00 0.030 0.130 mSMD200 8.0 100 2.00 4.00 0.8 8.0 2.00 0.020 0.100 mSMD260 8.0 100 2.60 5.00 0.8 8.0 2.50 0.015 0.050 mSMD300 8.0 100 3.00 5.00 0.8 8.0 4.00 0.012 0.040 mSMD350 6.0 100 3.50 6.00 2.0 10.0 4.00 0.008 0.030 Unit:mm TABLE II. PERFORMANCE RATINGS: Model Maximum Time To Trip Order Information Packaging mSMD 110 Product name Size 4532 mm / 1812 mils SMD：surface mount device Hold Current 1.10A Tape & Reel Quantity Max voltage 1500 pcs/reel Tape & reel packaging per EIA481-1 Recognition: Resistance mSMD010、050、075、110、150、200、260 UL Approved. E201504/E319079 C
