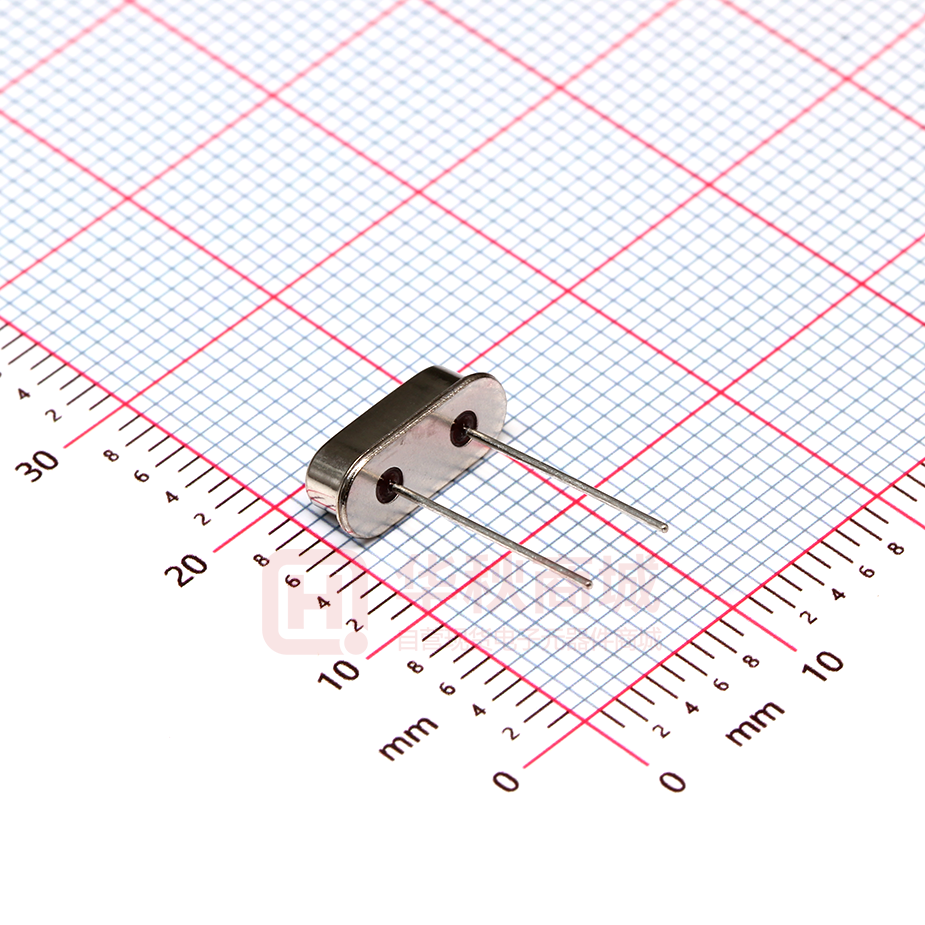

6BS03579AF20UCG

6BS03579AF20UCG

  • 厂商:

    SJK(晶科鑫)

  • 封装:

    HC49S

  • 描述:

    无源晶振 3.579545MHz 20pF 120Ω ±20ppm HC49S -40℃~+85℃

  • 详情介绍
  • 数据手册
  • 价格&库存
6BS03579AF20UCG 数据手册
QUARTZ CRYSTAL UNIT SERIES 6BS/SS, Resistance Welded HC-49S Package 深圳市晶科鑫实业有限公司 Shenzhen Crystal Technology Industrial Co., Ltd APPROVAL SHEET CUSTOMER P/N: TYPE: 49S DIP CRYSTAL DESCRIPTION: 49S 3.579545MHZ P N/ SJK: 6BS03579AF20UCG ENVIRONMENTAL: ■RoHS REVISION: MSL: A1 20PF ±20PPM ■REACH ■HF -40~85℃ □PAHS 2014-6-10 □other MOQ:1000pcs Levels 1 SIGNATURE SUPPLIER Issue Check CUSTOMER Approve QA SJK Signature FAE_EMAIL Date Date Check Approve: □accept Approve □unaccepted Note: Tel:0755-88352810-837(Mr.huang) Fax:0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 1 /4 QUARTZ CRYSTAL UNIT SERIES 6BS/SS, Resistance Welded HC-49S Package 1. FEATURE      Leadless type High precision characteristic covering up to high frequency range Designed for automatic mounting and reflow soldering Embossed taping specification The best choice of Bluetooth wireless communication sets, DSN, PDA and mobile phone 2. ELECTRICAL SPECIFICATIONS Output Frequency Range 3.579545MHz Mode AT/Fundamental Frequency Tolerance ±20 ppm max Load Capacitance(C L ) 20.0 PF Frequency Stability Over Operating Temperature Characteristics (at 25°C) ±30ppm max Operating Temperature Range -40 °C to +85 °C Storage Temperature Range -40 °C to +125 °C Shunt Capacitance (C 0 ) 3.0 PF Max Driver Level (Typical) 100µW Equivalent Series Resistance(ESR) 120Ω Max Aging @25°C 1st year (Max) ±3ppm/year Tel:0755-88352810-837(Mr.huang) Fax:0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 2 /4 QUARTZ CRYSTAL UNIT SERIES 6BS/SS, Resistance Welded HC-49S Package 3. DIMENSION (Units: mm) 4. MARKING SJK XX.XXX 5. REFLOW CONDITION / 回流焊 Tel:0755-88352810-837(Mr.huang) Fax:0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 3 /4 QUARTZ CRYSTAL UNIT SERIES 6BS/SS, Resistance Welded HC-49S Package 6. RELIABILITY TEST SPECIFICATION 1.Mechanical Endurance No. 1.1 Test Item Drop Test 1.2 Mechanical Shock 1.3 Vibration 1.4 Gross Leak 1.5 Fine Leak 1.6 Solder ability Test Methods 150 cm height, 3 times on concrete floor. Device are shocked to half sine wave ( 1000 G ) three mutually perpendicular axes each 3 times. 0.5m sec. duration time Frequency range 10 ~ 2000 Hz Amplitude 1.52 mm/20G Sweep time 20 minute Perpendicular axes each test time 4 hours (Total test time 12 hours) Standard Sample For Automatic Gross Leak Detector, Test Pressure: 2Kg / cm2 Helium Bombing 4.5 Kg/ cm2 for 2 hr Temperature 245 ℃ ± 5℃ 0.5 mm minimum Immersing depth Immersion time 5 ± 1 seconds Flux Rosin resin methyl alcohol solvent ( 1 : 4 ) REF.DOC JIS C6701 MIL-STD-202F MIL-STD-883E MIL-STD-883E MIL-STD-883E MIL-STD-883E 2.Environmental Endurance No. Test Item Test Methods 2.1 Resistance To Soldering Heat Pre-heat temperature Pre-heat time 60 ~ Test temperature Test time 2.2 2.3 High Temp. Storage Low Temp. Storage REF.DOC 125 ℃ 120 sec. 260 ± 5 ℃ 10 ± 1 sec. MIL-STD-202F + 125 ℃ ± 3 ℃ for 500 ± 12 hours MIL-STD-883E - 40 ℃ ± 3 ℃ for 500 ± 12 hours MIL-STD-883E Total 100 cycles of the following temperature cycle 2.4 2.5 2.6 Thermal Shock High Temp &Humidity Pressure Cooker Storage MIL-STD-883E 85℃ ± 3℃, RH 85% , 500Hrs JIS C5023 121 ± 3℃ , RH100% , 2 bar , 240Hrs JIS C6701 Tel:0755-88352810-837(Mr.huang) Fax:0755-88353718 http://www.q-crystal.com ADD: Room 1204~1206,Building 3C, TianAn Cloud Park Phase 1,Bantian, Longgang District, Shenzhen 4 /4
6BS03579AF20UCG
物料型号: - 型号:49S DIP晶体 - 产品编号/SJK:6BS03579AF20UCG

器件简介: - 无引线类型 - 高精度特性,覆盖高频范围 - 适用于自动贴装和回流焊接 - 压花胶带规格 - 蓝牙无线通信设备、DSN、PDA和手机的最佳选择

引脚分配: - 文档中未明确提供引脚分配信息,但提到是49S封装,通常这种封装有4个引脚。

参数特性: - 输出频率范围:3.579545MHz - 模式:AT/基本 - 频率容差:最大±20ppm(在25°C时) - 负载电容(CL):20.0PF - 工作温度范围内的频率稳定性:最大±30ppm - 工作温度范围:-40°C至+85°C - 存储温度范围:-40°C至+125°C - 并联电容(Co):最大3.0PF - 驱动电平(典型值):100W - 等效串联电阻(ESR):最大120 - 25°C下第一年老化:最大±3ppm/年

功能详解: - 文档中未提供详细的功能描述,但提到了其高精度和适用于自动贴装的特性。

应用信息: - 适用于蓝牙无线通信设备、DSN、PDA和手机。

封装信息: - 封装类型:HC-49S - 尺寸:最大11.5mm(XAM),5.021mm(顶部视图),4.88mm(侧视图),3.8mm(底部视图) - 标记:SJK XX.XXX

回流条件: - 预热:160~180°C,120秒 - 主要加热:220°C,60秒 - 峰值:260°C,最多10秒

可靠性测试规格: - 机械耐久性测试包括跌落测试、机械冲击、振动、粗漏和细漏测试。 - 环境耐久性测试包括耐焊热性、高温存储、低温存储、热冲击、高温高湿和压力锅存储。
