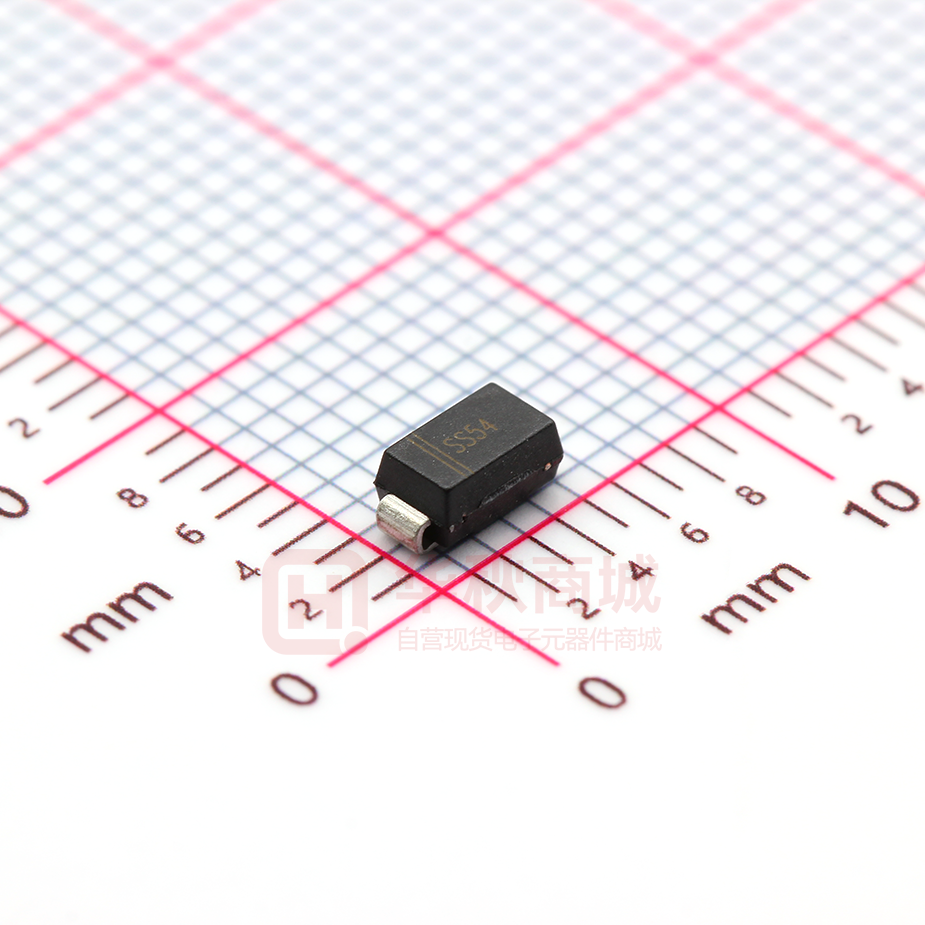

SS54

SS52~SS525 Surface Mount Schottky Rectifiers Features SMA/DO-214AC · Schottky Brrier Chip ·Low Power Loss,High Efficiency ·Ideally Suited for Automatic Assembly 0.110(2.80) 0.094(2.40) 0.059(1.50) 0.051(1.30) · Surge Overload Rating to 100A Peak ·Plastic Case Material has UL Flammability Classification Rating 94V-0 0.181(4.60) 0.157(4.00) Mechanical Data · Case: Molded plastic SMA 0.012(0.305) 0.006(0.150) · Terminals: Plated leads solderable per 0.086(2.62) 0.079(2.00) MIL-STD-750,Method 2026 guaranteed · Polarity: Color band denotes cathode end · Mounting Position: Any 0.060(1.52) 0.030(0.76) 0.008(0.203) 0.002(0.051) 0.010(0.25) 0.004(0.1) 0.208(5.28) 0.188(4.80) · Making: Type Number Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25℃ ambient temperature unless otherwise specified Single phase,half wave,60Hz,resistive or inductive load For capacitive load derate current by 20% SYMBOL SS 52 Type Number Maximum Recurrent Peak Reverse Voltage VRRM SS 53 SS SS SS SS 54 545 55 56 SS 58 40 Maximum RMS Voltage VRMS 14 30 21 Maximum DC Blocking Voltage VDC 20 30 Average Rectified Output Current @TL =100 ℃ Forward Voltage 50 60 80 28 31 35 42 56 70 40 45 50 60 80 100 105 140 175 V 150 200 250 V 5.0 A IFSM 100 A 41.50 A2 s I2 t @IF=5.0A (Note 1) Peak Reverse Current 45 IF(AV) Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) Rating for fusing (t
