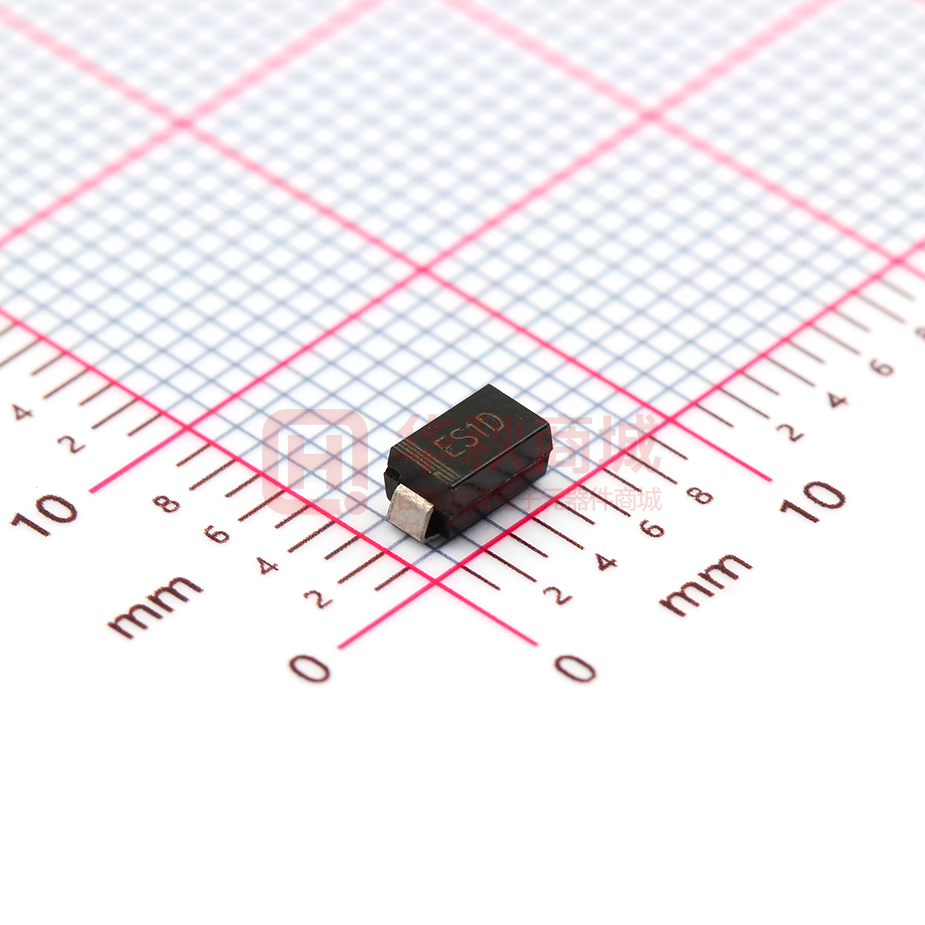

ES1D

ES1A-ES1K 1.0A Surface Mount Super Fast Rectifier Features • • • • Low profile surface mounted package Glass passivated junction Ultra fast recovery time for high efficiency Plastic package has underwriters laboratory flammability classification 94V-0 • High temperature soldering: 250 °C /10 seconds at terminals • RoHS compliant SMA Maximum Ratings (T Ambient=25ºC unless noted) Symbol VRRM VRMS VDC IAV Description Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current IFSM Peak Forward Surge Current TJ,TSTG Operating Junction and Storage Temperature Range ES1A ES1B ES1D ES1F ES1G ES1J ES1K Unit 50 100 200 300 400 600 800 V 35 70 140 210 280 420 560 V 50 100 200 300 400 600 800 V 1.0 30 -55 to 150 Note: Single phase half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% www.slkormicro.com 1 25 Conditions A TL=110°C A 8.3ms single half sinewave superimposed on rated load (JEDEC Method) °C ES1A-ES1K Electrical Characteristics (T Ambient=25ºC unless noted) Symbol Description Trr Maximum Instantaneous Forward Voltage Maximum DC Reverse Current at Rated DC Blocking Voltage Typical Reverse Recovery Time CJ VF IR Rθ-JA ES1A ES1B ES1D ES1F 0.95 ES1G ES1J ES1K Unit 1.7 2.2 V 1.25 Conditions IF=1.0 A 5 TA=25 °C µA 50 TA=125 °C 35 nS Typical Junction Capacitance 10 pF Maximum Thermal Resistance 34 ° C/W IF=0.5A, IR=1.0A, Irr=0.25A Measured at 1.0 MHZ and Applied Vr = 4.0 volts. Mounted on 0.2" x 0.2" (5mmx5mm) copper pad area Note: Single phase half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Fig.1- Forward Current Derating Curve Fig.2- Max. Non-Repetitive Forward Surge Current IFSM Peak Forward Surge Current (A) IAV Average Forward Rectified Current (A) Typical Characteristics Curves ES1K Number of Cycles at 60Hz Ambient Temperature (° C) www.slkormicro.com ES1A-- ES1J 2 ES1A-ES1K Fig.4- Junction Capacitance Junction Capacitance (pF) Instantaneous Reverse Current (µA) Fig.3- Typical Reverse Characteristics Percentage of Peak Reverse Voltage (%) Reverse Voltage (V) Dimensions in inch (mm) DO-214AC (SMA) www.slkormicro.com 3
