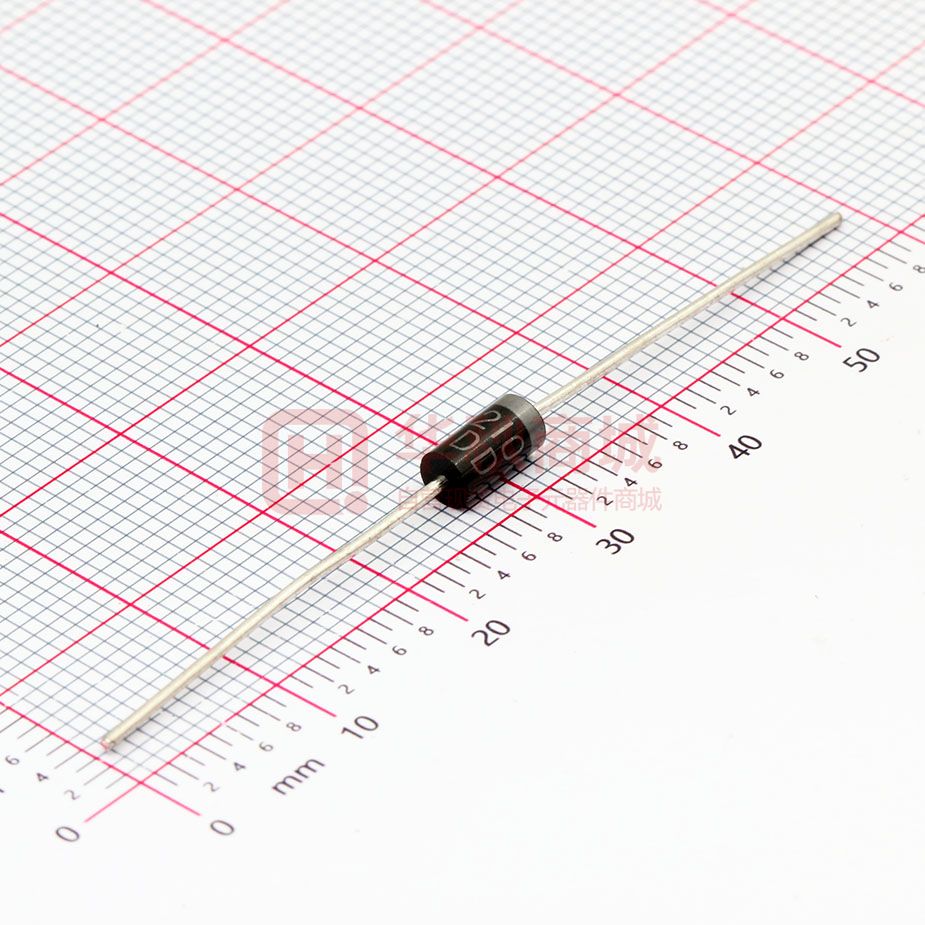

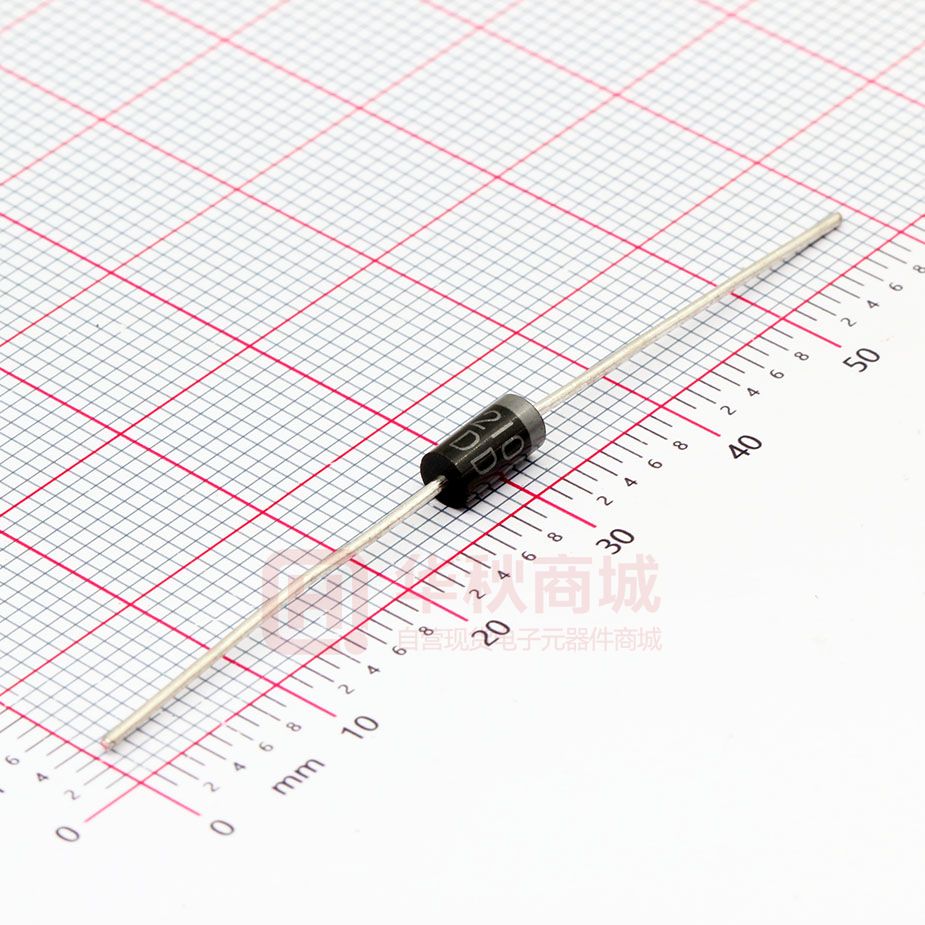

SR2100

SR220 THRU SR2200 Reverse Voltage - 20 to 200 Volts Forward Current - 2.0 Ampere SCHOTTKY BARRIER RECTIFIER Features DO-15  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Metal silicon junction,majority carrier conduction  Low power loss,high efficiency  High forward surge current capability  High temperature soldering guaranteed: 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.140 (3.6) 0.104(2.6) DIA. 0.300(7.6) 0.230(5.8) Mechanical Data Case : JEDEC DO-15 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Color band denotes cathode end Mounting Position : Any Weight : 0.014 ounce, 0.40 grams 1.0 (25.4) MIN. 0.034 (0.86) 0.028 (0.70) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) SR SR SR SR SR SR SR SR SR SR SR 220 230 240 250 260 270 280 290 2100 2150 2200 SYMBOLS MDD MDD MDD MDD MDD MDD MDD MDD MDD MDD MDD SR SR SR SR SR SR SR SR SR SR SR 220 230 240 250 260 270 280 290 2100 2150 2200 VRRM V RMS V DC Typical junction capacitance (NOTE 1) CJ Storage temperature range 40 28 40 50 35 50 60 42 60 70 49 70 IFSM VF Operating junction and storage 30 21 30 I(AV) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ Typical thermal resistance (NOTE 2) 20 14 20 80 56 80 100 150 200 70 105 140 100 150 200 A 60 A 0.85 0.5 IR 10.0 TJ T STG 5.0 220 R θ JA V V V 2.0 0.70 0.55 90 63 90 UNITS 80 50.0 -65 to +125 -65 to +150 -65 to +150 0.95 0.2 2.0 V mA pF ℃/W ℃ ℃ Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted http://www.microdiode.com Rev:2024A1 Page :1 SR220 THRU SR2200 Reverse Voltage - 20 to 200 Volts Forward Current - 2.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 2.0 1.6 Single Phase Half Wave 60Hz Resistive or inductive Load 1.2 0.8 SR220-SR260 SR270-SR2200 0.4 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 60 48 36 24 12 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C NUMBER OF CYCLES AT 60 Hz 20 10 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE SR220-SR240 SR250-SR260 SR270-SR2150 SR2200 0.1 0.01 0.2 0.4 0.6 0.8 1.0 1.1 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MILLAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 1 100 10 TJ=100 C 1 TJ=75 C 0.1 0.001 0 20 40 60 80 100 2000 SR220-SR240 SR250-SR2200 100 TJ=25 C TRANSIENT THERMAL IMPEDANCE, C/W PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF TJ=25 C 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 1000 100 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 10 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2
