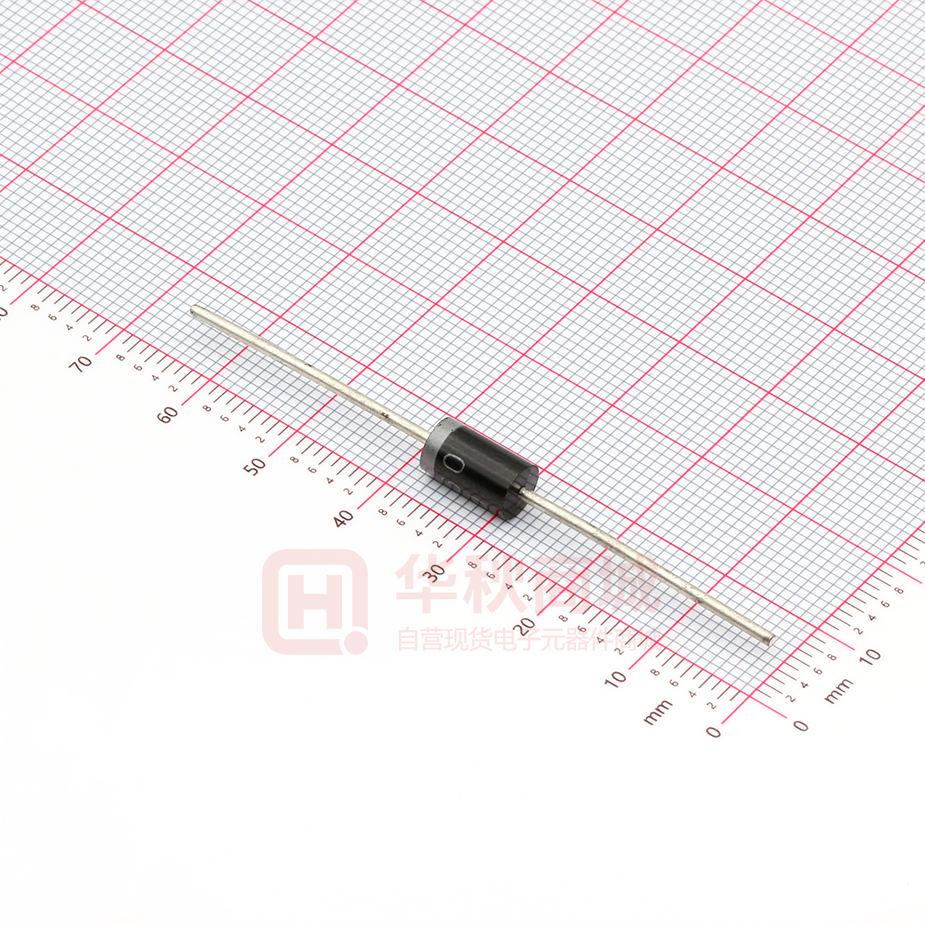

SR560

SR520 THRU SR5200 Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere SCHOTTKY BARRIER RECTIFIER Features DO-201AD  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Metal silicon junction,majority carrier conduction  Low power loss,high efficiency  High forward surge current capability  High temperature soldering guaranteed: 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.220(5.6) 0.197(5.0) DIA. 0.375 (9.50) 0.285(7.20) Mechanical Data Case : JEDEC DO-201AD Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.04 ounce, 1.10 grams 1.0 (25.4) MIN. 0.052 (1.3) 0.048 (1.2) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 5.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction and storage Storage temperature range SR SR SR SR SR SR SR SR SR SR SR 520 530 540 550 560 570 580 590 5100 5150 5200 MDD MDD MDD MDD MDD MDD MDD MDD MDD MDD MDD SR SR SR SR SR SR SR SR SR SR SR 520 530 540 550 560 570 580 590 5100 5150 5200 VRRM V RMS V DC 20 14 20 30 21 30 40 28 40 50 35 50 60 42 60 I(AV) IFSM VF 0.55 IR CJ T STG 80 56 80 90 63 90 100 150 200 70 105 140 100 150 200 V V V 5.0 A 150 A 0.70 0.5 0.85 20.0 10.0 400 500 25.0 R θ JA TJ 70 49 70 UNITS -50 to +125 -50 to +150 -50 to +150 0.95 0.2 2.0 V mA pF ℃/W ℃ ℃ Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted DN:T20526A0 http://www.microdiode.com Rev:2020A0 Page :1 SR520 THRU SR5200 Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves 5 4 Single Phase Half Wave 60Hz Resistive or inductive Load 3 2 SR520-SR560 SR570-SR5200 1 0 0 25 50 75 100 125 150 175 PEAK FORWARD SURGE CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 150 125 100 75 50 25 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C NUMBER OF CYCLES AT 60 Hz 20 10 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE SR520-SR540 SR550-SR560 SR570-SR5150 SR5200 0.1 0.01 0.2 0.4 0.6 0.8 1.0 1.1 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MILLAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 1 100 10 TJ=100 C 1 TJ=75 C 0.1 0.001 0 20 40 60 80 100 2000 TJ=25 C 100 SR520-SR540 SR550-SR5200 TRANSIENT THERMAL IMPEDANCE, C/W PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF TJ=25 C 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 1000 100 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 10 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2020A0 Page :2 SR520 THRU SR5200 Reverse Voltage - 20 to 200 Volts Forward Current - 5.0 Ampere Package Information Taping Specifications Item Symbol Specifications(mm) Component Pitch A 10.0±0.5 Inner Tape Pitch B 52.4±1.5 Component alignment Z 1.2 Max Tape width T 6.0±0.5 Exposed adhesive E 0.8 Max Body eccentricity L1-L2 1.0 Max Ammunition Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 255*74*145 1000 410*275*340 10000 Bulk Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 198*86*21 200 460*220*250 10000 Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev:2020A0 Page :3
