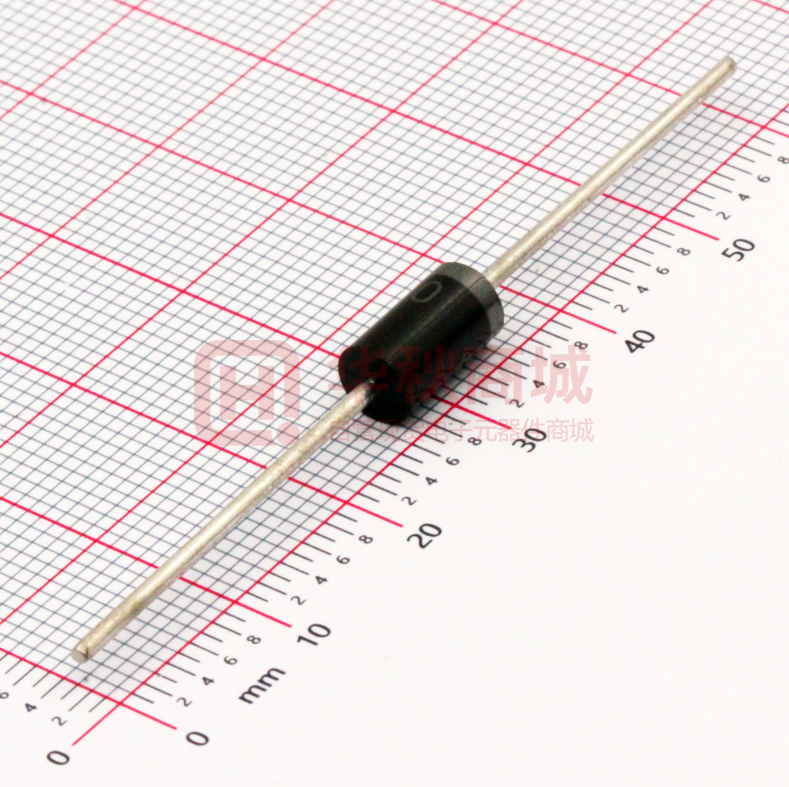

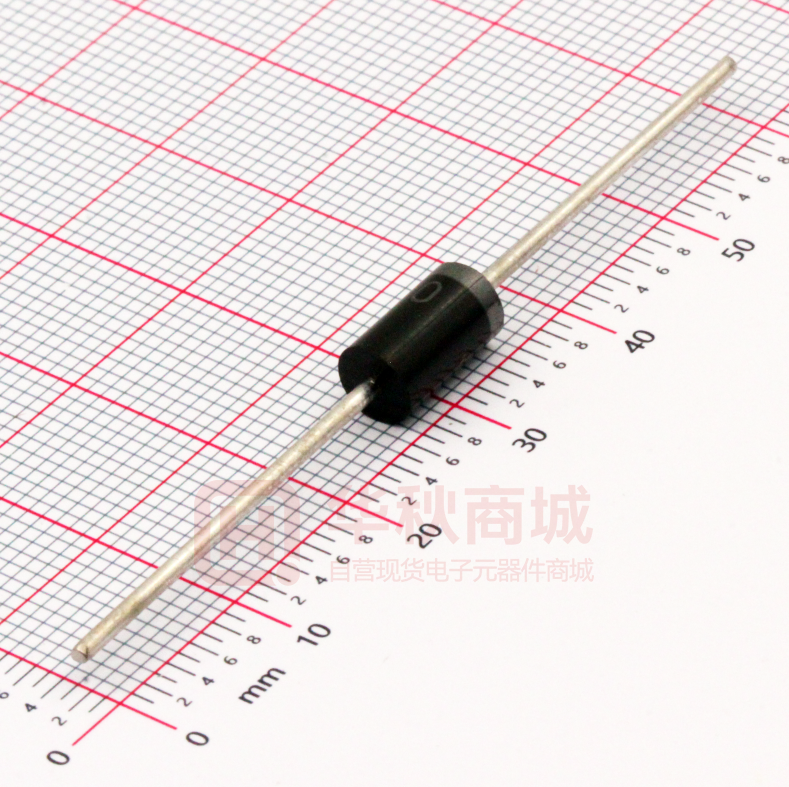

SR3200

SR320 THRU SR3200 Reverse Voltage - 20 to 200 Volts Forward Current - 3.0 Ampere SCHOTTKY BARRIER RECTIFIER Features DO-201AD  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Metal silicon junction,majority carrier conduction  Low power loss,high efficiency  High forward surge current capability  High temperature soldering guaranteed: 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.220(5.6) 0.197(5.0) DIA. 0.375 (9.50) 0.285(7.20) Mechanical Data Case : JEDEC DO-201AD Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Color band denotes cathode end Mounting Position : Any Weight : 0.04 ounce, 1.10 grams 1.0 (25.4) MIN. 0.052 (1.3) 0.048 (1.2) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) SR SR SR SR SR SR SR SR SR SR SR 320 330 340 350 360 370 380 390 3100 3150 3200 SYMBOLS MDD MDD MDD MDD MDD MDD MDD MDD MDD MDD MDD SR SR SR SR SR SR SR SR SR SR SR 320 330 340 350 360 370 380 390 3100 3150 3200 VRRM V RMS V DC Typical junction capacitance (NOTE 1) CJ Storage temperature range 40 28 40 50 35 50 60 42 60 IFSM VF Operating junction and storage 30 21 30 I(AV) Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ Typical thermal resistance (NOTE 2) 20 14 20 T STG 90 63 90 100 150 200 70 105 140 100 150 200 V V V 3.0 A 80 A 0.85 20.0 10.0 250 160 R θ JA TJ 80 56 80 0.70 0.5 0.55 IR 70 49 70 UNITS 40.0 -50 to +125 -50 to +150 -50 to +150 0.95 0.2 2.0 V mA pF ℃/W ℃ ℃ Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted http://www.microdiode.com Rev:2024A1 Page :1 SR320 THRU SR3200 Reverse Voltage - 20 to 200 Volts Forward Current - 3.0 Ampere AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves 3 2.4 Single Phase Half Wave 60Hz Resistive or inductive Load 1.8 1.2 SR320-SR360 SR370-SR3200 0.6 0 0 25 50 75 100 125 150 175 PEAK FORWARD SURGE CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 80 64 48 32 16 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C NUMBER OF CYCLES AT 60 Hz 20 10 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE SR320-SR340 SR350-SR360 SR370-SR3150 SR3200 0.1 0.01 0.2 0.4 0.6 0.8 1.0 1.1 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MILLAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 1 100 10 TJ=100 C 1 TJ=75 C 0.1 TJ=25 C 0.01 0.001 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 0 20 40 60 80 100 2000 1000 SR320-SR340 SR350-SR3200 100 TJ=25 C TRANSIENT THERMAL IMPEDANCE, C/W PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 100 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 10 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2 SR320 THRU SR3200 Reverse Voltage - 20 to 200 Volts Forward Current - 3.0 Ampere Package Information Taping Specifications Item Symbol Specifications(mm) Component Pitch A 10.0±0.5 Inner Tape Pitch B 52.4±1.5 Component alignment Z 1.2 Max Tape width T 6.0±0.5 Exposed adhesive E 0.8 Max Body eccentricity L1-L2 1.0 Max Ammunition Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 255*74*145 1000 410*275*340 10000 Bulk Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 198*86*21 200 460*220*250 10000 http://www.microdiode.com Rev:2024A1 Page :3
