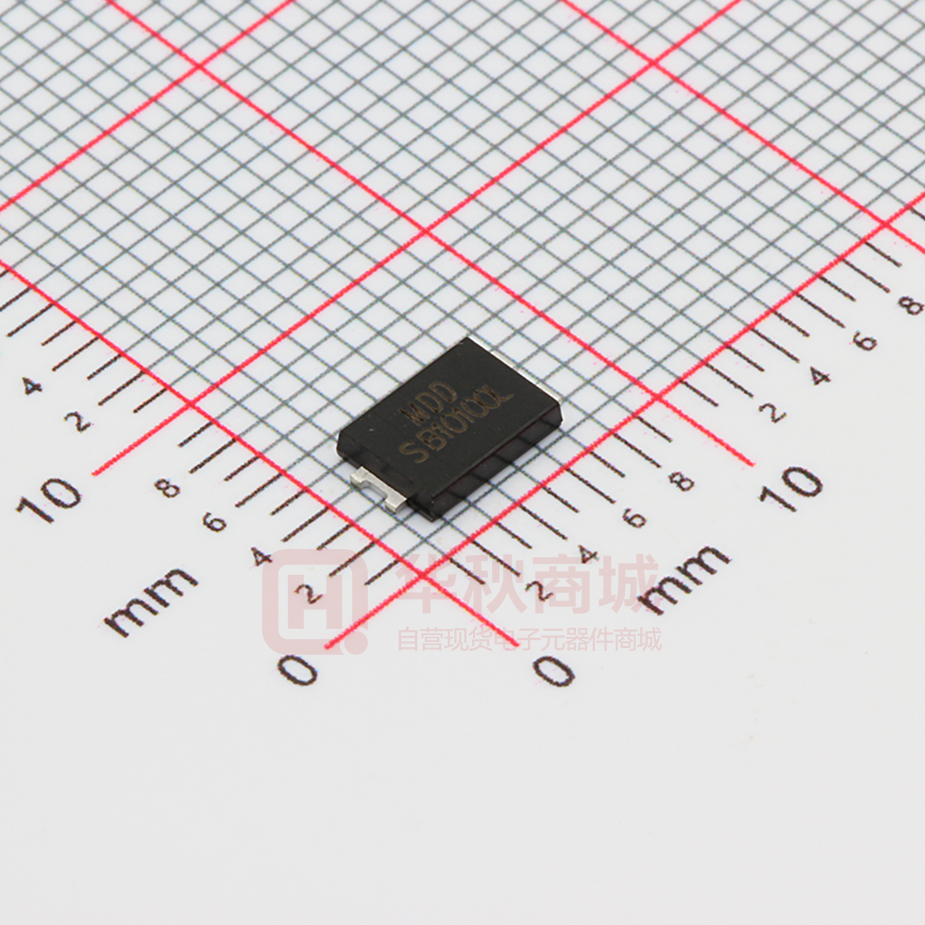

SB10100L

SB1045L THRU SB10200L Reverse Voltage - 45 to 200 Volts Forward Current -10.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features TO-277  Schottky Barrier Chip  High Thermal Reliability  Patented Super Barrier Rectifier Technology  High Forward Surge Capability  Ultra Fow Power Loss,High Efficiency  Excellent High temperature Stability  Plastic material-UL flammability 94V-0 Mechanical Data Case : JEDEC TO-277 Molded plastic body Terminals :Plated Leads Solderable per MIL-STD-202,Method 208 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.003 ounce, 0.092 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum working peak reverse voltage Maximum DC blocking voltage RMS Reverse voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge8.3ms Single Half Sine-Wave Superimposed on rated load(JEDEC Method) Forward Voltage Drop at 10.0A TA=25℃ VRRM VRWM VDC VRMS I(O) SB 1045L SB 1050L SB 1060L SB 1080L SB 10100L SB 10150L SB 10200L MDD SB 1045L MDD SB 1050L MDD SB 1060L MDD SB 1080L MDD SB 10100L MDD SB 10150L MDD SB 10200L 45 50 60 80 100 150 200 V 32 35 42 56 10 70 105 140 V A VF A 150 IFSM 0.55 0.60 Peak reverse curent TA=25℃ IR TA=125℃ at rated DC blocking voltage Typical thermal resistance RθJA RθJL Junctionto Ambient Operating junction and storage temperature range TJ,TSTG UNIT 0.75 0.3 15 80 15 -55 to +150 0.78 0.92 V mA ℃/W ℃ Note:1.Valid Provided that are kept at ambient temperature at a distance of 9.5mm from the case. 2.Fr-4pcb.2oz.Copper,minimum recommend pad layout .18.8mm×14.4.Anode pad dimensions 5.6mm×14.4m m. DN:T20519A0 http://www.microdiode.com Rev:2020A0 Page :1 SB1045L THRU SB10200L Reverse Voltage - 45 to 200 Volts Forward Current -10.0 Ampere Ratings And Characteristic Curves Fig.1 - Forward Current Derating Curve Fig2 : Instantaneous Forward Voltage 100 IF(A) Average Forward Current,I F ( AV ) (A) 12 Based on Lead Temp(T L ) SB1045L-SB1050L 8 SB1060L 10 4 SB1080L-SB10100L 1.0 0 25 5 50 75 125 100 0 150 175 Ambient Temperature,T A ( O C) TA =25 ℃ SB10150L SB10200L 0.1 0 IRRM(mA) IFSM(A) 250 0.6 0.8 1.0 VF(V) Fig4: Typical Reverse Characteristics Fig3: Surge Forward Current Capadility 300 0.4 0.2 100 10 ℃ TA =100 200 150 1.0 100 0.1 50 TA =25 0 1 2 10 20 100 Number of Cycles 0.01 0 20 40 60 80 100 VRM(%) The curve above is for reference only. http://www.microdiode.com Rev:2020A0 Page :2 SB1045L THRU SB10200L Reverse Voltage - 45 to 200 Volts Forward Current -10.0 Ampere Packing information P0 P1 unit:mm d E Item Symbol Tolerance TO-277 Carrier width Carrier length Carrier depth Sprocket hole 11" Reel outside diameter 11" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 4.45 7.0 1.60 1.55 280.00 50.0 13.00 1.75 7.50 8.00 4.00 2.00 F B A W P D2 D1 T C W1 D 0.25 12.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) TO-277 11" 3,000 5.0 6,000 340*340*43 280 380*380*380 48,000 APPROX. GROSS WEIGHT (kg) 9.0 Suggested Pad Layout Symbol Unit (mm) Unit (inch) A 0.142 B 3.60 5.35 C 1.50 0.059 D 1.85 0.073 E 4.30 0.169 0.211 Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev:2020A0 Page :3
