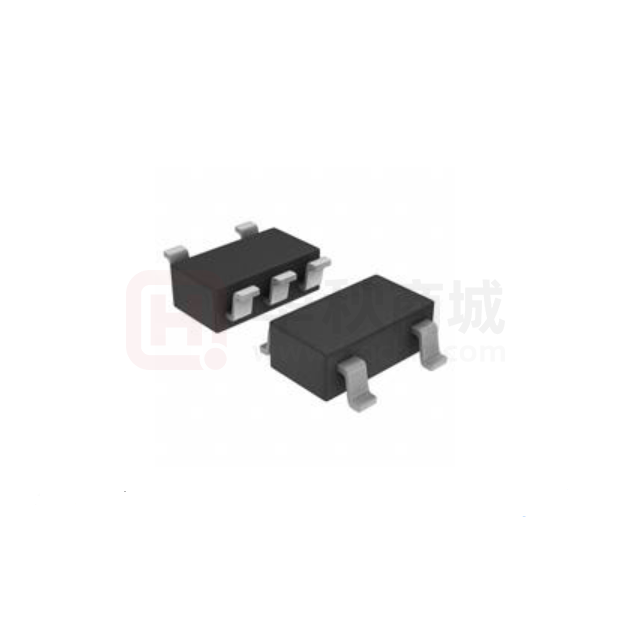

RS3236-2.5YF5

此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 Low Power, Low Dropout, 500mA RF Linear Regulators FEATURES DESCRIPTION  Low Dropout Voltage The RS3236 series low-power, low-dropout, CMOS LDO operate from 1.7V to 7.5V input voltage that can supply up to 500 mA of output current. Designed to meet the requirements of RF and analog circuits, the RS3236 series device provides low noise, high PSRR, low quiescent current, and low line and load transient response. The device is designed to work with a 1-µF input and a 1-µF output ceramic capacitor (no separate noise bypass capacitor required). An external noise bypass capacitor connected to the device’s BP pin can further reduce the noise level. Other features include a 10nA logic-controlled shutdown mode, foldback current limit and thermal shutdown protection. The RS3236 series is available in Green UTDFN-1x14, SOT23-3, SOT23-5, SOT353(SC70-5) and SOT89-3L(L-Type) package. It operates over an ambient temperature range of -40°C to +85°C.  Thermal-Overload Protection  Output Current Limit  10nA Logic-Controlled Shutdown  20μA Low Supply Current  1.7V to 7.5V Input Voltage Range  500mA Output Current  -40°C to +85°C Operating Temperature Range  Available in Green UTDFN-1x1-4, SOT23-5， SOT23-3, SOT353(SC70-5) and SOT89-3L (L-Type) Package APPLICATIONS • Cellular Telephones • Camera Modules • Modems • HiFi Audio Radio Transceivers • PLL/Synthesizer, Clocking • Medium-Current, Noise-Sensitive Applications Functional Block Diagram Current Limit IN VREF Current Limit IN OUT VREF Error amp Error amp Internal Controller Internal Controller Thermal Shutdown Thermal Shutdown EN EN BP GND REV B.5 OUT Copyright © 2017, RUNIC Technology FB GND 1 Copyright © 2017, RUNIC Technology www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 Pin Configuration and Functions (Top View) (TOP VIEW) (TOP VIEW) IN 1 GND 2 EN 3 UTDFN-1×1-4 UTDFN-1×1-4 NUMBER NAME DESCRIPTION I/O OUT O Regulator Output. 2 GND G Ground. 3 EN I 4 IN I - - SOT23-5 /SOT353(SC70-5) NUMBER 4 BP/FB SOT23-5/SOT353(SC70-5) 1 Thermal Pad 5 OUT Enable Input. A logic low reduces the supply current to 10nA. Connect to IN for normal operation. Regulator Input. Supply voltage can range from 1.7V to 7.5V. Bypass with a 1μF capacitor to GND. Connect the thermal pad to a large-area ground plane. This pad is not an electrical connection to the device ground. DESCRIPTION I/O NAME 1 IN I Regulator Input. Supply voltage can range from 1.7V to 7.5V. Bypass with a 1μF capacitor to GND. 2 GND G Ground. 3 EN I BP 4 O Feedback Pin (adjustable voltage version only). This is used to set the output voltage of the device. FB 5 OUT Enable Input. A logic low reduces the supply current to 10nA. Connect to IN for normal operation. Reference-Noise Bypass (fixed voltage version only). Bypass with a low-leakage 0.01μF ceramic capacitor for reduced noise at the output. The capacitor is recommended to be placed very close to the pin for high PSRR. O Regulator Output. 2 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 (TOP VIEW) VOUT 1 2 LBXX GND 3 VIN SOT23-3 NOTE: XX indicate Output Voltage, xx indicate DataCode For example: LB33 (VOUT=3.3V) SOT23-3 NUMBER NAME DESCRIPTION I/O 1 GND G Ground. 2 OUT O Regulator Output. 3 IN I Regulator Input. Supply voltage can range from 1.7V to 7.5V. Bypass with a 1μF capacitor to GND. VIN LBXXL 1 2 3 GND VIN VOUT SOT89-3L(L-Type) SOT89-3L(L-Type) NUMBER NAME DESCRIPTION I/O 1 GND G Ground. 2 IN I Regulator Input. Supply voltage can range from 1.7V to 7.5V. Bypass with a 1μF capacitor to GND. 3 OUT O Regulator Output. 3 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 PACKAGE/ORDERING INFORMATION MODEL VOUT (V) PINPACKAGE ORDERING NUMBER PACKAGE MARKING PACKAGE OPTION RS3236-0.8 0.8V UTDFN-1x1-4 RS3236-0.8YUTDN4 BA Tape and Reel, 10000 RS3236-1.0 1.0V UTDFN-1x1-4 RS3236-1.0YUTDN4 BB Tape and Reel, 10000 RS3236-1.2 1.2V UTDFN-1x1-4 RS3236-1.2YUTDN4 BC Tape and Reel, 10000 RS3236-1.5 1.5V UTDFN-1x1-4 RS3236-1.5YUTDN4 BD Tape and Reel, 10000 RS3236-1.8 1.8V UTDFN-1x1-4 RS3236-1.8YUTDN4 BE Tape and Reel, 10000 RS3236-2.05 2.05V UTDFN-1x1-4 RS3236-2.05YUTDN4 BF Tape and Reel, 10000 RS3236-2.5 2.5V UTDFN-1x1-4 RS3236-2.5YUTDN4 BG Tape and Reel, 10000 RS3236-2.8 2.8V UTDFN-1x1-4 RS3236-2.8YUTDN4 BH Tape and Reel, 10000 RS3236-3.0 3.0V UTDFN-1x1-4 RS3236-3.0YUTDN4 BI Tape and Reel, 10000 RS3236-3.3 3.3V UTDFN-1x1-4 RS3236-3.3YUTDN4 BJ Tape and Reel, 10000 RS3236-3.6 3.6V UTDFN-1x1-4 RS3236-3.6YUTDN4 BK Tape and Reel, 10000 RS3236-4.0 4.0V UTDFN-1x1-4 RS3236-4.0YUTDN4 BL Tape and Reel, 10000 RS3236-5.0 5.0V UTDFN-1x1-4 RS3236-5.0YUTDN4 BM Tape and Reel, 10000 RS3236-0.8 0.8V SOT23-5 RS3236-0.8YF5 LB08 Tape and Reel, 3000 RS3236-1.0 1.0V SOT23-5 RS3236-1.0YF5 LB10 Tape and Reel, 3000 RS3236-1.2 1.2V SOT23-5 RS3236-1.2YF5 LB12 Tape and Reel, 3000 RS3236-1.5 1.5V SOT23-5 RS3236-1.5YF5 LB15 Tape and Reel, 3000 RS3236-1.8 1.8V SOT23-5 RS3236-1.8YF5 LB18 Tape and Reel, 3000 RS3236-2.05 2.05V SOT23-5 RS3236-2.05YF5 LB205 Tape and Reel, 3000 RS3236-2.5 2.5V SOT23-5 RS3236-2.5YF5 LB25 Tape and Reel, 3000 RS3236-2.8 2.8V SOT23-5 RS3236-2.8YF5 LB28 Tape and Reel, 3000 RS3236-3.0 3.0V SOT23-5 RS3236-3.0YF5 LB30 Tape and Reel, 3000 RS3236-3.3 3.3V SOT23-5 RS3236-3.3YF5 LB33 Tape and Reel, 3000 RS3236-3.6 3.6V SOT23-5 RS3236-3.6YF5 LB36 Tape and Reel, 3000 RS3236-4.0 4.0V SOT23-5 RS3236-4.0YF5 LB40 Tape and Reel, 3000 RS3236-5.0 5.0V SOT23-5 RS3236-5.0YF5 LB50 Tape and Reel, 3000 RS3236-0.8 0.8V SOT353(SC70-5) RS3236-0.8YC5 LB08 Tape and Reel, 3000 RS3236-1.0 1.0V SOT353(SC70-5) RS3236-1.0YC5 LB10 Tape and Reel, 3000 RS3236-1.2 1.2V SOT353(SC70-5) RS3236-1.2YC5 LB12 Tape and Reel, 3000 RS3236-1.5 1.5V SOT353(SC70-5) RS3236-1.5YC5 LB15 Tape and Reel, 3000 RS3236-1.8 1.8V SOT353(SC70-5) RS3236-1.8YC5 LB18 Tape and Reel, 3000 RS3236-2.05 2.05V SOT353(SC70-5) RS3236-2.05YC5 LB205 Tape and Reel, 3000 RS3236-2.5 2.5V SOT353(SC70-5) RS3236-2.5YC5 LB25 Tape and Reel, 3000 RS3236-2.8 2.8V SOT353(SC70-5) RS3236-2.8YC5 LB28 Tape and Reel, 3000 RS3236-3.0 3.0V SOT353(SC70-5) RS3236-3.0YC5 LB30 Tape and Reel, 3000 RS3236-3.3 3.3V SOT353(SC70-5) RS3236-3.3YC5 LB33 Tape and Reel, 3000 RS3236-3.6 3.6V SOT353(SC70-5) RS3236-3.6YC5 LB36 Tape and Reel, 3000 RS3236-4.0 4.0V SOT353(SC70-5) RS3236-4.0YC5 LB40 Tape and Reel, 3000 RS3236-5.0 5.0V SOT353(SC70-5) RS3236-5.0YC5 LB50 Tape and Reel, 3000 4 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 MODEL VOUT (V) PINPACKAGE ORDERING NUMBER PACKAGE MARKING PACKAGE OPTION RS3236-1.35 1.35V UTDFN-1x1-4 RS3236-1.35YUTDN4 BN Tape and Reel, 10000 RS3236-1.85 1.85V UTDFN-1x1-4 RS3236-1.85YUTDN4 BO Tape and Reel, 10000 — RS3236-3.3 3.3V UTDFN-1x1-4 RS3236-3.3AYUTDN4 2.7V SOT23-5 RS3236-2.7YF5 BJ LB27 Tape and Reel, 10000 RS3236-2.7 RS3236-2.85 2.85V SOT23-5 RS3236-2.85YF5 LB285 Tape and Reel, 3000 RS3236-0.8 0.8V SOT23-3 RS3236-0.8YF3 LB08 Tape and Reel, 3000 RS3236-1.0 1.0V SOT23-3 RS3236-1.0YF3 LB10 Tape and Reel, 3000 RS3236-1.2 1.2V SOT23-3 RS3236-1.2YF3 LB12 Tape and Reel, 3000 RS3236-1.5 1.5V SOT23-3 RS3236-1.5YF3 LB15 Tape and Reel, 3000 Tape and Reel, 3000 RS3236-1.8 1.8V SOT23-3 RS3236-1.8YF3 LB18 Tape and Reel, 3000 RS3236-2.05 2.05V SOT23-3 RS3236-2.05YF3 LB205 Tape and Reel, 3000 RS3236-2.5 2.5V SOT23-3 RS3236-2.5YF3 LB25 Tape and Reel, 3000 RS3236-2.8 2.8V SOT23-3 RS3236-2.8YF3 LB28 Tape and Reel, 3000 RS3236-3.0 3.0V SOT23-3 RS3236-3.0YF3 LB30 Tape and Reel, 3000 RS3236-3.3 3.3V SOT23-3 RS3236-3.3YF3 LB33 Tape and Reel, 3000 RS3236-3.6 3.6V SOT23-3 RS3236-3.6YF3 LB36 Tape and Reel, 3000 RS3236-4.0 4.0V SOT23-3 RS3236-4.0YF3 LB40 Tape and Reel, 3000 RS3236-5.0 5.0V SOT23-3 RS3236-5.0YF3 LB50 Tape and Reel, 3000 RS3236-1.8 1.8V SOT89-3L(L-Type) RS3236-1.8YE3L LB18L Tape and Reel, 1000 RS3236-3.3 3.3V SOT89-3L(L-Type) RS3236-3.3YE3L LB33L Tape and Reel, 1000 ORDERING NUMBER PACKAGE MARKING PACKAGE OPTION MODEL VFB (V) RS3236-ADJ8 0.81 RS3236-ADJC 1.21 PINPACKAGE SOT23-5 RS3236-ADJ8YF5 LBAD8 Tape and Reel, 3000 SOT353(SC70-5) RS3236-ADJ8YC5 LBAD8 Tape and Reel, 3000 SOT23-5 RS3236-ADJCYF5 LBADC Tape and Reel, 3000 SOT353(SC70-5) RS3236-ADJCYC5 LBADC Tape and Reel, 3000 5 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1)(2) MIN MAX UNIT VIN Input voltage -0.3 8 V VEN Enable input voltage -0.3 VIN V TJ Junction temperature 150 °C PD Continuous power dissipation (3) Tstg Storage temperature (1) (2) (3) W Internally Limited -65 150 °C Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltages are with respect to the GND pin. Internal thermal shutdown circuitry protects the device from permanent damage. ESD Ratings V(ESD) Electrostatic discharge VALUE UNIT Human-body model (HBM) ±6000 V Machine model (MM) ±400 V MAX UNIT 1.7 0 7.5 VIN V 0 500 mA -40 +85 °C Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) (1) MIN VIN Input supply voltage VEN Enable input voltage IOUT Output current TJ (1) Junction temperature V All voltages are with respect to the GND pin. Thermal Information THERMAL METRIC (1) RθJA RθJC(top) Junction-to-ambient thermal resistance Junction-to-case (top) thermal resistance RθJB Junction-to-board thermal resistance ψJT Junction-to-top characterization parameter Junction-to-board characterization parameter Junction-to-case (bottom) thermal resistance ψJB RJC(bot) RS3236 RS3236 UTDFN1x1-4 SOT353 (SC70-5) RS3236 RS3236 RS3236 SOT23-5 SOT23-3 SOT89-3L (L-Type) UNIT 4 PINS 5 PINS 5 PINS 3 PINS 144.1 268 185.6 185.6 165 °C/W 137.9 171.8 104.3 104.3 88.5 °C/W 83.5 64.5 54.5 54.5 39.6 °C/W 5.3 40.5 31.0 31.0 26.5 °C/W 83.8 62.9 54.5 54.5 49.7 °C/W 71.8 N/A N/A N/A 77.7 °C/W 6 3 PINS www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 ELECTRICAL CHARACTERISTICS (VIN = VOUT (NOMINAL) + 0.5V (1), Full = -40°C to +85°C, unless otherwise noted.) PARAMETER SYMBOL Input Voltage Feedback Voltage VFB ILIM Ground Pin Current IQ MIN VDROP MAX UNITS +25°C 7.5 V +25°C -2.5 2.5 % IOUT = 0.1mA ，RS3236-3.3AYUTDN4 +25°C -1 1 % IOUT = 0.1 mA, RS3236-ADJ8 +25°C 0.79 0.81 0.83 V IOUT = 0.1 mA, RS3236-ADJC +25°C 1.18 1.21 1.24 V +25°C 500 +25°C 500 No load +25°C IOUT = 500mA VOUT=1.5V mA 800 mA 15 VOUT=1.2V Dropout Voltage (2) TYP IOUT = 0.1mA (1) Current Limit (1) TEMP 1.7(1) VIN Output Voltage Accuracy (1) Maximum Output Current CONDITIONS 20 µA 900 630 +25°C VOUT=3.3V mV 450 600 Line Regulation (1) ΔVLNR VIN = (VOUT + 0.5V) to 7.5V, IOUT = 1mA +25°C 0.1 0.2 %/V Load Regulation ΔVOUT IOUT =0.1mA to 500mA, COUT = 1µF, +25°C 25 50 mV en f = 10Hz to 100kHz, CBP = 0.01µF, COUT = 10µF, IOUT=30mA +25°C 80 µ VRMS FULL 35 ppm/℃ Output Voltage Noise Output Voltage Temperature Coefficient Power Supply Rejection Ratio ΔVOUT ILOAD = 0.1mA ΔTA × VOUT PSRR CBP = 0μF, ILOAD = 30mA, COUT = 1μF, VIN = VOUT+1V ΔVRIPPLE=0.2VP-P CBP = 10nF, ILOAD = 30mA, COUT = 1μF, VIN = VOUT+1V ΔVRIPPLE=0.2VP-P f = 217Hz 72 +25°C dB f = 1kHz 70 f = 217Hz 74 +25°C dB f = 1kHz 70 SHUTDOWN EN Input Threshold EN Input Threshold EN Input Bias Current Shutdown Supply Current Start-Up Time (4) VIH VIL VIH VIL EN = 7.5V IBL IQ(SHDN) 1.4 Full Full VIN = 7.5V IBH tSTR Full VIN = 1.7V 0.4 2.3 Full 0.8 +25°C 0.01 EN = 0V Full 0.01 EN = 0V Full 0.01 +25°C 180 COUT = 1μF, No Load 1 1 V V µA µA µs THERMAL PROTECTION Thermal Shutdown TSHDN 140 Temperature NOTES: 1. VIN = VOUT (NOMINAL) + 0.5V or 1.7V, whichever is greater. 2. The dropout voltage is defined as VIN - VOUT, when VOUT is 100mV below the value of VOUT for VIN = VOUT + 0.5V. 3. Time needed for VOUT to reach 90% of final value. 7 www.run-ic.com °C 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 TYPICAL APPLICATION CIRCUIT Typical Circuit INPUT 1.7V to 7.5V 1 Typical Circuit INPUT 1.7V to 7.5V OUTPUT IN OUT 5 CIN 1uF 4 OUTPUT IN OUT 1 CIN 1uF COUT 1uF COUT 1uF RS3236 RS3236 ON ON OFF OFF 3 BP EN 3 4 EN GND CBP GND 2 0.01uF 2 UTDFN-1×1-4 SOT23-5/SOT353(SC70-5) Typical Circuit INPUT 1.7V to 7.5V 1 CIN 1uF Typical Circuit OUTPUT IN OUT 5 1 CIN 1uF COUT 1uF RS3236 -ADJ8 ON INPUT 1.7V to 7.5V OUT 5 COUT 1uF RS3236 -ADJC R1 ON OFF OUTPUT IN R1 OFF 3 FB EN GND 3 4 FB EN GND R2 2 4 R2 2 SOT23-5/SOT353(SC70-5) SOT23-5/SOT353(SC70-5) NOTE: Choose R2 = 160kΩ to maintain a 5μA minimum load. Calculate the value for R1 using the following equation: VOUT 𝑅1 = 𝑅2 ∗ ( − 1) 0.81 NOTE: Choose R2 = 240kΩ to maintain a 5μA minimum load. Calculate the value for R1 using the following equation: VOUT 𝑅1 = 𝑅2 ∗ ( − 1) 1.21 8 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 TYPICAL PERFORMANCE CHARACTERISTICS VIN = VOUT (NOMINAL) + 0.5V, CIN = 1μF, COUT = 1μF, CBP = 0μF, TA = +25℃, unless otherwise noted. Turn On Speed with EN Pin Turn Off Speed with EN Pin 2V/div VOUT 1V/div 1V/div VEN VEN 2V/div VOUT VIN=4.3V,IOUT=0mA,VOUT=3.3V VIN=4.3V,IOUT=0mA,VOUT=3.3V Time(400us/div) Time(400us/div) Line Transient Response SHUTDOWN 2V 1V/div VIN 0V EN 3.3V 50mV/div VOUT 0V VOUT VIN=4V to 5V,IOUT=30mA Time(200us/div) Time(400us/div) Load Transient Response Load Transient Response 50mA/div 100mA/div IOUT IOUT 50mV/div 200mV/div VOUT VOUT IOUT=1mA to 300mA IOUT IOUT=50mA =50mAto to100mA 100mA Time(200us/div) Time(1ms/div) 9 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 TYPICAL PERFORMANCE CHARACTERISTICS VIN = VOUT (NOMINAL) + 0.5V, CIN = 1μF, COUT = 1μF, CBP = 0.1μF, TA = +25℃, unless otherwise noted. CURRENT LIMIT vs TEMPERATURE 900 850 3 Output Voltage(V) Current Limit(mA) 800 2.5 750 700 2 1.5 650 600 1 0.5 550 500 0 -40 -15 10 35 Temperature(℃) 60 85 0 OUTPUT VOLTAGE ACCURACY vs TEMPERATURE 0.4 1 2 3 4 5 Input Votage(V) 6 7 GROUND CURRENT vs TEMPERATURE 20 0.3 Ground Current(uA) Output Voltage Accuracy(%) OUTPUT VOLTAGE vs INPUT VOLTAGE 3.5 0.2 0.1 0 -0.1 -0.2 -0.3 -0.4 18 16 14 12 10 -40 -15 10 35 Temperature(℃) 60 85 -40 -15 10 35 Temperature(℃) 60 85 GROUND CURRENT vs LOAD CURRENT 400 Ground Current(uA) 350 300 250 200 150 100 50 0 100 200 300 400 500 Load Current(mA) 10 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 PACKAGE OUTLINE DIMENSIONS SOT23-3 D 1.90 b 2.59 E1 E 0.99 0.95 0.69 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 L A1 Symbol c θ Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950(BSC) 0.037(BSC) e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 11 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 SOT23-5 D 1.90 b 2.59 E1 E 0.99 0.95 0.69 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 L A1 Symbol c θ Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950(BSC) 0.037(BSC) e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 12 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 SOT353(SC70-5) D 1.30 b 1.9 E E1 0.75 Pin1 Index Area 0.65 0.4 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 c θ L A1 Symbol Dimensions In Millimeters L1 Dimensions In Inches Min Max Min Max A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 c 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e 0.650(BSC) 0.026(BSC) e1 1.300(BSC) 0.051(BSC) L 0.260 L1 θ 0.460 0.010 0.525 0° 0.018 0.021 8° 13 0° 8° www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 UTDFN-1x1-4 3 4 2 1 Dimensions In Millimeters Symbol MIN MOD MAX A 0.340 0.370 0.400 A1 0.000 0.020 0.050 A2 0.100REF D 0.950 1.000 1.050 D1 0.430 0.480 0.530 E 0.950 1.000 1.050 E1 0.430 0.480 0.530 b 0.170 0.220 0.270 e 0.600 0.650 0.700 f L 0.195REF 0.200 0.250 14 0.300 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS3236 SOT89-3L D 2.0 A D1 3.0 E E1 0.7 45° b1 L e 1.5 b c 1.5 e1 1.0 RECOMMENDED LAND PATTERN (Unit: mm) Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.400 1.600 0.055 0.063 b 0.320 0.520 0.013 0.020 b1 0.400 0.580 0.016 0.023 c 0.350 0.440 0.014 0.017 D 4.400 4.600 0.173 0.181 D1 1.550 REF 0.061 REF E 2.300 2.600 0.091 0.102 E1 3.940 4.250 0.155 0.167 e 1.500 BSC 0.060 BSC e1 3.000 BSC 0.118 BSC L 0.900 1.200 15 0.035 0.047 www.run-ic.com
