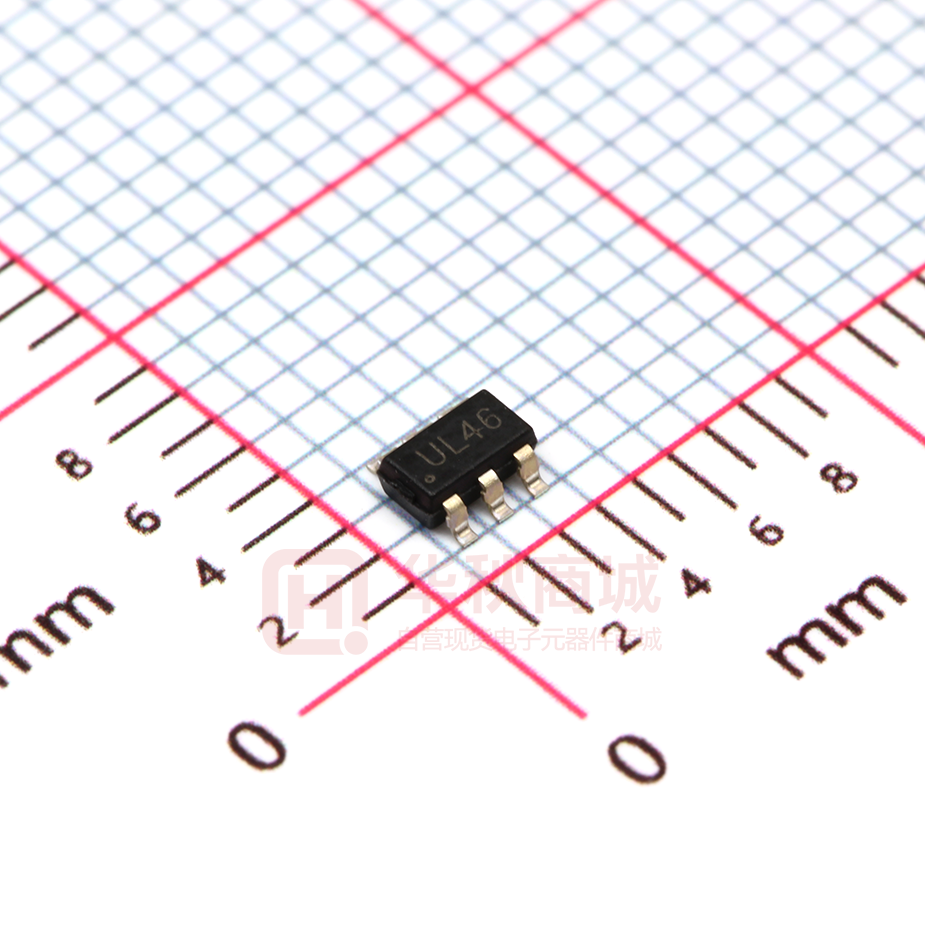

TPUSBLC6-4SC6

TPUSBLC6-4SC6 Low Capactiance 4-Line TVS Array WWW.SOT23.COM.TW Features Mechanical Characteristics       Ultra low capacitance: 0.35 pF typical (I/O to I/O) Ultra low leakage: nA level Low operating voltage: 5V Low clamping voltage Up to 4 data lines and one power line protects Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±25kV – IEC61000-4-4 (EFT) 40A (5/50ns)  ROHS Compliant              3000 USB 2.0 and USB 3.0 Ports USB OTG Digital video interface(DVI) Monitor and Flat Panel Displays PCI Express and Serial SATA Ports Gigabit Ethernet IEEE 1394 firewire ports Consumer products (STB, DVD, DSC, DVC…) BL Reel Size 7” CH PU TPUSBLC6-4SC6 Qty per Reel IC Applications Ordering Information Part Number Package: SOT23-6 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 TE Dimensions and Pin Configuration Circuit and Pin Schematic 1 1 TPUSBLC6-4SC6 Low Capactiance 4-Line TVS Array WWW.SOT23.COM.TW Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Value Symbol ESD per IEC 61000−4−2 (Air) ±25 VESD Operating Temperature Range Storage Temperature Range ±25 kV TJ −55 to +125 °C Tstg −55 to +150 °C IC ESD per IEC 61000−4−2 (Contact) Unit Electrical Characteristics (TA=25°C unless otherwise specified) Reverse Working Voltage VBR IR Clamping Voltage VC CJ CJ TE Junction Capacitance 6 CH Reverse Leakage Current Typ Max 5 VRWM Breakdown Voltage Junction Capacitance Min Note 1: I/O pins are Pin 1, 3, 4 and 6 2 Unit BL Symbol PU Parameter 0.35 Test Condition V Any I/O pin to ground V IT = 1mA, any I/O pin to ground 0.3 µA VRWM = 5V, any I/O pin to ground 20 V IPP = 3A (8 x 20µs pulse) any I/O pin to ground 0.4 pF VR = 0V, f = 1MHz, between I/O pins 0.8 pF VR = 0V, f = 1MHz, any I/O pin to ground TPUSBLC6-4SC6 Low Capactiance 4-Line TVS Array PROTECTION PRODUCTS WWW.SOT23.COM.TW Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 10% BL 20 90% IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 Ambient Temperature –TA (ºC) 3 tr = 0.7~1ns 30ns 60ns Time (ns) TPUSBLC6-4SC6 Low Capactiance 4-Line TVS Array TE CH PU BL IC WWW.SOT23.COM.TW 4
