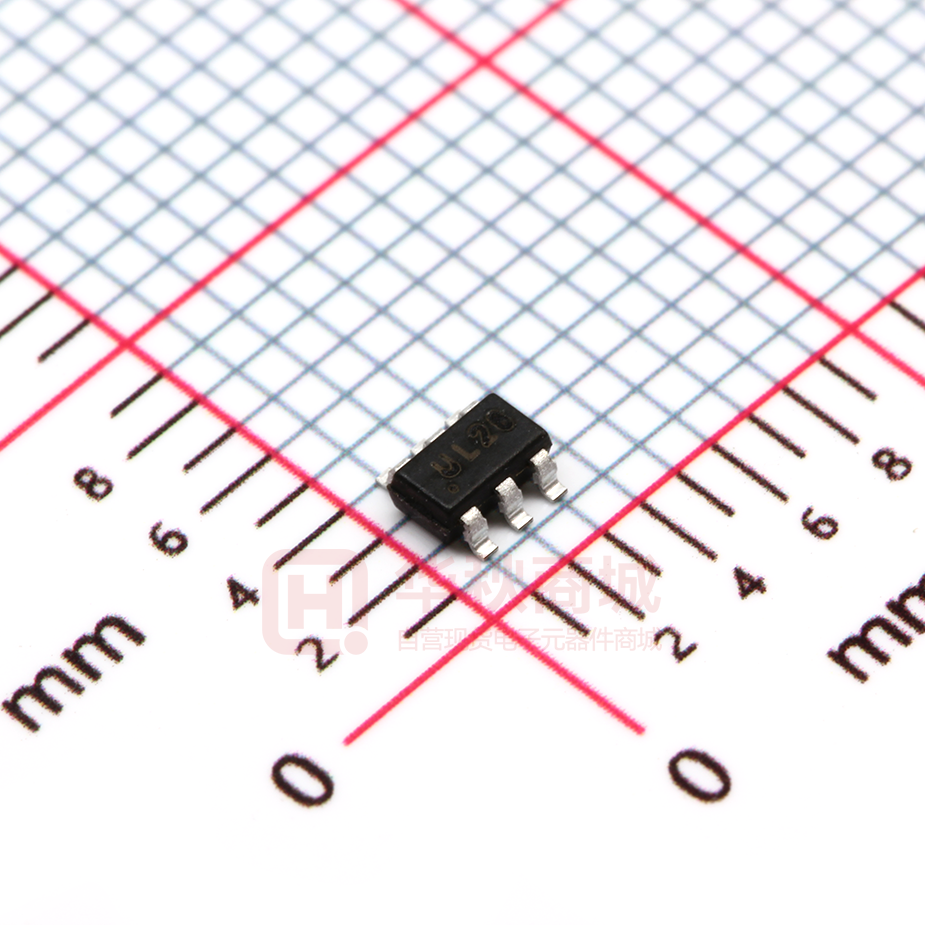

TPUSBLC6-2SC6

TPUSBLC6-2SC6 Low Capacitance 2-Line ESD Protection www.sot23.com.tw Features ● ● ● ● Ultra low leakage: nA level Operating voltage: 5V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) –IEC61000-4-5 (Lightning) 6A (8/20μs) RoHS Compliant ϥ Package: SOT23-6 ϥ ʳʳ Lead Finish: Matte Tin ϥ UL Flammability Classification Rating 94V-0 ϥ Pb-Free, Halogen Free, RoHS/WEEE Compliant Applications ϥ USB 2.0 interface IC ● Mechanical Characteristics ϥ 10/100 Ethernet ϥ Personal digital assistants (PDA's) ϥ Portable instrumentation ϥ Digital cameras Ordering Information Reel Size 3000 7” TE CH TPUSBLC6-2SC6 Qty per Reel PU Part Number BL ϥ Notebooks, Desktops and Servers Dimensions and Pin Configuration A I/O1 VBUS I/O2 I/O1 GND I/O2 1 TPUSBLC6-2SC6 Low Capacitance 2-Line ESD Protection www.sot23.com.tw Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 150 W Peak Pulse Current (8/20µs) Ipp 6 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ −55 to +125 °C Tstg −55 to +150 °C IC Storage Temperature Range kV ±30 Symbol Reverse stand-off voltage TE Clamping voltage (tp=8/20ȝs) Typ 6 Max Unit 5 V 9 V VBR IBR=1mA IR VR=5V 0.1 ȝA VC IPP=1A 10 V VC IPP=6A 15 V CJ 0Vdc,f=1MHz Between I/O pins and GND 0.8 1 pF CJ 0Vdc,f=1MHz I/O to I/O 0.35 0.4 pF CH Clamping voltage (tp=8/20ȝs) Min VRWM Reverse breakdown voltage Reverse leakage current Test Condition PU Rating Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) Junction capacitance 2 TPUSBLC6-2SC6 Low Capacitance 2-Line ESD Protection www.sot23.com.tw PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 10% BL 20 90% IC tr Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 150 Ambient Temperature –TA (ºC) 3 tr = 0.7~1ns 30ns 60ns Time (ns) TPUSBLC6-2SC6 Low Capacitance 2-Line ESD Protection www.sot23.com.tw Outline Drawing - SOT23-6 A e1 D DIM N H EI 1 E 0.25 L e DETAIL A BL D aaa C A2 A SEE DETAIL A1 C A-B D CH bxN bbb A SIDE VIEW PU C 01 (L1) B SEATING PLANE A A1 A2 b c D E1 E e e1 L L1 N 01 aaa bbb ccc c GAGE PLANE 2 ccc C 2X N/2 TIPS H IC 2X E/2 TE Land Pattern - SOT23-6 X DIM (C) G C G P X Y Z Z Y P 4 DIMENSIONS INCHES MILLIMETERS (.098) .055 .037 .024 .043 .141 (2.50) 1.40 0.95 0.60 1.10 3.60 DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX .057 .035 .000 .006 .035 .045 .051 .010 .020 .003 .009 .110 .114 .118 .060 .063 .069 .110 BSC .037 BSC .075 BSC .012 .018 .024 (.024) 6 0° 10° .004 .008 .008 1.45 0.90 0.15 0.00 .90 1.15 1.30 0.25 0.50 0.22 0.08 2.80 2.90 3.00 1.50 1.60 1.75 2.80 BSC 0.95 BSC 1.90 BSC 0.30 0.45 0.60 (0.60) 6 0° 10° 0.10 0.20 0.20
