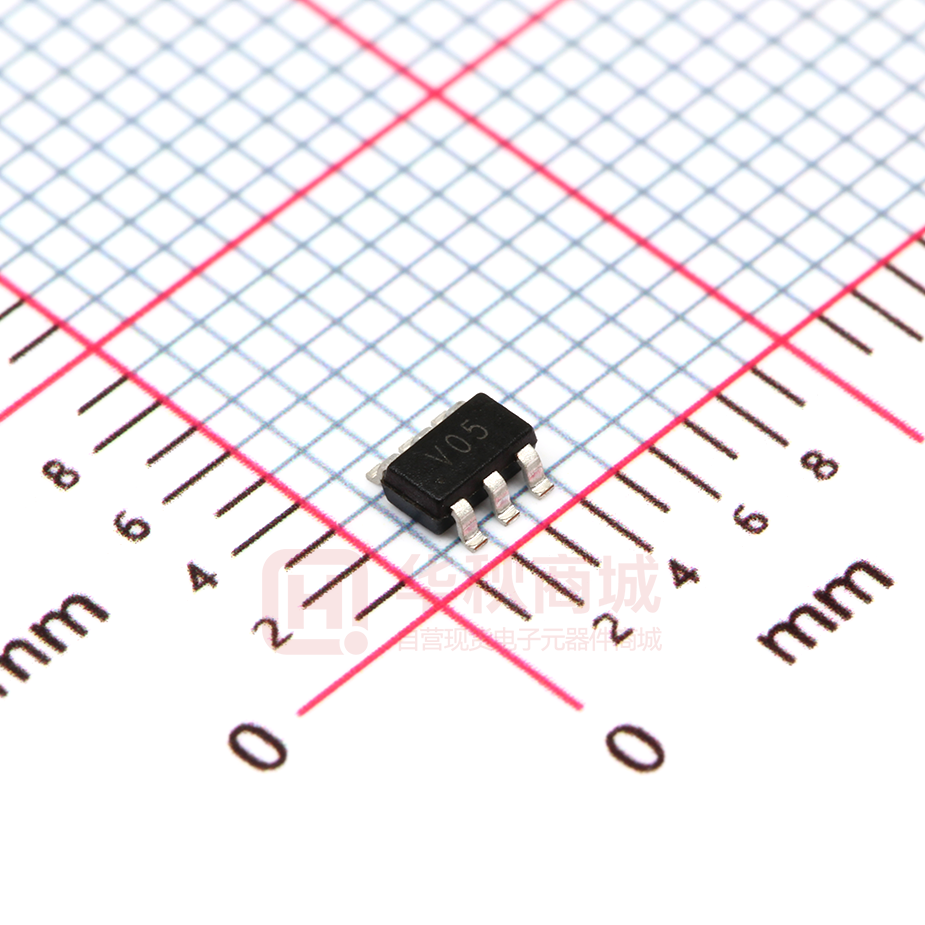

TPSRV05LC

TPSRV05LC Low Capactiance 4-Line TVS Array WWW.SOT23.COM.TW Features Mechanical Characteristics       Ultra low capacitance: 0.3pF typical (I/O to I/O) Ultra low leakage: nA level Low operating voltage: 5V Low clamping voltage Up to 4 data lines and one power line protects Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) : 3A(8/20μs)  ROHS Compliant              USB 2.0 and USB 3.0 Ports USB OTG Digital video interface(DVI) Monitor and Flat Panel Displays PCI Express and Serial SATA Ports Gigabit Ethernet IEEE 1394 firewire ports Consumer products (STB, DVD, DSC, DVC…) BL 3000 Reel Size 7” CH PU TPSRV05LC Qty per Reel IC Applications Ordering Information Part Number Package: SOT23-6 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 TE Dimensions and Pin Configuration Circuit and Pin Schematic 1 1 WWW.TECHPUBLIC.COM.TW TPSRV05LC Low Capactiance 4-Line TVS Array WWW.SOT23.COM.TW Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power（tp=8/20μs） PPP 60 W Peak Pulse Current（tp=8/20μs） IPP 3 A ESD per IEC 61000−4−2 (Air) ±30 VESD Operating Temperature Range Storage Temperature Range kV ±25 TJ −55 to +125 °C Tstg −55 to +150 °C IC ESD per IEC 61000−4−2 (Contact) Electrical Characteristics (TA=25°C unless otherwise specified) Reverse Working Voltage VBR IR Clamping Voltage VC 6 CH Reverse Leakage Current Typ VC CJ TE Junction Capacitance Junction Capacitance Max 5 VRWM Breakdown Voltage Clamping Voltage Min CJ Unit BL Symbol PU Parameter 0.3 Test Condition V Any I/O pin to ground V IT = 1mA, any I/O pin to ground 0.5 µA VRWM = 5V, any I/O pin to ground 15 V IPP = 1A (8 x 20µs pulse) any I/O pin to ground 20 V IPP = 3A (8 x 20µs pulse) any I/O pin to ground 0.4 pF VR = 0V, f = 1MHz, between I/O pins 0.8 pF VR = 0V, f = 1MHz, any I/O pin to ground Note 1: I/O pins are Pin 1, 3, 4 and 6 2 WWW.TECHPUBLIC.COM.TW TPSRV05LC Low Capactiance 4-Line TVS Array PROTECTION PRODUCTS WWW.SOT23.COM.TW Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 Time (ns) 30ns 60ns CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power tr = 0.7~1ns PU t - Time ( s) Fig3. 10% BL 20 90% IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) 3 WWW.TECHPUBLIC.COM.TW TPSRV05LC Low Capactiance 4-Line TVS Array TE CH PU BL IC WWW.SOT23.COM.TW 4 WWW.TECHPUBLIC.COM.TW
