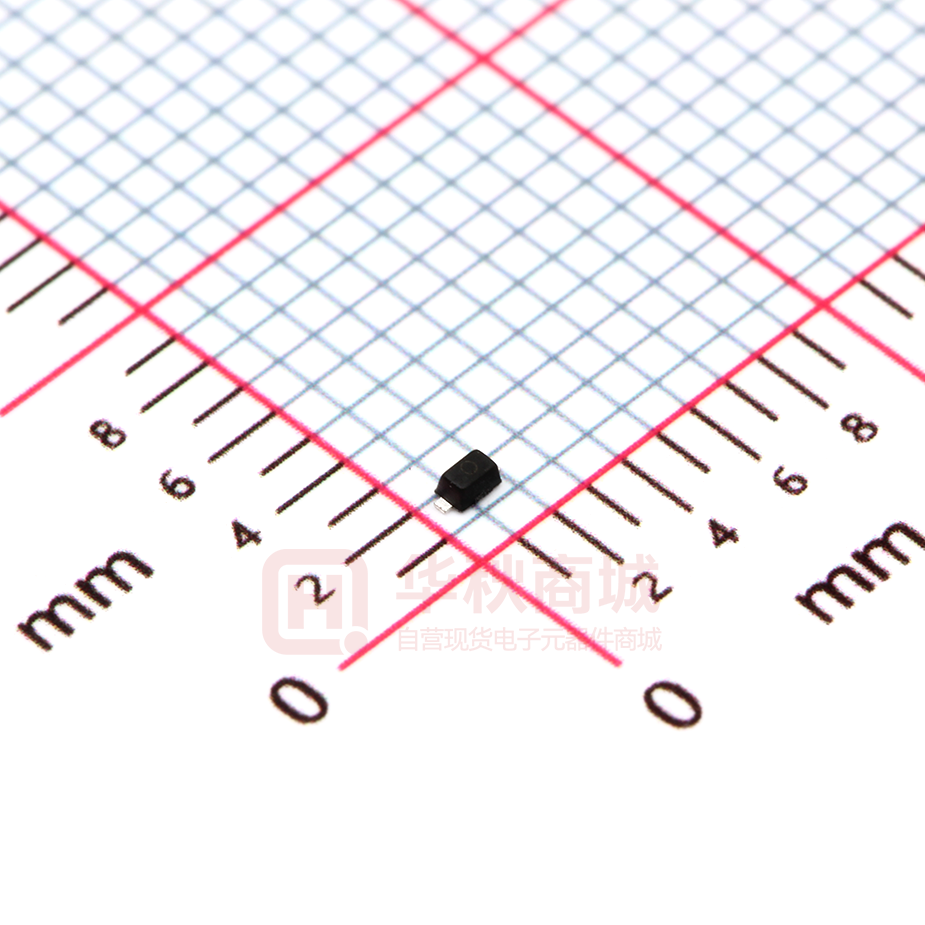

TPSPE0521D52RGB

TPSPE0521D52RGB Mechanical Characteristics • Ultra low capacitance: 5pF typical • Package: SOD-523(0603) • Ultra low leakage: nA level • Lead Finish: NiPdAu • Low operating voltage: 5V • Case Material: “Green” Molding Compound. • UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 3 per J-STD-020 • Low clamping voltage • 2-pin leadless package – IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV • – IEC61000-4-5 (Lightning) 4A (8/20μs) • • Qty per Reel Reel Size TPSPE0521D52RGB 3000 7” Display Ports • MDDI Ports • USB Ports • Digital Video Interface (DVI) TE CH PU Part Number Smart phones BL Ordering Information IC • Complies with following standards: Dimensions and Pin Configuration 1 WWW.TECHPUBLIC.COM.TW TPSPE0521D52RGB Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 80 W Peak Pulse Current (8/20µs) IPP 4 A ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Clamping Voltage VRWM Junction Capacitance Tstg −55 to +150 °C Test Condition Min Typ Max Unit 5.0 V 8.5 V VRWM = 5.0V 500 nA VC IPP = 1A (8 x 20µs pulse) 10 V VC IPP = 4A (8 x 20µs pulse) 13 V CJ VR = 0V, f = 1MHz 10 pF VBR IR TE Clamping Voltage °C PU Reverse Leakage Current −55 to +125 IT = 1mA 6.0 7.5 CH Breakdown Voltage TJ BL Symbol Reverse Working Voltage kV ±20 IC Storage Temperature Range Parameter ±20 VESD 5 2 WWW.TECHPUBLIC.COM.TW TE CH PU BL IC TPSPE0521D52RGB WWW.TECHPUBLIC.COM.TW 3 TPSPE0521D52RGB TE CH PU (0603) BL IC (0603) WWW.TECHPUBLIC.COM.TW 4
