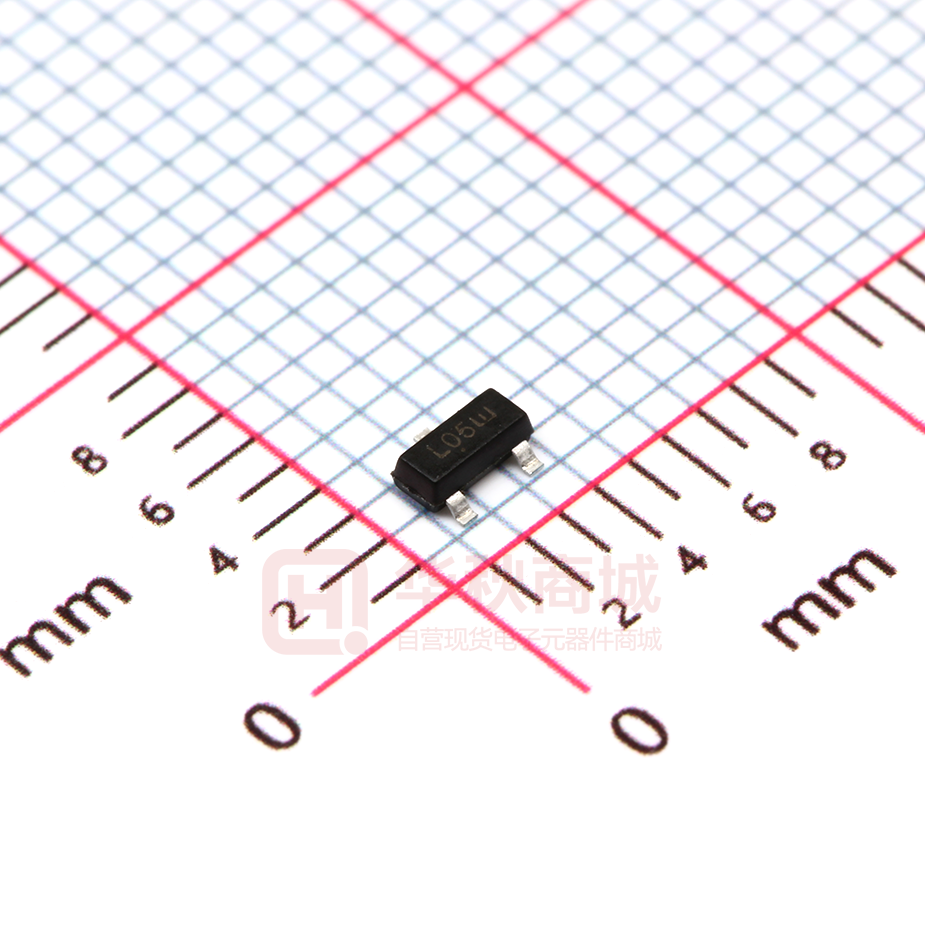

TPSMS05T1G

TPSMS05T1G 4-Line TVS Array WWW.SOT23.COM.TW Features Mechanical Characteristics       Ultra low leakage: nA level  Low operating voltage: 5V  Low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns)  ROHS Compliant Package: SOT23-6 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 ‹ ‹ ‹ ‹ ‹ ‹ ‹ Part Number 3000 Reel Size 7” CH PU TPSMS05T1G Qty per Reel Cell phone Handsets and Accessories Microprocessor Based Equipment Personal Digital Assistants (PDA’s) and Pagers Desktops PC and Servers Notebook, Laptop, and Palmtop Computers Portable Instrumentation Peripherals BL Ordering Information IC Applications TE Dimensions and Pin Configuration W 1 TPSMS05T1G 4-Line TVS Array WWW.SOT23.COM.TW Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 150 W Peak Pulse Power (8/20μs) (Vcc-GND) ESD per IEC61000-4-2 (Air) ±30 VESD ESD per IEC61000-4-2 (Contact) kV ±30 TJ -55 to +125 ℃ Storage Temperature Range Tstg -55 to +150 ℃ IC Operating Temperature Range Electrical Characteristics (TA=25°C unless otherwise specified) Typ Max VRWM Unit Test Condition 5 V 6 8.5 V IT=1mA Breakdown Voltage VBR Leakage Current ILeak 100 nA VRWM=5V Clamping Voltage VC 11 V IPP=4.5A,Tp=8/20μs Clamping Voltage CH Reverse Working Voltage Min BL Symbol PU Parameter 14 V IPP=10A,Tp=8/20μs 90 pF VR=0V, f=1MHz, pF VR=0V, f=1MHz, VC Junction Capacitance (I/O to I/O ) CJ TE (I/O to GND) Junction Capacitance 60 30 CJ 2 TPSMS05T1G 4-Line TVS Array WWW.SOT23.COM.TW PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 10% BL 20 90% IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 Ambient Temperature –TA (ºC) 3 tr = 0.7~1ns 30ns 60ns Time (ns) TPSMS05T1G 4-Line TVS Array TE CH PU BL IC WWW.SOT23.COM.TW 4
