TPSM24CANB-02HTG

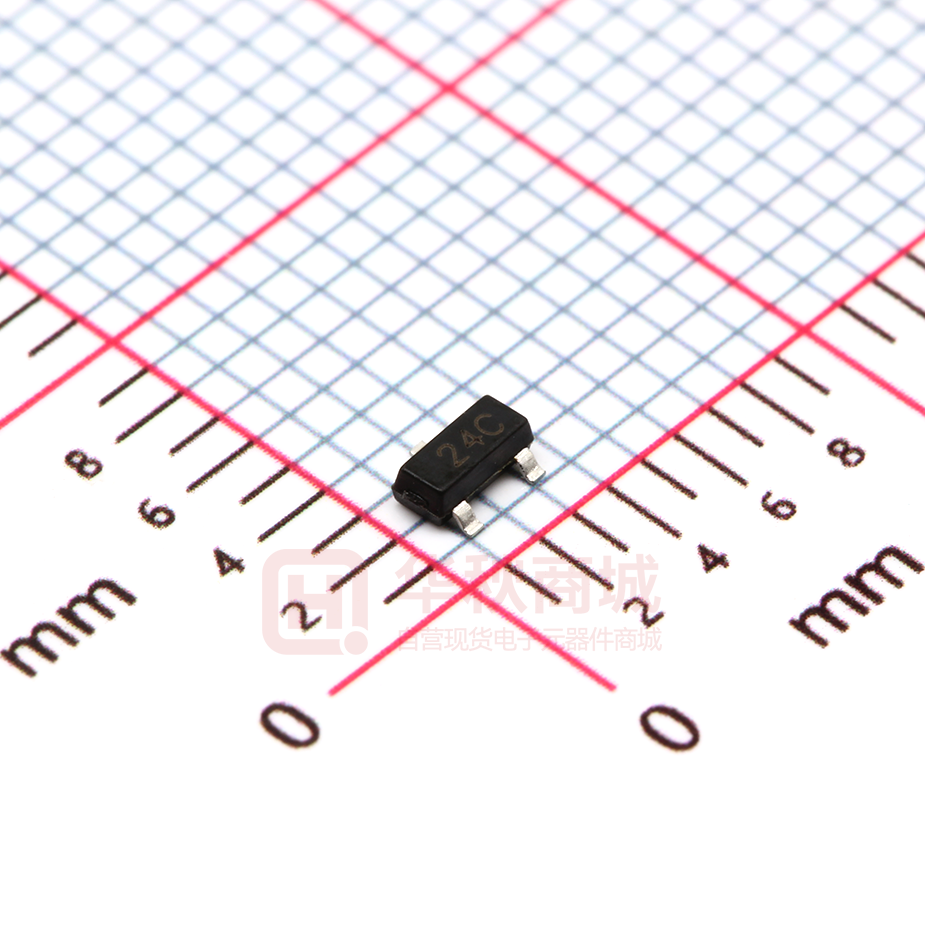

TPSM24CANB-02HTG Can bus Esd Protection Diode www.sot23.com.tw Features Mechanical Characteristics  250W peak pulse power(8/20µs)  SOT-23 package  Molding compound flammability rating:  UL 94V-0  Packaging: Tape and Reel per EIA 481  Protects two bi-directional lines  Ultra low leakage：nA level  Operating voltage：24V  Low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns)   Shipping Qty : 3000pcs/7Inch Tape & Reel - - (Lightning)5A (8/20 μs) – IEC61000-4-5 Applications  RoHS Compliant 子  CAN Bus Protection 舟 电  Automotive Appllcatrons 台 Dimensions and Pin Configuration 1 3 2 1 TPSM24CANB-02HTG Can bus Esd Protection Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 250 W Peak Pulse Power(8/20µs) ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Symbol Reverse Working Voltage Breakdown Voltage Min Typ VRWM VBR IR Clamping Voltage VC Clamping Voltage VC Peak Pulse Current IPP Junction Capacitance CJ Max Unit 24 V 32 V IT = 1mA 0.08 uA VRWM = 24V V IPP = 1A (8 x 20µs pulse) 50 V IPP = 5A (8 x 20µs pulse) 5.5 A tp = 8/20µs pF VR = 0V, f = 1MHz, Pin 1 to Pin 2 33 17 台 舟 Reverse Leakage Current 26.5 电 Parameter 子 Electrical Characteristics (TA=25°C unless otherwise specified) 2 Test Condition TPSM24CANB-02HTG Can bus Esd Protection Diode www.sot23.com.tw 电 子 Typical Performance Characteristics (TA=25°C unless otherwise Specified) 舟 台 % Of Rated Power FIGURE 3 3 TPSM24CANB-02HTG Can bus Esd Protection Diode www.sot23.com.tw Outline Drawing - SOT23 D A DIM e1 H 3 B E1 GAUGE PLANE SEATING PLANE E 0 c 0.25 C L L1 DETAIL A 1 2 bxN bbb C A B A2 A 3X 子 e aaa C 台 舟 C 电 A1 SEE DETAIL A SIDE VIEW SEATING PLANE Land Pattern - SOT23 X Y DIM Z G Y C C E E1 G X Y Z E E1 4 DIMENSIONS INCHES MILLIMETERS (.087) .037 .075 .031 .039 .055 .141 (2.20) 0.95 1.90 0.80 1.00 1.40 3.60 A A1 A2 b c D E E1 e e1 L L1 N 0 aaa bbb DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .035 .000 .035 .012 .003 .110 .082 .047 .015 0° .037 .114 .093 .051 .075 .037 .020 .022 3 .004 .008 .044 .004 .040 .020 .007 .120 .104 .055 .024 8° 0.89 1.12 0.01 0.10 0.88 0.95 1.02 0.30 0.51 0.08 0.18 2.80 2.90 3.04 2.10 2.37 2.64 1.20 1.30 1.40 1.90 BSC 0.95 BSC 0.40 0.50 0.60 (0.55) 3 0° 8° 0.10 0.20
