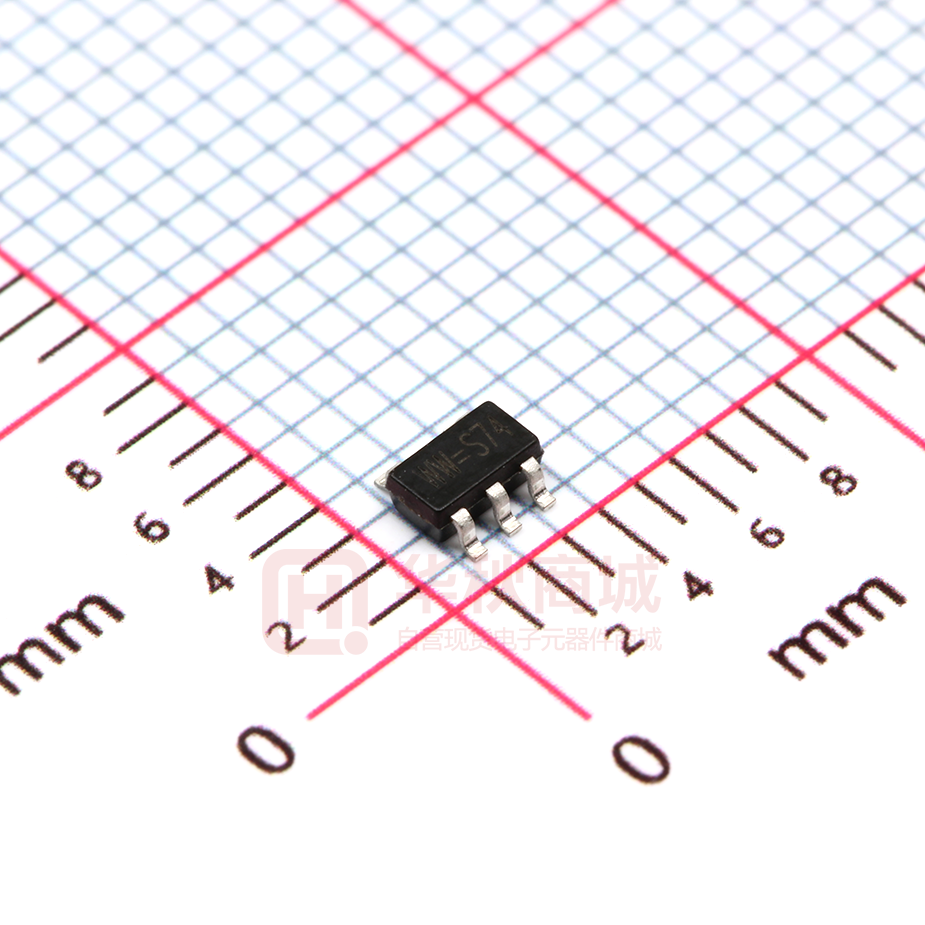

TPRT90 13 Series 500 0 mA H igt PSRR Voltage Reaulators www.sot23.com.tw The TPRT9013 is available in 5pin SOT23-5 Package .t The TPRT9013 is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V Quiescent Current: 60uA  CDM/GSM mobile phone  PSRR:75dB@1KHz  PDAs /MP3  < 1uA current at shutdown mode  Audio/Video equipment  Output voltage accuracy: tolerance ±2%  Output current:500mA(Typ.)  SOT23 -5 package BL PU Ordering Information IC  GB:SOT23-5 Package TE CH TPRT90 13-33GB  Output voltage: 33=3.3V 50=5.0V 28=2.8V 30=3.0V XX=X.XV 1 . TPRT90 13 Series 500 0 mA H igt PSRR Voltage Reaulators www.sot23.com.tw CH PU BL IC BLOCK DIAGRAM TE PIN CONFIGURATION VOUT CE SOT23-5 2 Pin Name Function VIN Supply power GND Ground CE Enable pin NC NC VOUT Voltage output TPRT90 13 Series 500 0 mA H igt PSRR Voltage Reaulators www.sot23.com.tw Absolute Maximum Rating ( TA=25°C Parameter unless otherwise noted) Symbol Input Voltage VIN Output Voltage VOUT Output Current Iout Maximum Rating 7 mA 600 SOT-23-5 250 Operating Ambient Temperature Topr -40～+85 Storage Temperature Tstg -40～+125 Electrical Characteristics V VSS-0.3～VIN+0.3 PD Power Dissipation Unit mW °C ( T =25°C unless otherwise noted) O (Vin=Vout+1V,Cin=Cout=1uF,Ta=25 C) CONDITIONS Output Voltage VOUT(E) (Note 2) IOUT=40mA, VIN=Vout+1V Input Voltage VIN Supply Current Standby Current X 0.98 VOUT (T) (Note 1) MAX UNITS X 1.02 V 7.0 V VIN=Vout+1V 500 mA VCE VIN=Vout+1V 1.1 V 50 mV Vdif1 Vdif2 VIN=Vout+1V, 1mA≤IOUT≤100mA IOUT =100mA IOUT =200mA 100 300 mV mV ISS VIN=Vout+1V 60 μA ICEL Vce＝0V 1 μA IOUT =40mA Vout+1V ≤VIN≤8V 0.03 %/V 50 uVrms 70 dB ∆VOUT ∆VOUT ∆VIN • VOUT Output Noise en TE Line Regulation Ripple Rejection Rate TYP IOUTmax CH PU Max. Output Current CE Enable Voltage Load Regulation Dropout Voltage (Note 3) MIN IC SYMBOL BL PARAMETER PSRR IOUT =40mA， 300Hz~50kHz Vin= [Vout+1]V +1Vp-pAC IOUT =40mA,f=1kHz 3 TPRT90 13 Series 500 0 mA H igt PSRR Voltage Reaulators www.sot23.com.tw TYPICAL APPLICATION VIN CIN 1uF VOUT VIN VOUT COUT 1uF CE TE CH PU BL IC GND 4 TPRT90 13 Series 500 0 mA H igt PSRR Voltage Reaulators www.sot23.com.tw Package informantion TE CH PU BL IC SOT23-5 5
