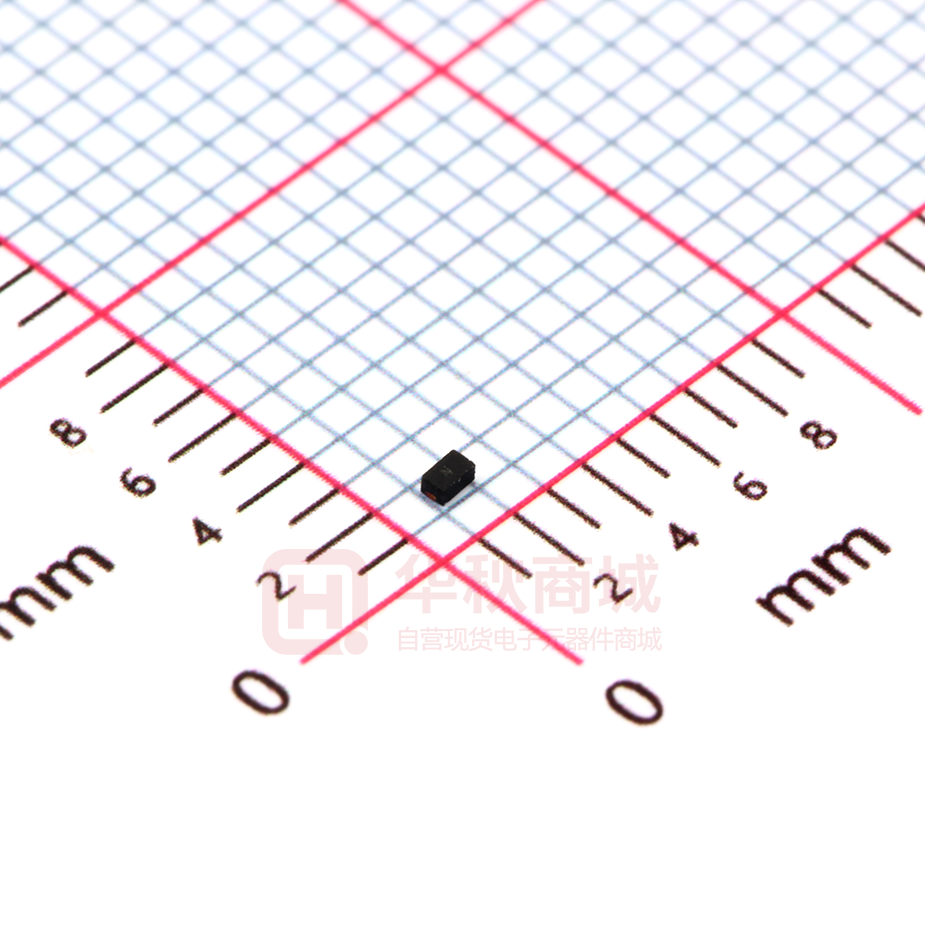

TPRCLAMP0521P

TPRCLAMP0521P 1-Line Bi-directional TVS Diode www.sot23.com.tw Features Mechanical Characteristics ⚫ Package: DFN1006-2 (0402) ⚫ Lead Finish: Matte Tin ⚫ Ultra small package: 1.0x0.6x0.5mm ⚫ Ultra low capacitance:0.3pF typical ⚫ Case Material: “Green” Molding Compound. ⚫ Moisture Sensitivity: Level 3 per J-STD-020 IC ⚫ Ultra low leakage: nA level ⚫ Low operating voltage: ±5V ⚫ Terminal Connections: See Diagram Below ⚫ Low clamping voltage BL ⚫ 2-pin leadless package Applications ⚫ Complies with following standards: ⚫ – IEC 61000-4-2 (ESD) immunity test ⚫ Cellular Handsets & Accessories Air discharge: ±20kV Contact discharge: ±15kV - - (Lightning)4A (8/20 μs) ⚫ – IEC61000-4-5 ⚫ RoHS Compliant Part Number TPRCLAMP0521P PU ⚫ USB Ports TE Ordering Information CH ⚫ Lead Finish: NiPdAu ⚫ Digital Visual Interface (DVI) ⚫ Display Port ⚫ MDDI Ports Qty per Reel Reel Size 3000 OR 3000 10000 7” Dimensions and Pin Configuration WWW.TECHPUBLIC.COM.TW TPRCLAMP0521P 1-Line Bi-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 70 W Peak Pulse Current (8/20µs) Ipp 4 A ESD per IEC 61000−4−2 (Air) ±20 VESD ESD per IEC 61000−4−2 (Contact) TJ −55 to +125 °C Tstg −55 to +150 °C IC Operating Temperature Range kV ±15 BL Storage Temperature Range Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Reverse Working Voltage Junction Capacitance Unit Test Condition V 9.0 V IR 0.08 uA VC 9 V Ipp=1A(8x 20us pulse) 15 V Ipp=4A(8x 20us pulse) pF VR = 0V, f = 1MHz 6.5 TE Clamping Voltage Max 5 VBR Reverse Leakage Current Clamping Voltage VRWM Typ 7.5 CH Breakdown Voltage Min PU Parameter VC CJ 0.3 2 IT = 1mA VRWM = 5V WWW.TECHPUBLIC.COM.TW TPRCLAMP0521P 1-Line Bi-directional TVS Diode www.sot23.com.tw TE CH PU BL IC Typical Performance Characteristics (TA=25°C unless otherwise Specified) WWW.TECHPUBLIC.COM.TW 3 TPRCLAMP0521P 1-Line Bi-directional TVS Diode www.sot23.com.tw DFN1006-2 Package Outline Drawing (0402) h h A A1 0.00 0.02 0.05 0.000 0.001 0.002 b 0.45 0.50 0.55 0.018 0.020 0.022 c 0.12 0.15 0.18 0.005 0.006 0.007 D 0.95 1.00 1.05 0.037 0.039 0.041 SYM - b E - DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.45 0.50 0.55 0.018 0.020 0.022 L A1 c A Bottom View 0.65 BSC BL e IC e D 0.026 BSC 0.55 0.60 0.65 0.022 0.024 0.026 L 0.20 0.25 0.30 0.008 0.010 0.012 h 0.07 0.12 0.17 0.003 0.005 0.007 ╋ Y3 Y2 TE Suggested Land Pattern CH PU E Y1 SYM Z DIMENSIONS MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 ╋ X 4 WWW.TECHPUBLIC.COM.TW
