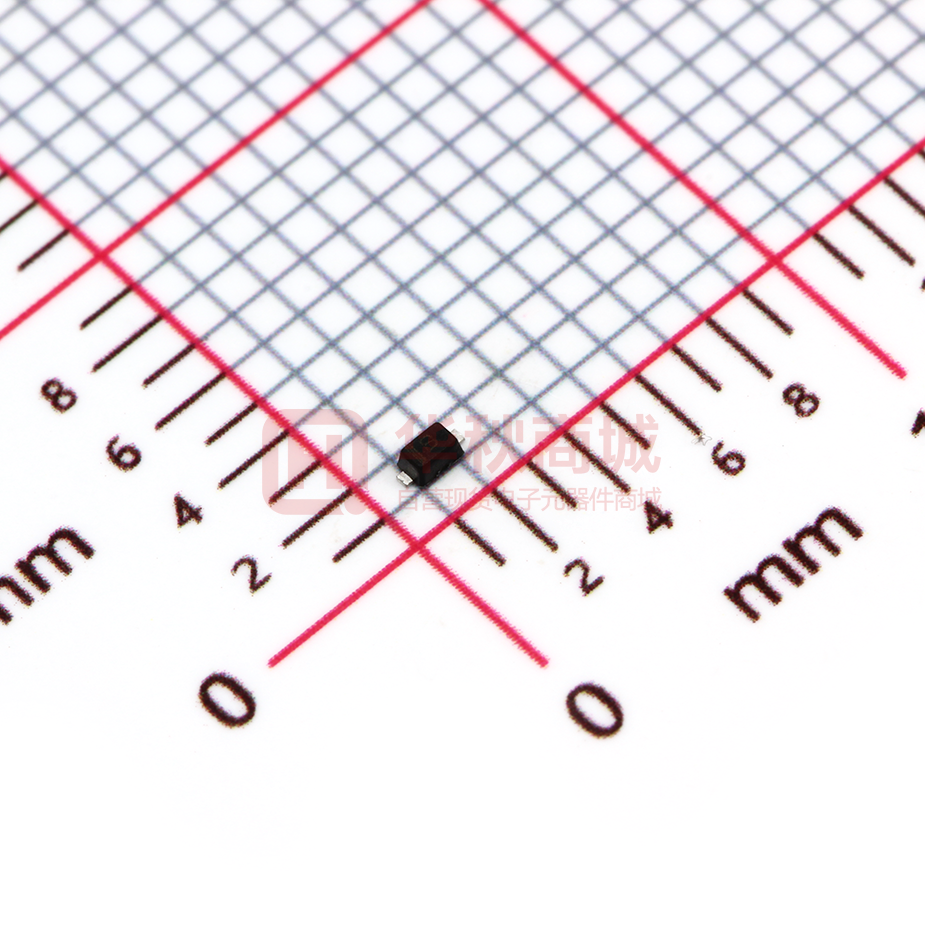

TPRB520S-30

TPRB520S-30 Schottky barrier diode www.sot23.com.tw Features Applications  Low IR.  High reliability.  Small surface mounting. Low current rectification IC ● PU BL SOD523 Parameter CH Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Symbol Limits Unit VR 30 V Mean rectifying current IO 200 mA Peak forward surge current IFSM 1 A Total device dissipation PT 200 mW Junction and storage temperature Tj ,Tstg -40 to +125 ℃ TE DC reverse voltage Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Forward voltage VF Reverse current IR Min. Max. Unit Conditions 0.6 V IF=200mA 1  VR=10V - WWW.TECHPUBLIC.COM.TW 1 TPRB520S-30 Schottky barrier diode www.sot23.com.tw Package Outline Dimensions Dimensions In Millimet IC SYMBOL MIN MAX 1.10 1.30 B 0.70 0.90 C 0.50 0.70 D 0.25 0.35 J 0.07 0.20 K 0.15 0.25 S 1.50 1.70 TE CH PU BL A 2 WWW.TECHPUBLIC.COM.TW
