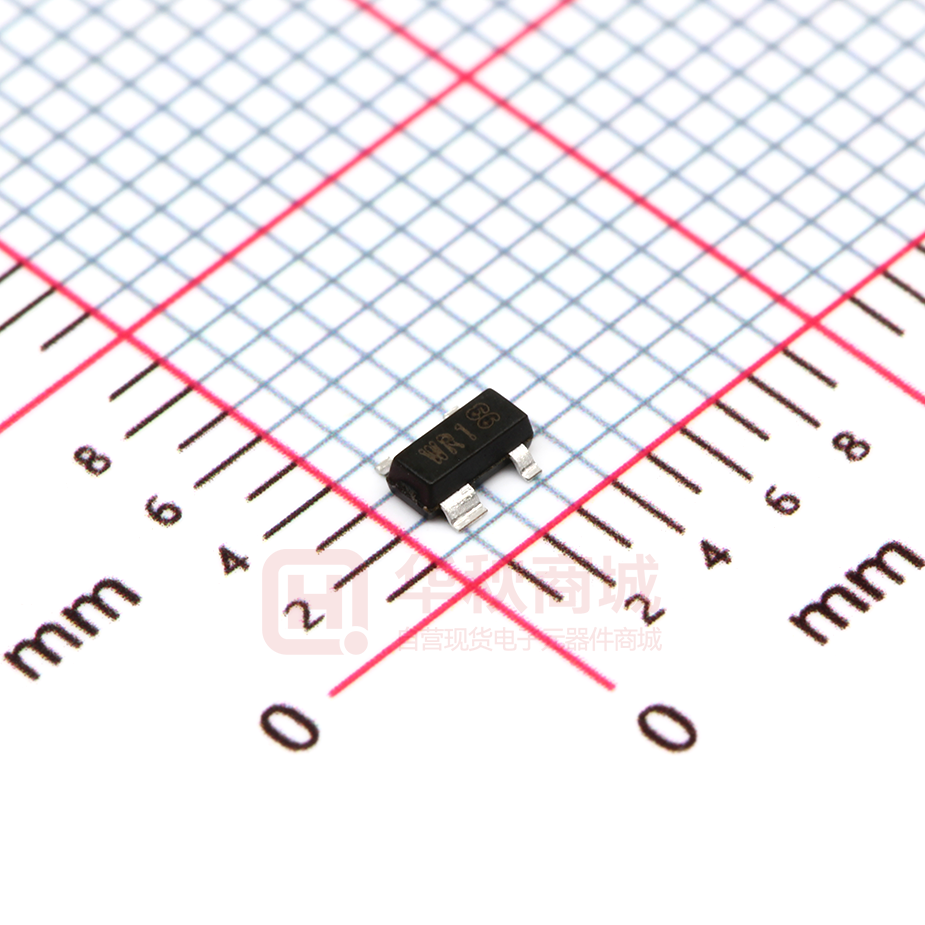

TPPRTR5V0U2X Low Capacitance TVS Diode Array www.sot23.com.tw Mechanical Characteristics Features ● ● ● ● ● Ultra low leakage: nA level Operating voltage: 5V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) –IEC61000-4-5 (Lightning) 6A (8/20μs) RoHS Compliant Package: SOT-143 ●  Lead Finish: Matte Tin ● UL Flammability Classification Rating 94V-0 Applications ● ● ● 子 ● USB 2.0 power and data line Set-top box and digital TV Digital video interface (DVI) Notebook Computers SIM Ports 10/100 Ethernet ● Ordering Information Reel Size 3000 7” 舟 TPPRTR5V0U2X Qty per Reel Dimensions and Pin Configuration 台 Part Number 电 ● Pin 4 1 Pin 2 4 Pin 3 2 Pin 1 3 TPPRTR5V0U2X Low Capacitance TVS Diode Array www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 150 W Peak Pulse Current (8/20µs) Ipp 6 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range kV TJ −55 to +125 °C Tstg −55 to +150 °C 子 Storage Temperature Range ±30 Symbol Reverse Working Voltage Breakdown Voltage VBR Typ Max Unit 5 V 6 Test Condition V IT = 1mA IR 0.1 uA VRWM =5V Clamping Voltage VC 15 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 25 V IPP = 6A (8 x 20 s pulse) Junction Capacitance CJ 0.5 pF VR = 0V, f = 1MHz, between I/O pins 台 Reverse Leakage Current VRWM Min 舟 Parameter 电 Electrical Characteristics (TA=25°C unless otherwise specified) 0.3 TPPRTR5V0U2X Low Capacitance TVS Diode Array www.sot23.com.tw PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 Percent of Peak Pulse Current % tr 60 40 td=t IPP/2 20 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve 电 Fig3. 舟 90 80 70 60 50 40 30 20 10 0 台 % of Rated Power 110 100 0 25 50 75 100 125 Ambient Temperature –TA (ºC) 10% 子 0 90% 150 tr = 0.7~1ns 30ns 60ns Time (ns) TPPRTR5V0U2X Low Capacitance TVS Diode Array www.sot23.com.tw Outline Drawing - SOT-143 D A e H e/2 DIM 4 3 GAUGE PLANE SEATING PLANE B C L L1 DETAIL A 2 子 1 0.25 E E1 c 0 bxN bbb A2 C A B A SIDE VIEW SEE DETAIL A .035 .114 .093 .051 .075 .008 .015 .020 (.021) 4 0° .006 .008 .004 .031 .000 .029 .011 .029 .003 .110 .082 .047 .048 0.80 1.22 .006 0.013 0.15 .042 0.75 0.90 1.07 0.51 .020 0.30 .037 0.76 0.94 0.20 .008 0.08 .120 2.80 2.90 3.04 .104 2.10 2.37 2.64 .055 1.20 1.30 1.40 1.92 BSC 0.20 BSC .024 0.40 0.50 0.60 (0.54) 4 8° 0° 8° 0.15 0.20 0.10 电 e1 A A1 A2 b b1 c D E E1 e e1 L L1 N 0 aaa bbb ccc DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX ccc C 4X SEATING PLANE A1 b1 C A B 台 舟 aaa C Land Pattern -SOT-143 X1 X1 SYM Y Z C E1 G E2 Y X2 X1 C E1 E2 DIMENSIONS MILLIMETERS INCHES 2.20 0.087 1.92 0.076 1.72 0.068 G 0.80 0.031 X1 X2 Y Z 1.00 1.20 1.40 3.60 0.039 0.047 0.055 0.141
