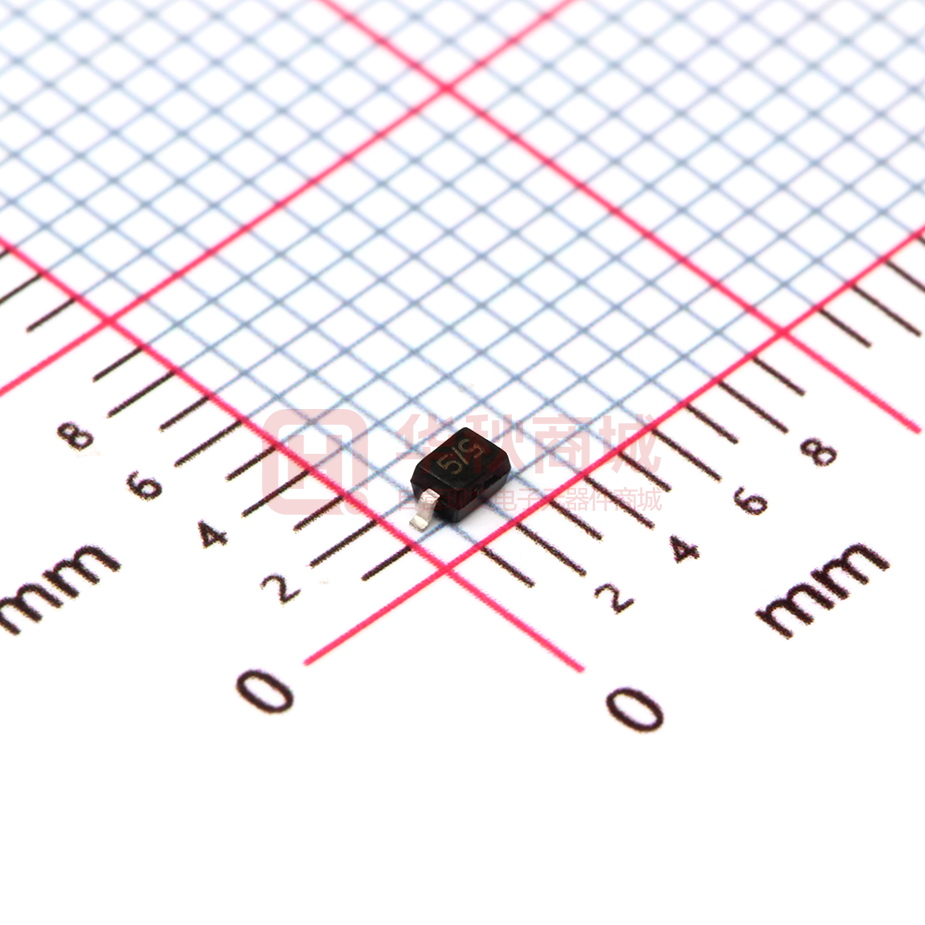

TPPESD5V0V1BA

TPPESD5V0V1BA 1-Line Bi-directional Diode www.sot23.com.tw Features ● 80W peak pulse power per line (tP = 8/20μs) ● Replacement for MLV(0402) ● Mechanical Characteristics SOD323 package Bidirectional configurations ● Lead Finish:Matte Tin ● Response time is typically < 1ns ● UL Flammability Classification Rating 94V-0 ● Low clamping voltage ● RoHS compliant ● Transient protection for data lines to IEC61000-4-2(ESD) ±25KV(air), ±25KV(contact); ● IEC61000-4-4 (EFT) 40A (5/50ns) Applications ● Cellular phones ● Portable devices ● Digital cameras ● Power supplies PU BL ● IC ● TPPESD5V0V1BA Qty per Reel 3000 Reel Size 7” TE Part Number CH Ordering Information Dimensions and Pin Configuration SOD-323 1 TPPESD5V0V1BA 1-Line Bi-directional Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) 3DUDPHWHU 6\PERO (6'SHU,(&íí$LU (6'SHU,(&íí&RQWDFW 9DOXH 8QLW 9(6' “ 25 “ 25 N9 7- íWR ƒ& 7VWJ íWR ƒ& 2SHUDWLQJ7HPSHUDWXUH5DQJH IC 6WRUDJH7HPSHUDWXUH5DQJH BL Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Conditions Peak Reverse Working Voltage VRWM Breakdown Voltage VBR It = 1mA Reverse Leakage Current IR VRWM = 5V T=25℃ CH PU Parameter Min. 5.6 Typ. 6.7 Max. Units 5 V 7.8 V 1.0 μA IPP Clamping Voltage VC IPP=1A 10 V Clamping Voltage VC IPP=3A 13 V Clamping Voltage VC IPP=5A 15 V Junction Capacitance Cj TE Maximum Reverse Peak Pulse Current 5 VR=0V 2 f = 1MHz 15 A pF TPPESD5V0V1BA 1-Line Bi-directional Diode www.sot23.com.tw Typical Performance Characteristics (TA=25°C unless otherwise Specified) Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 Ambient Temperature –TA (ºC) 10% BL 20 90% IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 tr = 0.7~1ns 30ns 60ns Time (ns) TPPESD5V0V1BA 1-Line Bi-directional Diode www.sot23.com.tw Outline Drawing - SOD323 DIMENSIONS MILLIMETERS MIN INCHES MAX MIN MAX 1.50 1.80 0.060 0.071 B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 TE CH PU A BL IC SYM Land Pattern - SOD323 SYM 4 DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031
