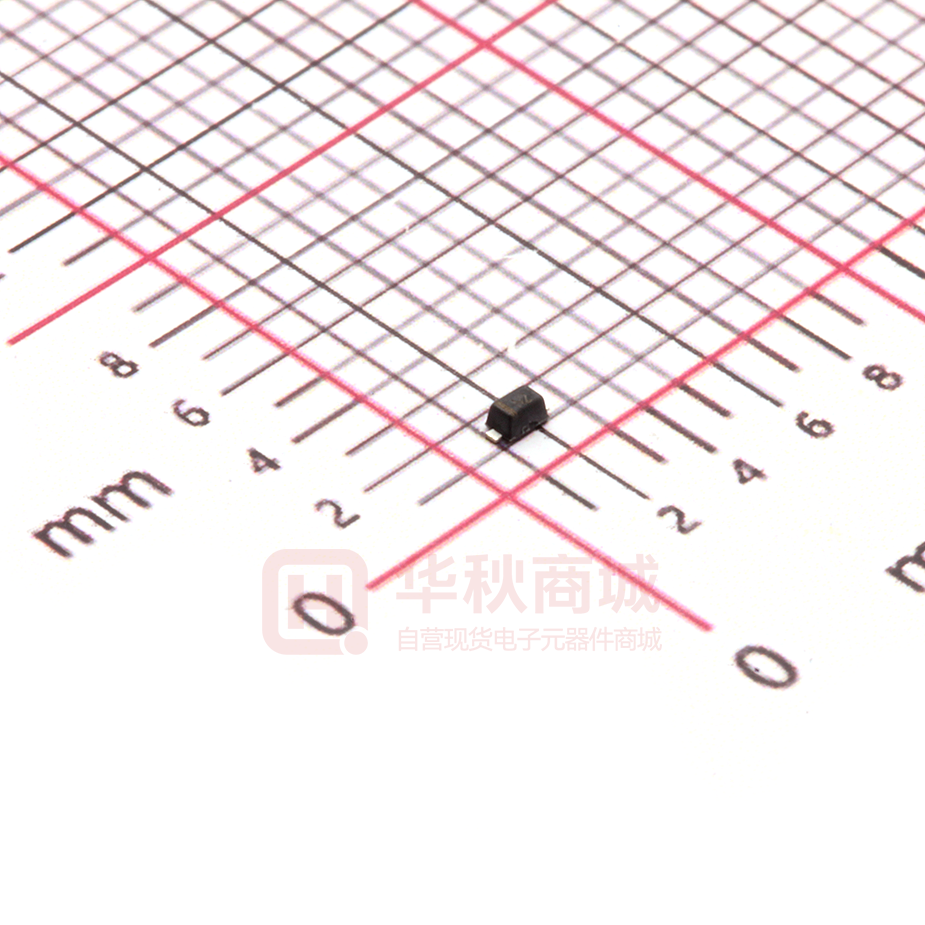

TPPESD5V0S1UB

TPPESD5V0S1UB

  • 厂商:

    TECHPUBLIC(台舟电子)

  • 封装:

    SOD-523

  • 描述:

    ESD抑制器/TVS二极管 SOD-523 15V 10A

  • 数据手册
  • 价格&库存
TPPESD5V0S1UB 数据手册
TPPESD5V0S1UB 1-Line Uni-directional TVS Diode www.sot23.com.tw Mechanical Characteristics Features       150 Watts peak pulse power (tp = 8/20μs) Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) Protects One Power or I/O Port Low leakage current Low operating and clamping voltages Solid-state silicon avalanche technology  Package: SOD-523  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below   3000 Reel Size 7”  Portable Instrumentation  Digital Cameras  Peripherals  Audio Players  Keypads, Side Keys, LCD Displays,USB2.0 PU Qty per Reel Notebooks and Handhelds CH TPPESD5V0S1UB Personal Digital Assistants TE Part Number Cellular Handsets and Accessories BL  Ordering Information IC Applications Dimensions and Pin Configuration 1 TPPESD5V0S1UB 1-Line Uni-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol ESD per IEC 61000−4−2 (Air) Value ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range Unit kV ±30 TJ −55 to +125 °C Tstg −55 to +150 °C Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VBR Maximum Reverse Leakage Current @ VRWM Breakdown Voltage @ IT IT Test Current IF Forward Current VF Forward Voltage @ IF Ppk Peak Power Dissipation Parameter Reverse Working Voltage Breakdown Voltage Symbol Min IF IR VF IT Uni−Directional TVS Typ VRWM VBR I IPP Capacitance @ VR = 0 and f = 1.0 MHz TE C VC VBR VRWM PU IR Working Peak Reverse Voltage CH VRWM BL Symbol IC Electrical Characteristics (TA=25°C unless otherwise specified) Max Unit 5 V 6 Test Condition V IT = 1mA Reverse Leakage Current IR 0.2 uA VRWM =5V Clamping Voltage VC 12 V IPP = 5A (8 x 20 s pulse) Clamping Voltage VC 15 V IPP = 10A (8 x 20 s pulse) Junction Capacitance CJ pF VR = 0V, f = 1MHz 30 2 V TPPESD5V0S1UB 1-Line Uni-directional TVS Diode www.sot23.com.tw Characteristic Curves Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 80 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 t - Time ( s) Power Derating Curve PU Fig3. CH TE % of Rated Power 110 100 90 80 70 60 50 40 30 20 10 0 30 90% 10% IC 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr BL IPP - Peak Pulse Current - % of IPP 120 3 tr = 0.7~1ns 30ns 60ns Time (ns) TPPESD5V0S1UB 1-Line Uni-directional TVS Diode www.sot23.com.tw PU BL IC SOD-523 Package Outline Drawing TE CH Suggested Land Pattern 4
TPPESD5V0S1UB 价格&库存

很抱歉,暂时无法提供与“TPPESD5V0S1UB”相匹配的价格&库存,您可以联系我们找货

免费人工找货
TPPESD5V0S1UB
  •  国内价格
  • 1+0.06994

库存:70
