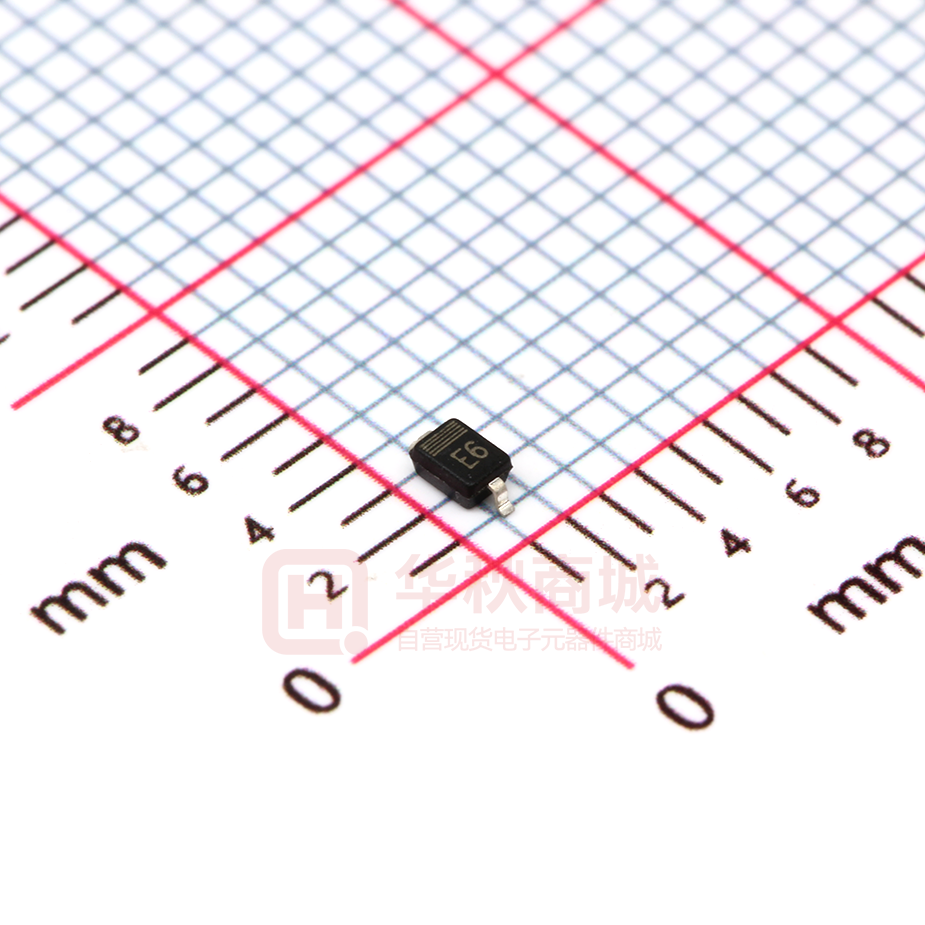

TPPESD5V0L1BA BI-directional TVS Diode www.sot23.com.tw Mechanical Characteristics Features   300W peak pulse power (8/20μs) Ultra low leakage: nA level  Package: SOD-323  Operating voltage: 5V  Lead Finish: Matte Tin  Ultra low clamping voltage  Case Material: “Green” Molding Compound.  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV  Moisture Sensitivity: Level 3 per J-STD-020  Terminal Connections: See Diagram Below  RoHS Compliant 3000 7” Personal Digital Assistants  Notebooks and Handhelds  Portable Instrumentation  Peripherals PU Reel Size  CH TPPESD5V0L1BA Qty per Reel Cellular Handsets and Accessories TE Part Number  BL Ordering Information IC Applications 1 2 TPPESD5V0L1BA BI-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol ESD per IEC 61000−4−2 (Air) Value ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range kV ±30 TJ −55 to +125 °C Tstg −55 to +150 °C IC Storage Temperature Range Unit Symbol Parameter Nominal Reverse Working Voltage IR Reverse Leakage Current @ VRWM VBR Reverse Breakdown Voltage @ IT PU VRWM Test Current for Reverse Breakdown VC Clamping Voltage @ IPP IPP Maximum Peak Pulse Current f VC VBR VRWM IT IR IR IT VRWM VBR VC V Parasitic Capacitance Reverse Voltage IPP TE VR I IPP CH IT CESD BL Electrical Characteristics (TA=25°C unless otherwise specified) Small Signal Frequency Parameter Reverse Working Voltage Breakdown Voltage Symbol Bi-Directional TVS Min VRWM VBR Typ Max Unit 5 V 6 Test Condition V IT = 1mA Reverse Leakage Current IR 1.0 μA VRWM = 5V Clamping Voltage VC 8 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 15 V IPP = 18A (8 x 20 s pulse) Peak Pulse Current IPP 18 A tp = 8/20μs Junction Capacitance CJ 100 pF VR = 0V, f = 1MHz, Pin 1 to Pin 3 or Pin 2 to Pin 3 TPPESD5V0L1BA BI-directional TVS Diode www.sot23.com.tw PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve 110 100 CH 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power 10% PU Fig3. 0 25 50 75 100 125 Ambient Temperature –TA (ºC) 150 IC 80 90% tr = 0.7~1ns BL IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 30ns 60ns Time (ns) TPPESD5V0L1BA BI-directional TVS Diode www.sot23.com.tw Outline Drawing - SOD-323 A DIMENSIONS MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 TE CH PU BL IC SYM Land Pattern - SOD-323 SYM DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031
