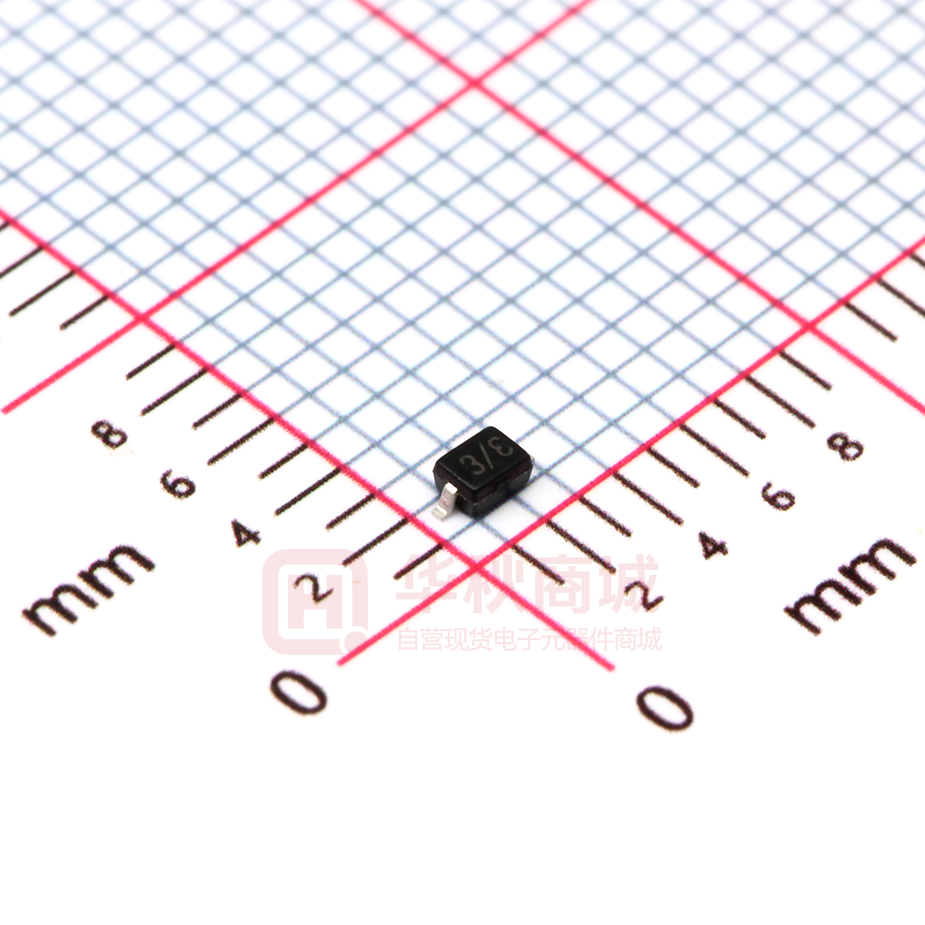

TPPESD3V3L1BA
1-Line Bi-directional Diode
www.sot23.com.tw
Features
Mechanical Characteristics
450W peak pulse power (8/20μs)
Package:SOD-323
Protects one data or power line
Operating voltage: 3.3V
Ultra low leakage: nA level
Ultra low clamping voltage
UL Flammability Classification Rating 94V-0
Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
– IEC61000-4-4 (EFT) 80A (5/50ns)
– IEC61000-4-5 (SURGE) 38A (8/20us)
TPPESD3V3L1BA
IC
Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Peripherals
BL
PU
Qty per Reel
3000
Applications
Reel Size
7”
TE
Part Number
Moisture Sensitivity: Level 3 per J-STD-020
CH
Ordering Information
Case Material: “Green” Molding Compound.
Dimensions and Pin Configuration
SOD-323
1
TPPESD3V3L1BA
1-Line Bi-directional Diode
www.sot23.com.tw
Absolute Maximum Ratings (Tamb=25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
Peak Pulse Power (8/20µs)
Ppk
450
W
Peak Pulse Current (8/20µs)
IPP
38
A
ESD per IEC 61000−4−2 (Air)
±30
VESD
ESD per IEC 61000−4−2 (Contact)
TJ
−55 to +125
°C
IC
Operating Temperature Range
kV
±30
Storage Temperature Range
Tstg
−55 to +150
°C
Symbol
Reverse Working Voltage
Min
VRWM
Typ
PU
Parameter
BL
Electrical Characteristics (TA=25°C unless otherwise specified)
4.7
Max
Unit
Test Condition
3.3
V
6.0
V
IT=1mA
Breakdown Voltage
VBR
Leakage Current
ILeak
200
nA
VRWM=3.3V
VC
8.5
V
IPP=20A,Tp=8/20μs
VC
12.0
V
IPP=38A,Tp=8/20μs
Ω
TLP=0.2/100ns
pF
VR=0V, f=1MHz
Dynamic Resistance
CH
4.0
RDYN
0.1
Junction Capacitance
CJ
50
Clamping Voltage
TE
Clamping Voltage
2
70
TPPESD3V3L1BA
1-Line Bi-directional Diode
www.sot23.com.tw
Clamping Voltage vs. Peak Pulse Current
TE
Voltage (V)
CH
PU
Junction Capacitance vs. Reverse Voltage
BL
IC
Typical Performance Characteristics (TA=25°C unless otherwise Specified)
-20
0
20
40
60
80
100
Time (nS)
Peak Pulse Power vs. Pulse Time
IEC61000−4−2 Pulse Waveform
120
100
80
60
40
20
0
0
25
50
75
100
125
Ambient Temperature_Ta(℃)
Power Derating Curve
150
Ipp-Peak Pulse Current-%of Ipp
% of Rated Power
120
100
80
60
40
20
0
-20
-20
0
20
40
T-Time(us)
8 X 20us Pulse Waveform
60
TPPESD3V3L1BA
1-Line Bi-directional Diode
www.sot23.com.tw
Outline Drawing - SOD323
DIMENSIONS
MILLIMETERS
MIN
INCHES
MAX
MIN
MAX
1.50
1.80
0.060
0.071
B
1.20
1.40
0.045
0.054
C
2.30
2.70
0.090
0.107
D
-
1.10
-
0.043
E
0.30
0.40
0.012
0.016
F
0.10
0.25
0.004
0.010
H
-
0.10
-
0.004
TE
CH
PU
A
BL
IC
SYM
Land Pattern - SOD323
SYM
4
DIMENSIONS
MILLIMETERS
INCHES
A
3.15
0.120
B
0.80
0.031
C
0.80
0.031
