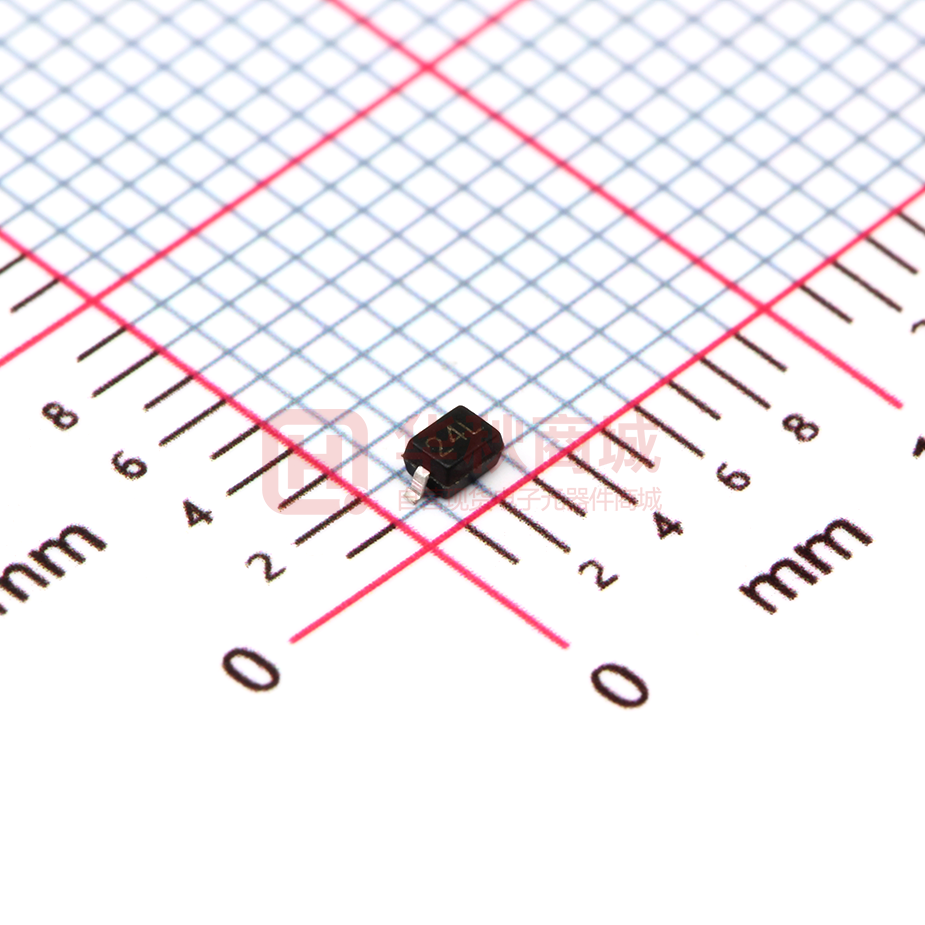

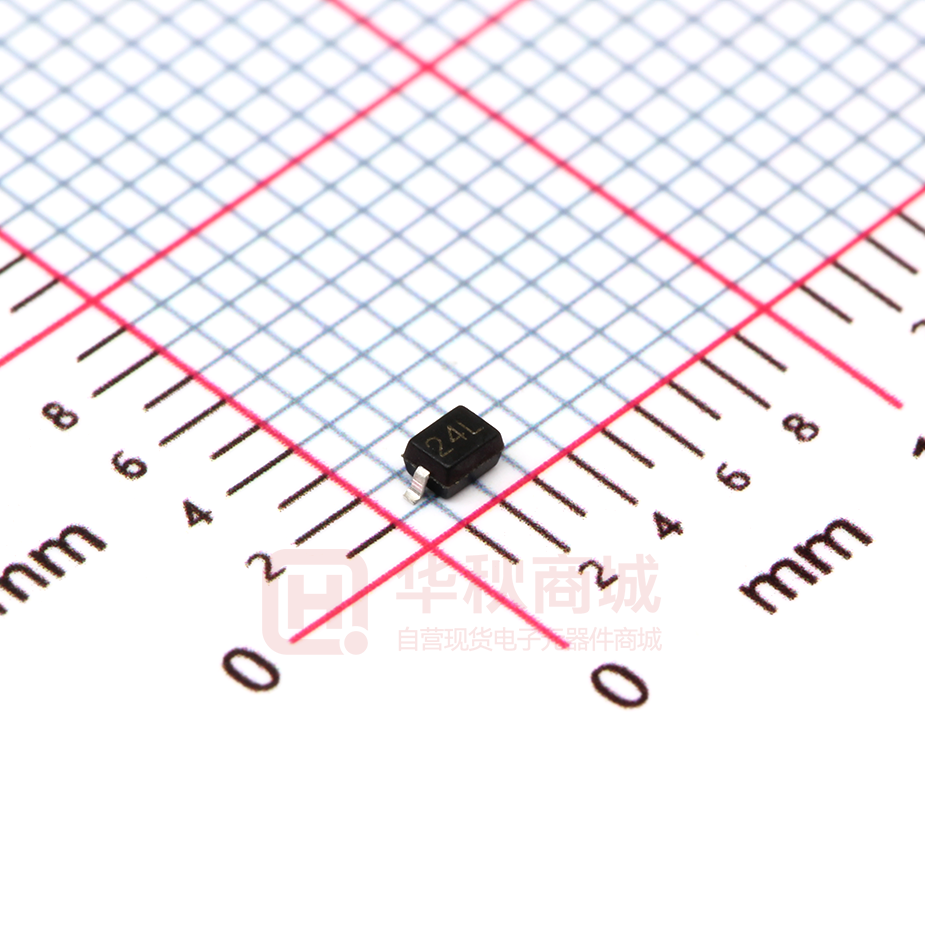

TPPESD24VL1BA

TPPESD24VL1BA 1-Line BI-directional TVS Diode www.sot23.com.tw Mechanical Characteristics Features  180W peak pulse power (8/20μs)  Protects one data or power line  Ultra low leakage：nA level        Operating voltage：24V  Ultra low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV – IEC61000-4-4 (EFT) 40A (5/50ns)  RoHS Compliant 7” BL 3000 CH PU Reel Size Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation Peripherals Pagers Peripherals TE TPPESD24VL1BA Qty per Reel       IC Applications Ordering Information Part Number Package: SOD-323 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Terminal Connections: See Diagram Below Dimensions and Pin Configuration 1 2 TPPESD24VL1BA 1-Line BI-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol ESD per IEC 61000−4−2 (Air) Value ±20 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range kV ±15 TJ −55 to +125 °C Tstg −55 to +150 °C IC Storage Temperature Range Unit Symbol Reverse Working Voltage Breakdown Voltage Typ VRWM VBR IR Clamping Voltage VC Peak Pulse Current IPP Junction Capacitance CJ Unit 24 V IT = 1mA µA VRWM = 24V V IPP = 1A (8 x 20µs pulse) 60 V IPP = 3.5A (8 x 20µs pulse) 3.5 A tp=8/20µs pF VR = 0V, f = 1MHz 33 10 Test Condition V 0.1 VC TE Clamping Voltage Max 26 CH Reverse Leakage Current Min PU Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) WWW.TECHPUBLIC.COM.TW TPPESD24VL1BA 1-Line BI-directional TVS Diode www.sot23.com.tw 7\SLFDO3HUIRUPDQFH&KDUDFWHULVWLFV7$ ƒ&XQOHVVRWKHUZLVH6SHFLILHG  Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 60 40 td=t IPP/2 20 0 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve 110 100 tr = 0.7~1ns Time (ns) 30ns 60ns CH 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power 10% PU Fig3. IC 80 90% BL IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) WWW.TECHPUBLIC.COM.TW TPPESD24VL1BA 1-Line BI-directional TVS Diode www.sot23.com.tw Outline Drawing - SOD-323 A DIMENSIONS MILLIMETERS INCHES MIN MAX MIN MAX 1.50 1.80 0.060 0.071 B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 TE CH PU BL IC SYM Land Pattern - SOD-323 SYM DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031 WWW.TECHPUBLIC.COM.TW
