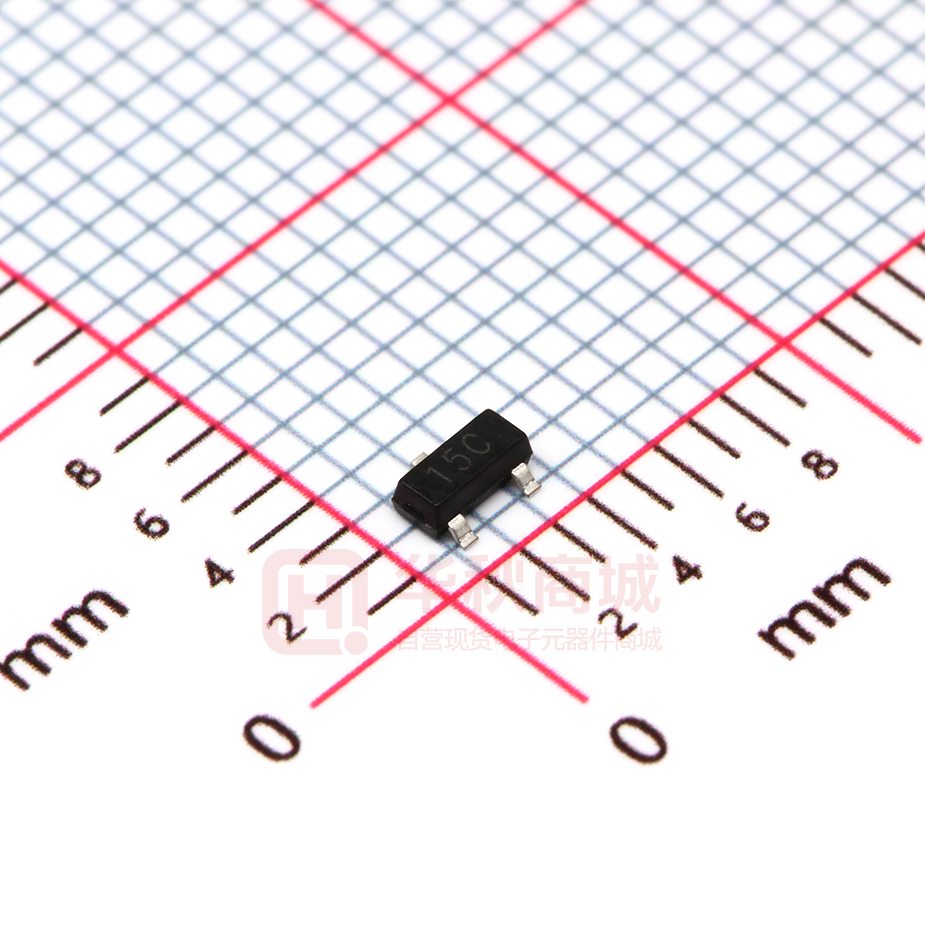

TPPESD15VL2BT

TPPESD15VL2BT 2 -L ine Bi -directional TVS Diode www.sot23.com.tw Mechanical Characteristics Features  250W peak pulse power(8/20 µs)  Protects two bi-directional lines  Ultra low leakage：nA level       Operating voltage：15V  Low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns)  RoHS Compliant - Applications      Ordering Information Part Number TPESD15VL2BT Qty per Reel 3000 Package: SOT-23 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J STD 020 Reel Size 7” Cellular Handsets and Accessories Notebooks and Handhelds Portable Instrumentation Set Top Box Industrial Controls Dimensions and Pin Configuration Circuit and Pin Schematic 1 1 TPPESD15VL2BT 2 -L ine Bi -directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 250 W Peak Pulse Power(8/20µs) ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) TJ 子 Operating Temperature Range Storage Temperature Range kV ±30 Tstg −55 to +125 °C −55 to +150 °C Parameter Symbol Nominal Reverse Working Voltage IR Reverse Leakage Current @ VRWM VBR Reverse Breakdown Voltage @ IT 舟 VRWM Test Current for Reverse Breakdown VC Clamping Voltage @ IPP IPP Maximum Peak Pulse Current VR f I IPP VC VBR VRWM 台 IT CESD 电 Electrical Characteristics (TA=25°C unless otherwise specified) IT IR IR IT VRWM VBR VC V Parasitic Capacitance IPP Reverse Voltage Small Signal Frequency Bi-Directional TVS TPESD15BS3 Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR Max Unit 15 V V 16.7 0.5 µA Test Condition IT = 1mA VRWM = 15V Reverse Leakage Current IR 0.01 Clamping Voltage VC 20 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 30 V IPP = 8A (8 x 20µs pulse) Peak Pulse Current IPP 8 A tP=8/20µs Junction Capacitance CJ 18 pF VR=0, f=1MHz, Pin 1 to Pin 3 or Pin 2 to Pin 3 2 TPPESD15VL2BT 2 -L ine Bi -directional TVS Diode www.sot23.com.tw Characteristic Curves Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 电 40 td=t IPP/2 0 0 5 10 15 Fig3. 25 30 90 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 10% tr = 0.7~1ns 30ns 60ns Power Derating Curve 110 100 % of Rated Power 20 台 t - Time ( s) 舟 20 90% 子 IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 Ambient Temperature –TA (ºC) 3 Time (ns) TPPESD15VL2BT 2 -L ine Bi -directional TVS Diode www.sot23.com.tw Outline Drawing - SOT23 D A DIM e1 H 3 B E C 0 c 0.25 子 E1 GAUGE PLANE SEATING PLANE L L1 DETAIL A 2 bxN A2 A C A B 3X aaa C SEATING PLANE C 台 A1 SEE DETAIL A SIDE VIEW 舟 bbb e 电 1 Land Pattern - SOT23 X Y DIM Z G Y C DIMENSIONS INCHES MILLIMETERS (.087) .037 .075 .031 .039 .055 .141 C E E1 G X Y Z E E1 4 (2.20) 0.95 1.90 0.80 1.00 1.40 3.60 A A1 A2 b c D E E1 e e1 L L1 N 0 aaa bbb DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .035 .000 .035 .012 .003 .110 .082 .047 .015 0° .037 .114 .093 .051 .075 .037 .020 .022 3 .004 .008 .044 .004 .040 .020 .007 .120 .104 .055 .024 8° 0.89 1.12 0.01 0.10 0.88 0.95 1.02 0.51 0.30 0.18 0.08 2.80 2.90 3.04 2.10 2.37 2.64 1.20 1.30 1.40 1.90 BSC 0.95 BSC 0.40 0.50 0.60 (0.55) 3 0° 8° 0.10 0.20
