TPPESD15VL1BA
BI-directional TVS Diode
www.sot23.com.tw
Mechanical Characteristics
Features
150W peak pulse power (8/20μs)
Protects one data or power line
Ultra low leakage:nA level
Operating voltage:15V
Ultra low clamping voltage
Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
– IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS Compliant
Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Peripherals
Pagers Peripherals
Desktop and Servers
3000
7”
IC
BL
Reel Size
CH
PU
Qty per Reel
TE
TPPESD15VL1BA

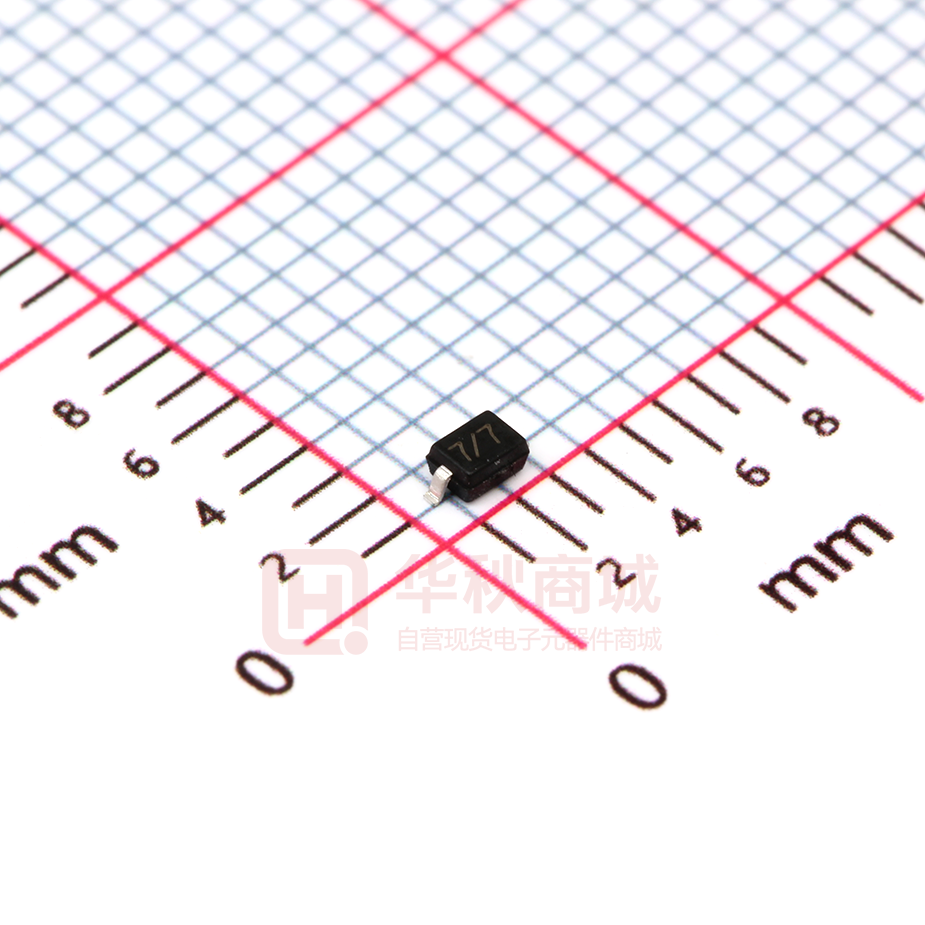

Package: SOD-323
Lead Finish: Matte Tin
Case Material: “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 3 per J-STD-020
Terminal Connections: See Diagram Below
Applications
Ordering Information
Part Number
1
2
TPPESD15VL1BA
BI-directional TVS Diode
www.sot23.com.tw
Absolute Maximum Ratings (Tamb=25°C unless otherwise specified)
Parameter
Symbol
ESD per IEC 61000−4−2 (Air)
Value
±30
VESD
ESD per IEC 61000−4−2 (Contact)
Operating Temperature Range
kV
±30
TJ
−55 to +125
°C
Tstg
−55 to +150
°C
IC
Storage Temperature Range
Unit
Symbol
Parameter
Nominal Reverse Working Voltage
IR
Reverse Leakage Current @ VRWM
VBR
Reverse Breakdown Voltage @ IT
PU
VRWM
Test Current for Reverse Breakdown
VC
Clamping Voltage @ IPP
IPP
Maximum Peak Pulse Current
f
VC VBR VRWM
IT
IR
IR
IT
VRWM VBR VC V
Parasitic Capacitance
Reverse Voltage
IPP
TE
VR
I
IPP
CH
IT
CESD
BL
Electrical Characteristics (TA=25°C unless otherwise specified)
Small Signal Frequency
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Bi-Directional TVS
Min
Typ
VRWM
VBR
Max
Unit
15
V
16.7
0.5
Test Condition
V
IT = 1mA
µA
VRWM = 15V
Reverse Leakage Current
IR
Clamping Voltage
VC
20
V
IPP = 1A (8 x 20µs pulse)
Clamping Voltage
VC
30
V
IPP = 3A (8 x 20µs pulse)
Peak Pulse Current
IPP
3
A
tp=8/20µs
Junction Capacitance
CJ
12
pF
VR = 0V, f = 1MHz
TPPESD15VL1BA
BI-directional TVS Diode
www.sot23.com.tw
PROTECTION PRODUCTS
Typical charateristics
Fig2. ESD Pulse Waveform (according to IEC 61000-4-2)
Fig1. 8/20µ s Pulse Waveform
120
60
40
td=t IPP/2
20
0
0
5
10
15
20
25
30
t - Time ( s)
Power Derating Curve
110
100
CH
90
80
70
60
50
40
30
20
10
0
TE
% of Rated Power
10%
PU
Fig3.
0
25
50
75
100
125
Ambient Temperature –TA (ºC)
150
IC
80
90%
tr = 0.7~1ns
BL
IPP - Peak Pulse Current - % of IPP
100
100%
TEST
WAVEFORM
PARAMETERS
tr=8 s
td=20 s
Peak Value IPP
Percent of Peak Pulse Current %
tr
30ns
60ns
Time (ns)
TPPESD15VL1BA
BI-directional TVS Diode
www.sot23.com.tw
Outline Drawing - SOD-323
A
DIMENSIONS
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
1.50
1.80
0.060
0.071
B
1.20
1.40
0.045
0.054
C
2.30
2.70
0.090
0.107
D
-
1.10
-
0.043
E
0.30
0.40
0.012
0.016
F
0.10
0.25
0.004
0.010
H
-
0.10
-
0.004
TE
CH
PU
BL
IC
SYM
Land Pattern - SOD-323
SYM
DIMENSIONS
MILLIMETERS
INCHES
A
3.15
0.120
B
0.80
0.031
C
0.80
0.031
