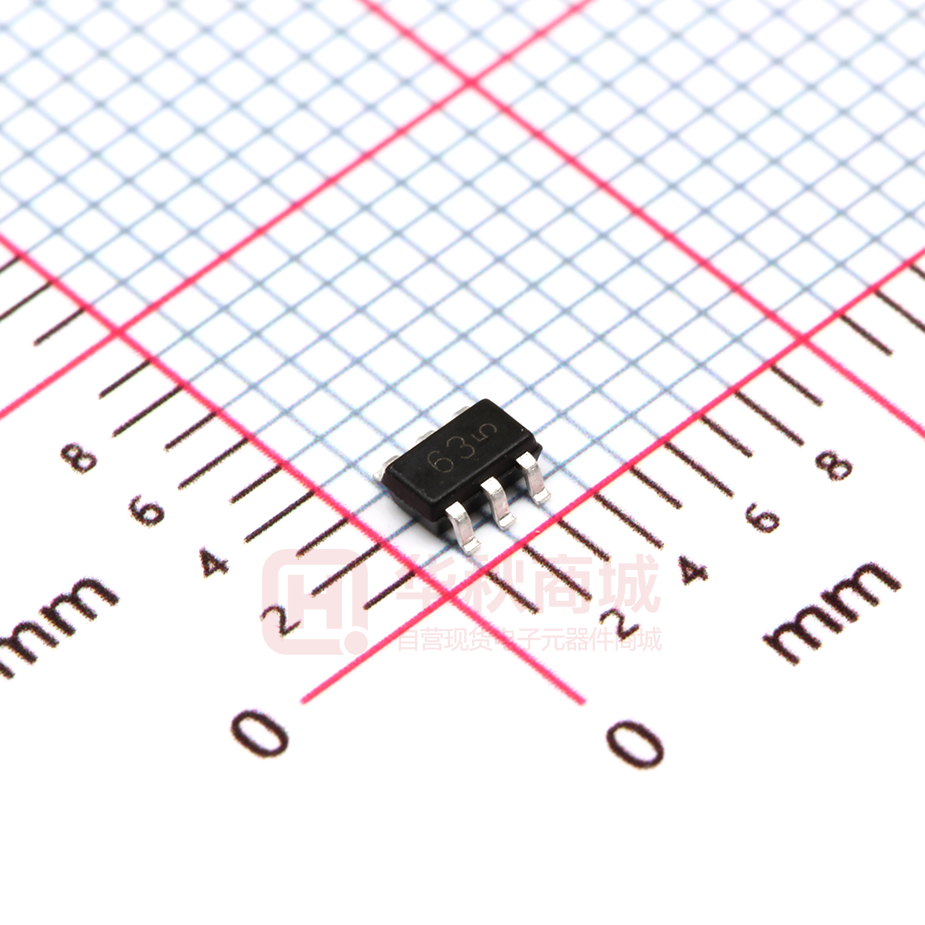

TPNUP4201MR6T1G

TPNUP4201MR6T1G Low Capactiance 4-Line TVS Array WWW.SOT23.COM.TW Features Mechanical Characteristics       Ultra low capacitance: 0.3pF typical (I/O to I/O) Ultra low leakage: nA level Low operating voltage: 5V Low clamping voltage Up to 4 data lines and one power line protects Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV – IEC61000-4-4 (EFT) 40A (5/50ns)  ROHS Compliant              USB 2.0 and USB 3.0 Ports USB OTG Digital video interface(DVI) Monitor and Flat Panel Displays PCI Express and Serial SATA Ports Gigabit Ethernet IEEE 1394 firewire ports Consumer products (STB, DVD, DSC, DVC…) BL 3000 Reel Size 7” CH PU TPNUP4201MR6T1G Qty per Reel IC Applications Ordering Information Part Number Package: SOT23-6 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 TE Dimensions and Pin Configuration Circuit and Pin Schematic 1 1 TPNUP4201MR6T1G Low Capactiance 4-Line TVS Array WWW.SOT23.COM.TW Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 250 W Peak Pulse Power (8/20μs) (Vcc-GND) ESD per IEC61000-4-2 (Air) ±20 VESD ESD per IEC61000-4-2 (Contact) kV ±15 TJ -55 to +125 ℃ Storage Temperature Range Tstg -55 to +150 ℃ IC Operating Temperature Range Electrical Characteristics (TA=25°C unless otherwise specified) Typ Max VRWM Unit Test Condition 5 V 6 9.5 V IT=1mA Breakdown Voltage VBR Leakage Current ILeak 100 nA VRWM=5V Clamping Voltage（I/O-GND） VC 16 V IPP=4.5A,Tp=8/20μs CH Reverse Working Voltage Min BL Symbol PU Parameter 17 V IPP=15A,Tp=8/20μs 0.6 0.7 pF VR=0V, f=1MHz, 0.3 0.5 pF VR=0V, f=1MHz, Clamping Voltage(Vcc-GND) Junction Capacitance (I/O to I/O ) CJ TE (I/O to GND) Junction Capacitance VC CJ 2 TPNUP4201MR6T1G Low Capactiance 4-Line TVS Array WWW.SOT23.COM.TW PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 10% BL 20 90% IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 Ambient Temperature –TA (ºC) 3 tr = 0.7~1ns 30ns 60ns Time (ns) TPNUP4201MR6T1G Low Capactiance 4-Line TVS Array TE CH PU BL IC WWW.SOT23.COM.TW 4
