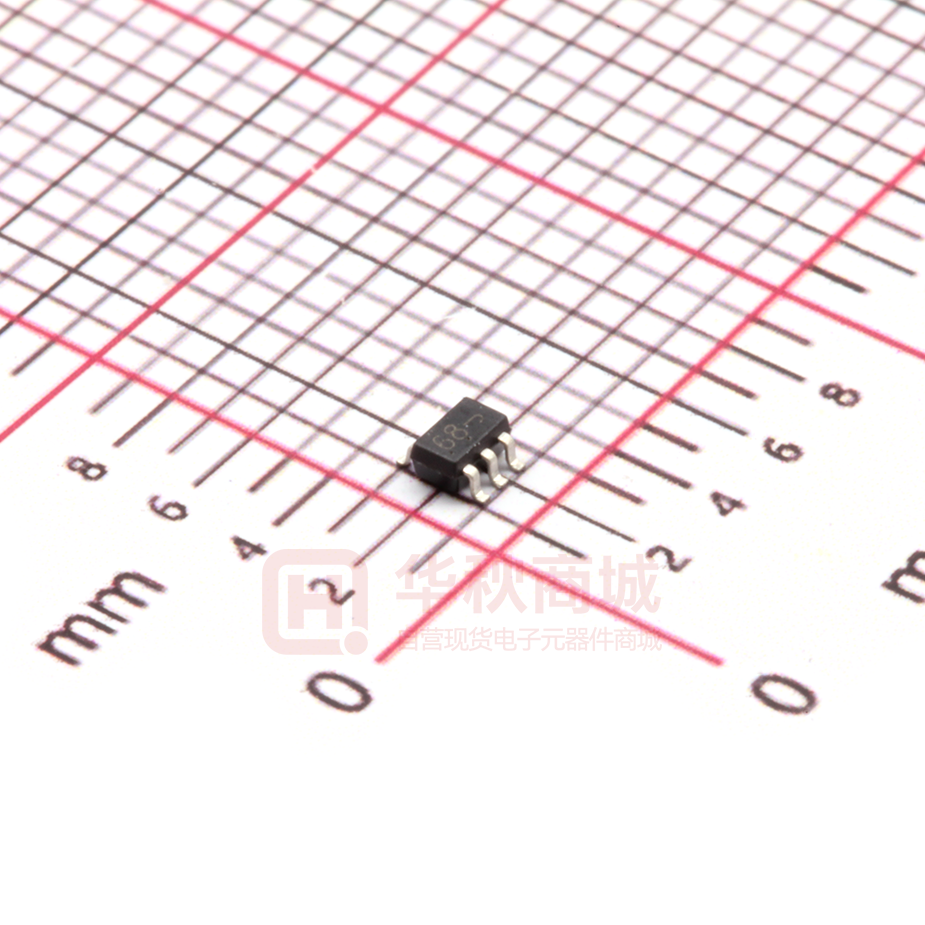

TPNUP2301MW6T1G

TPNUP2301MW 6T1G Low Capacitance 2-Line ESD Protection www.sot23.com.tw Features Mechanical Characteristics • Working voltage: 70V • Low capacitance:0.5pf • Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV – IEC61000-4-4 (EFT) 40A (5/50ns) Package: SOT-363 (2.0X2.1X0.35mm) • Lead Finish: Matte Tin • Case Material: “Green” Molding Compound. • UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 3 per J-STD-020 RoHS Compliant • • • Ordering Information Qty per Reel Reel Size TPNUP2301MW6T1G 3000 7” Microprocessor Based Equipmenmt Cell Phone Handsets and Accessories Personal Digital Assistants (PDAs) and Pagers CH PU Part Number Portable Instrumentation BL • IC Applications Dimensions and Pin Configuration TE • • VN 1 6 N/C I/O 2 5 I/O VP 3 4 N/C WWW.TECHPUBLIC.COM.TW TPNUP2301MW 6T1G Low Capacitance 2-Line ESD Protection www.sot23.com.tw Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Ppk 250 W Peak Pulse Power (8/20µs) ESD per IEC 61000−4−2 (Air) ±25 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range TJ −55 to +125 °C Tstg −55 to +150 °C IC Storage Temperature Range kV ±20 Symbol VRWM Reverse Leakage Current IR Forward Voltage VF Clamping Voltage VC 0.4 TE Junction Capacitance Typ CH Reverse Working Voltage Min CJ Max PU Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) 0.7 0.5 Unit Test Condition 70 V 0.5 uA VRWM = 70V 1.2 V IF = 1mA 10 V IPP =20A(8x20us pulse) 1 pF VR = 0V, f = 1MHz WWW.TECHPUBLIC.COM.TW TPNUP2301MW 6T1G Low Capacitance 2-Line ESD Protection www.sot23.com.tw PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 Time (ns) 30ns 60ns CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power tr = 0.7~1ns PU t - Time ( s) Fig3. 10% BL 20 90% IC tr Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 0 25 50 75 100 125 150 Ambient Temperature –TA (ºC) WWW.TECHPUBLIC.COM.TW TPNUP2301MW 6T1G Low Capacitance 2-Line ESD Protection www.sot23.com.tw Outline Drawing - SOT-363(2.0X2.1) DIM D e1 A A1 A2 b c D E1 E e e1 L L1 N 01 aaa bbb ccc N E/2 E1 1 ccc C 2X N/2 TIPS E 2 e B D A2 A SEATING PLANE bxN bbb 1.10 0.00 0.10 0.70 0.90 1.00 0.15 0.30 0.08 0.22 1.80 2.00 2.20 1.15 1.25 1.35 2.10 BSC 0.65 BSC 1.30 BSC 0.26 0.36 0.46 (0.42) 6 0° 8° 0.10 0.10 0.30 H A1 C .043 .000 .004 .028 .035 .039 .012 .006 .003 .009 .071 .079 .087 .045 .049 .053 .083 BSC .026 BSC .051 .010 .014 .018 (.017) 6 8° 0° .004 .004 .012 BL aaa C DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX IC A C A-B D GAGE PLANE PU 0.15 SEE DETAIL 01 (L1) DETAIL A A CH SIDE VIEW L c TE Land Pattern - SOT-363 X DIM C G Y Z C G P X Y Z DIMENSIONS INCHES MILLIMETERS (.073) .039 .026 .016 .033 .106 (1.85) 1.00 0.65 0.40 0.85 2.70 P WWW.TECHPUBLIC.COM.TW
