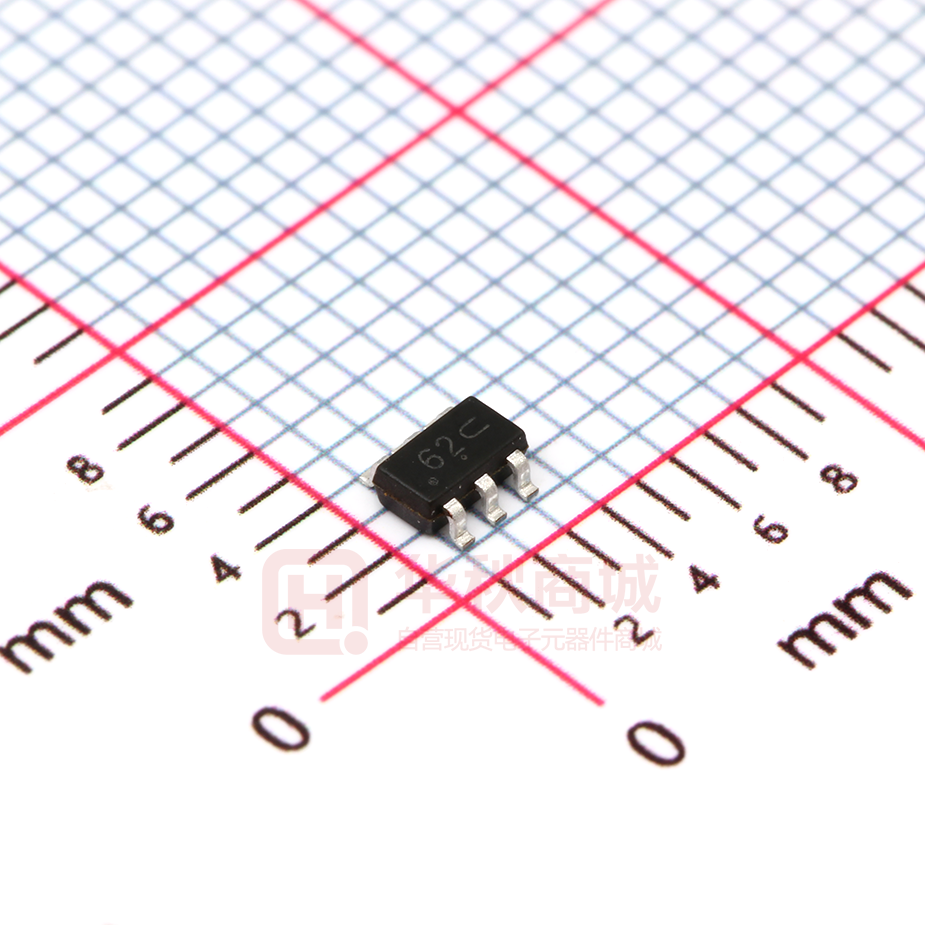

TPNUP2201MR6T1G

TPNUP2201MR6T1G Low Capactiance 2-Line TVS Array www.sot23.com.tw Features Mechanical Characteristics       Ultra low capacitance: 0.35 pF typical (I/O to I/O) Ultra low leakage: nA level Low operating voltage: 5V Low clamping voltage Up to 2 data lines and one power line protects Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV – IEC61000-4-4 (EFT) 40A (5/50ns) – IEC61000-4-5 (Lightning) : 4 A(8/20μs)  ROHS Compliant      Applications BL 3000 Reel Size 7” CH PU TPNUP2201MR6T1G Qty per Reel USB 2.0 and USB 3.0 Ports USB OTG Digital video interface(DVI) Monitor and Flat Panel Displays PCI Express and Serial SATA Ports Gigabit Ethernet IEEE 1394 firewire ports Consumer products (STB, DVD, DSC, DVC…) IC         Ordering Information Part Number Package: SOT23-6 Lead Finish: Matte Tin Case Material: “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 TE Dimensions and Pin Configuration I/O I/O 1 VP VN 1 NC NC TPNUP2201MR6T1G Low Capactiance 2-Line TVS Array www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value IPP Peak Pulse Current（tp=8/20μs） ESD per IEC 61000−4−2 (Air) 4 ±20 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range Unit ±20 A kV TJ −55 to +125 °C Tstg −55 to +150 °C Symbol Breakdown Voltage VRWM VBR IR Clamping Voltage VC Clamping Voltage VC CJ CJ TE Junction Capacitance 6 CH Reverse Leakage Current Junction Capacitance Typ 2 Max Unit 5 V Any I/O pin to ground V IT = 1mA, any I/O pin to ground 0.08 µA VRWM = 5V, any I/O pin to ground 11 V IPP = 1A (8 x 20µs pulse) any I/O pin to ground 15 V IPP = 4.5 A (8 x 20µs pulse) any I/O pin 0.4 pF VR = 0V, f = 1MHz, between I/O pins 0.8 pF VR = 0V, f = 1MHz, any I/O pin to ground BL Reverse Working Voltage Min PU Parameter IC Electrical Characteristics (TA=25°C unless otherwise specified) 0.3 Test Condition TPNUP2201MR6T1G Low Capactiance 2-Line TVS Array www.sot23.com.tw Typical Performance Characteristics (TA=25°C unless otherwise Specified) Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 10% BL 20 90% IC IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP Percent of Peak Pulse Current % tr 150 Ambient Temperature –TA (ºC) 3 tr = 0.7~1ns 30ns 60ns Time (ns) TPNUP2201MR6T1G Low Capactiance 2-Line TVS Array TE CH PU BL IC www.sot23.com.tw 4
