TPMMBZ27VCLT1G

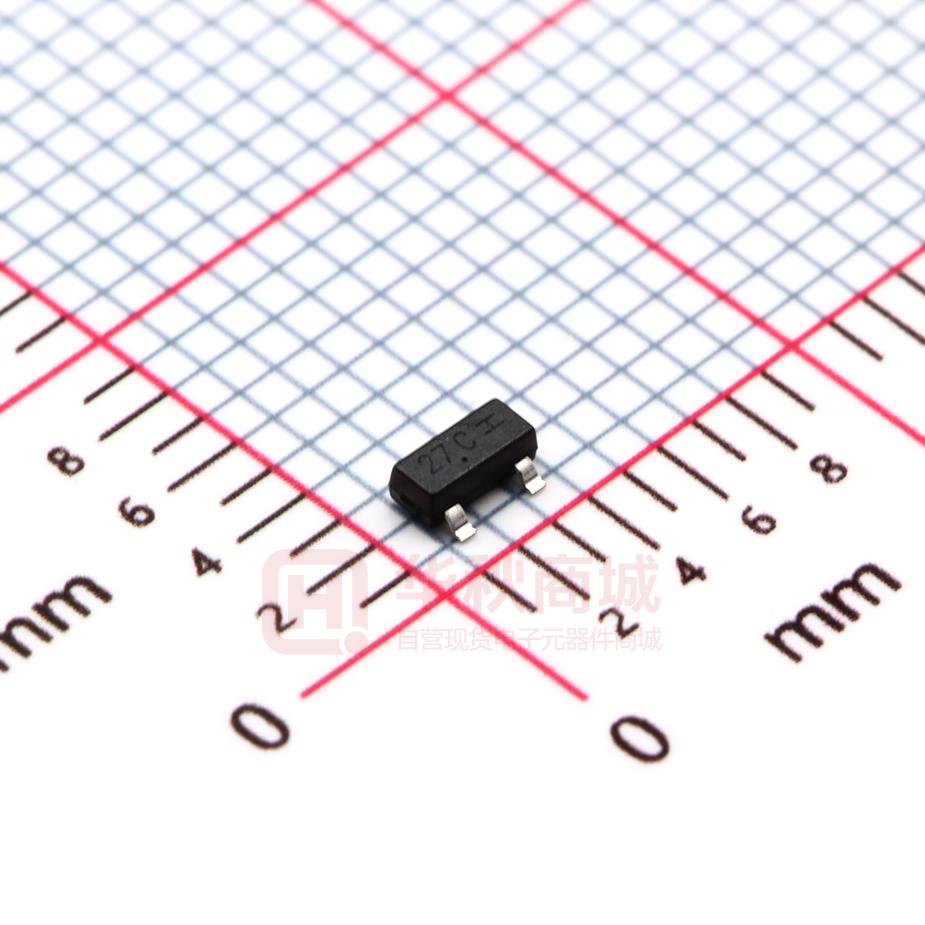

TPMMBZ 27VCLT1G 2-Line Uni-directional TVS Diode WWW.SOT23.COM.TW Features Mechanical Characteristics  150W peak pulse power(8/20µs)  Package: SOT23  Ultra low leakage：nA level  Lead Finish: Matte Tin  UL Flammability Classification Rating 94V-0  Pb-Free, Halogen Free, RoHS/WEEE Compliant  Operating voltage: 24V  Low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV Applications - - (Lightning) 5A (8/20μs) μs) – IEC61000-4-5      – IEC61000-4-4 (EFT) 40A (5/50ns)  RoHS Compliant Ordering Information Part Number TPMMBZ27VCLT1G Qty per Reel 3000 USB Power & Data Line Protection Monitors and Flat Panel Displays I²C Bus Protection Portable Instrumentation Set Top Box Reel Size 7” Dimensions and Pin Configuration A TPMMBZ 27VCLT1G 2-Line Uni-directional TVS Diode WWW.SOT23.COM.TW Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 150 W Peak Pulse Current (8/20µs) Ipp 5 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range ±30 TJ −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) specified Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM VBR 27 28 Max Unit 24 V 32 V Test Condition IT = 1mA Reverse Leakage Current IR 0.1 uA Clamping Voltage VC 50 V Ipp=5A(8x 20us pulse) Junction Capacitance CJ pF VR = 0V, f = 1MHz 30 kV VRWM = 24V TPMMBZ 27VCLT1G 2-Line Uni-directional TVS Diode WWW.SOT23.COM.TW PROTECTION PRODUCTS Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 60 40 td=t IPP/2 0 0 5 10 15 20 25 30 CH Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 TE % of Rated Power PU t - Time ( s) Fig3. 0 25 50 75 100 125 Ambient Temperature –TA (ºC) 10% BL 20 90% IC tr Percent of Peak Pulse Current % IPP - Peak Pulse Current - % of IPP 120 150 tr = 0.7~1ns 30ns 60ns Time (ns) TPMMBZ 27VCLT1G 2-Line Uni-directional TVS Diode WWW.SOT23.COM.TW Outline Drawing - SOT23 D A DIM e1 H 3 B C c 0 0.25 IC E1 GAUGE PLANE SEATING PLANE E L L1 DETAIL A 1 2 A2 A C A B 3X aaa C PU bbb BL bxN e SEATING PLANE A1 CH TE Land Pattern - SOT23 C SIDE VIEW X Y DIM Z G Y E E1 C C E E1 G X Y Z DIMENSIONS INCHES MILLIMETERS (.087) .037 .075 .031 .039 .055 .141 (2.20) 0.95 1.90 0.80 1.00 1.40 3.60 SEE DETAIL A A A1 A2 b c D E E1 e e1 L L1 N 0 aaa bbb DIMENSIONS INCHES MILLIMETERS MIN NOM MAX MIN NOM MAX .035 .000 .035 .012 .003 .110 .082 .047 .015 0° .037 .114 .093 .051 .075 .037 .020 .022 3 .004 .008 .044 .004 .040 .020 .007 .120 .104 .055 .024 8° 0.89 1.12 0.01 0.10 0.88 0.95 1.02 0.51 0.30 0.18 0.08 2.80 2.90 3.04 2.10 2.37 2.64 1.20 1.30 1.40 1.90 BSC 0.95 BSC 0.40 0.50 0.60 (0.55) 3 0° 8° 0.10 0.20
