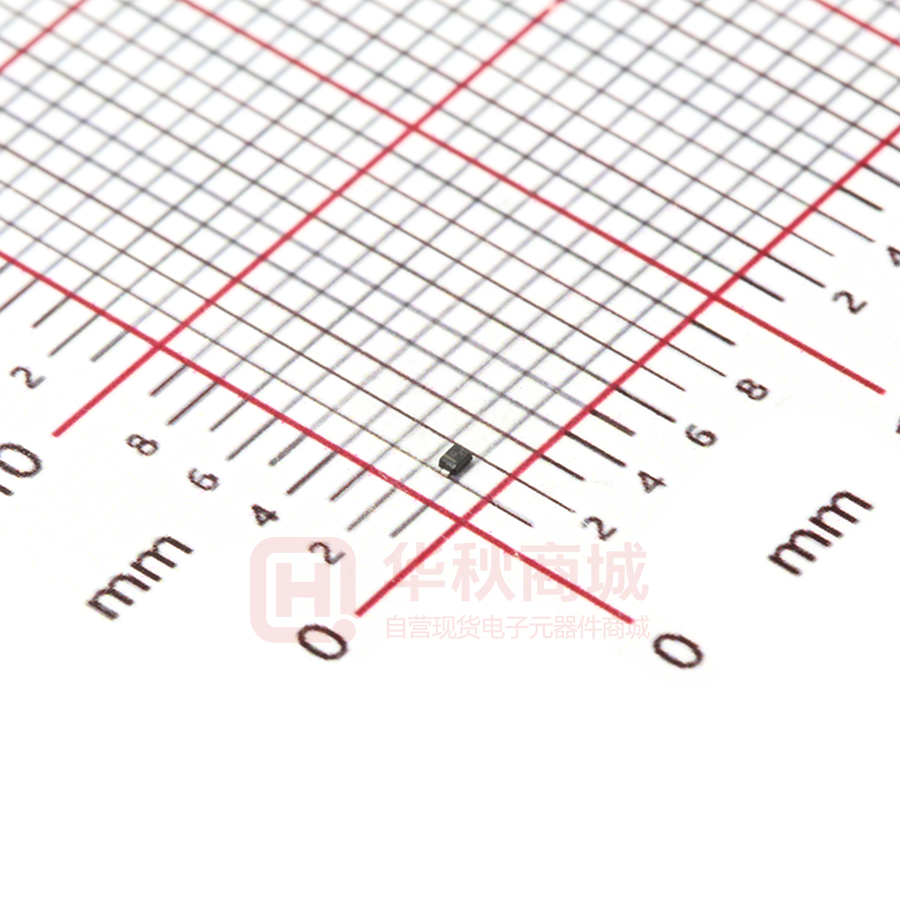

TPESD9X5.0ST5G

TPESD9X5.0ST5G 1-Lin Uni-directional TVS Diode www.sot23.com.tw Features Mechanical Characteristics 140W peak pulse power (8/20μs)  Protects one data or power line  Operating voltage: 5V  Ultra low clamping voltage  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-5 (SURGE) 10A (8/20us) 舟 7” 电 8000 Reel Size   Ultra low leakage: nA level   UL Flammability Classification Rating 94V-0 Case Material: “Green” Molding Compound. Moisture Sensitivity: Level 3 per J-STD-020  Mobile Phones and Accessories  Battery Protection  USB VBus  Power Line Protection  Hand Held Portable Applications Dimensions and Pin Configuration 台 TPESD9X5.0ST5G Qty per Reel Package：SOD-923(0402) Applications Ordering Information Part Number  子  1 TPESD9X5.0ST5G 1-Lin Uni-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 140 W Peak Pulse Current (8/20µs) IPP 10 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range kV ±30 TJ −55 to +125 °C Tstg −55 to +150 °C Symbol Reverse Working Voltage VRWM Reverse Leakage Current 台 Clamping Voltage VBR IT = 1mA(Pin1-Pin2) Min Typ IR VC Clamping Voltage VC Junction Capacitance CJ 6 IPP = 1A (8 x 20us pulse) (Pin1-Pin2) IPP = 10A (8 x 20us pulse) (Pin1-Pin2) 2 V V VRWM = 5.0V(Pin2-Pin1) VR = 0V, f = 1MHz Max Unit 5 舟 Breakdown Voltage Test Condition 电 Parameter 子 Electrical Characteristics (TA=25°C unless otherwise specified) 55 0.08 µA 8 V 15 V 90 pF TPESD9X5.0ST5G 1-Lin Uni-directional TVS Diode www.sot23.com.tw Characteristic Curves Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 Percent of Peak Pulse Current % tr 60 40 td=t IPP/2 0 5 10 15 20 t - Time ( s) Power Derating Curve 110 100 90 80 70 60 50 40 30 20 10 0 台 % of Rated Power 30 舟 Fig3. 25 电 0 0 25 50 75 100 125 10% 子 20 90% 150 Ambient Temperature –TA (ºC) 3 tr = 0.7~1ns 30ns 60ns Time (ns) TPESD9X5.0ST5G 1-Lin Uni-directional TVS Diode www.sot23.com.tw Outline Drawing - SOD-9 23(0402) A B DIM C 电 D 台 舟 F 子 E Land Pattern - SOD-9 23(0402) 0.90 mm 0.40mm 0.30mm 4 A B C D E F DIMENSIONS INCHES MM MAX MIN MAX MIN .037 .041 0.95 1.05 .030 .033 0.75 0.85 .022 .026 0.55 0.65 .014 .017 0.36 0.43 .006 .010 0.15 0.25 .003 .007 0.07 0.17 NOTE
