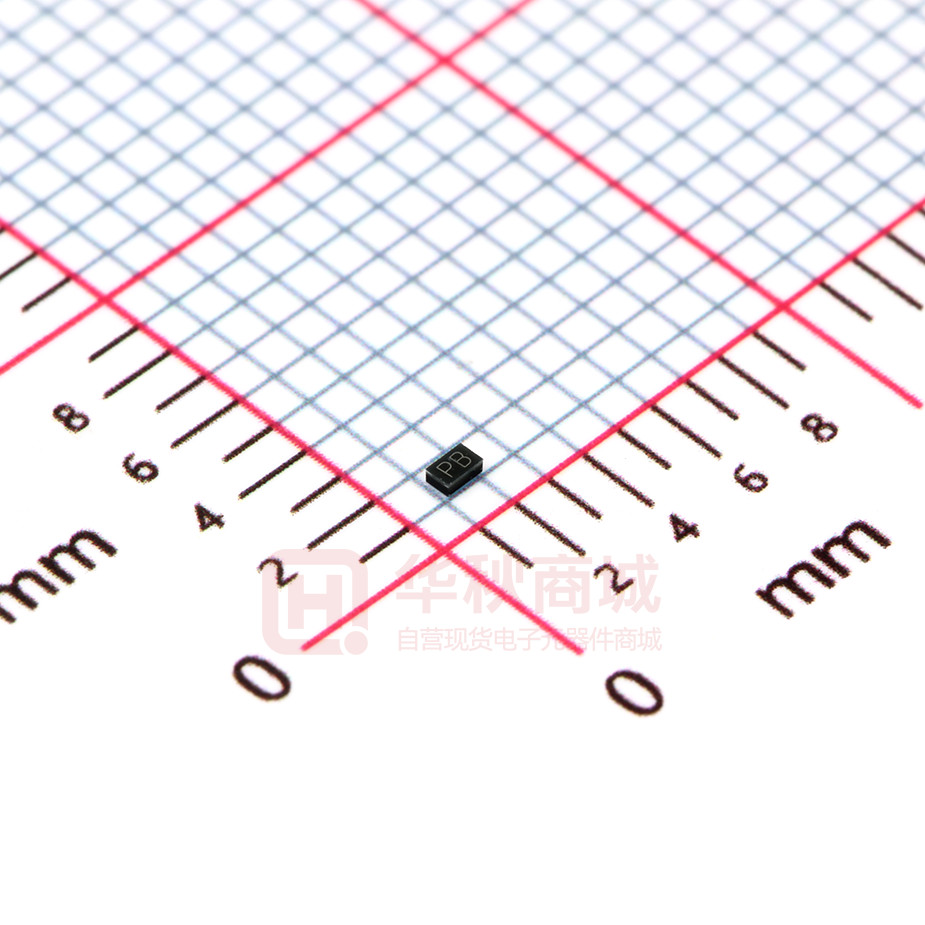

TPESD5451N

TPESD5451N 1-Line Bi-directional TVS Diode www.sot23.com.tw Features Mechanical Characteristics ⚫ Package: DFN1006-2 (0402) ⚫ Lead Finish: Matte Tin ⚫ Ultra small package: 1.0x0.6x0.5mm ⚫ Ultra low capacitance: 15pF typical ⚫ Case Material: “Green” Molding Compound. ⚫ Moisture Sensitivity: Level 3 per J-STD-020 ⚫ Ultra low leakage: nA level ⚫ Low operating voltage: ±5V ⚫ Terminal Connections: See Diagram Below ⚫ Shipping Qty : 10000pcs/7Inch Tape & Reel ⚫ Low clamping voltage ⚫ 2-pin leadless package ⚫ Marking: PB ⚫ Complies with following standards: Applications ⚫ – IEC 61000-4-2 (ESD) immunity test ⚫ Smart Phone and Tablet PC Air discharge: ±30kV Contact discharge: ±30kV - - (Lightning)8A (8/20μs) μs) ⚫ – IEC61000-4-5 ⚫ RoHS Compliant ⚫ TV and Set Top Box ⚫ Wearable Devices ⚫ PDA 舟 电 子 ⚫ Lead Finish: NiPdAu Dimensions and Pin Configuration 台 1.0 0.60  0.65  0.50 TPESD5451N 1-Line Bi-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 80 W Peak Pulse Current (8/20µs) Ipp 8 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range −55 to +125 °C Tstg −55 to +150 °C Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Reverse Working Voltage Reverse Leakage Current 5 V 8.4 V IR 0.08 uA VC 6 V Ipp=1A(8x 20us pulse) 10 V Ipp=8A(8x 20us pulse) pF VR = 0V, f = 1MHz 台 Clamping Voltage Clamping Voltage Unit VBR Junction Capacitance Typ 5.6 舟 Breakdown Voltage Max VRWM Min 电 Parameter VC CJ 15 2 kV TJ 子 Storage Temperature Range ±30 Test Condition IT = 1mA VRWM = 5V TPESD5451N 1-Line Bi-directional TVS Diode www.sot23.com.tw 台 舟 电 Fig.1 Pulse Waveform-ESD (IEC61000-4-2) 子 Typical Performance Characteristics (TA=25°C unless otherwise Specified) TPESD5451N 1-Line Bi-directional TVS Diode www.sot23.com.tw DFN1006-2 Package Outline Drawing (0402) e D h h A A1 0.00 0.02 0.05 0.000 0.001 0.002 b 0.45 0.50 0.55 0.018 0.020 0.022 c 0.12 0.15 0.18 0.005 0.006 0.007 D 0.95 1.00 1.05 0.037 0.039 0.041 SYM - b E - DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.45 0.50 0.55 0.018 0.020 0.022 L A1 c A Bottom View 0.65 BSC 子 e 0.026 BSC 0.55 0.60 0.65 0.022 0.024 0.026 L 0.20 0.25 0.30 0.008 0.010 0.012 h 0.07 0.12 0.17 0.003 0.005 0.007 舟 电 E 台 Suggested Land Pattern ╋ Y3 Y2 SYM Y1 Z DIMENSIONS MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 ╋ X 4
