TPESD5431N

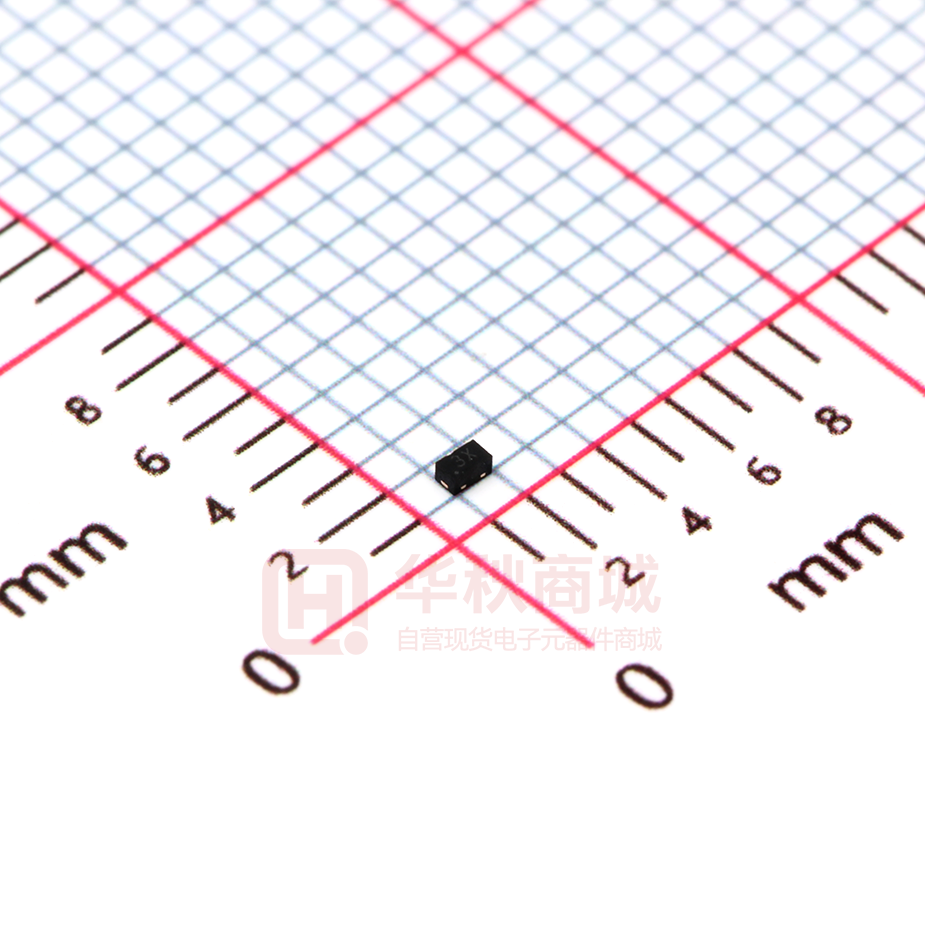

TPESD5431N 1-Line Bi-directional TVS Diode www.sot23.com.tw Features Mechanical Characteristics ⚫ Package: DFN1006-2 (0402) ⚫ Lead Finish: Matte Tin ⚫ Ultra small package: 1.0x0.6x0.5mm ⚫ Ultra low capacitance: 15pF typical ⚫ Case Material: “Green” Molding Compound. ⚫ Moisture Sensitivity: Level 3 per J-STD-020 ⚫ Ultra low leakage: nA level ⚫ Low operating voltage: ±3.3V ⚫ Terminal Connections: See Diagram Below ⚫ Low clamping voltage ⚫ 2-pin leadless package Applications IC ⚫ Complies with following standards: ⚫ – IEC 61000-4-2 (ESD) immunity test ⚫ Air discharge: ±30kV Contact discharge: ±30kV - - (Lightning) 9A (8/20μs) μs) ⚫ – IEC61000-4-5 ⚫ RoHS Compliant BL ⚫ ⚫ ⚫ Cellular Handsets and Accessories Personal Digital Assistants Notebooks and Handhelds Portable Instrumentation Digital Cameras Peripherals ⚫ PU ⚫ Lead Finish: NiPdAu Ordering Information Qty per Reel Reel Size TPESD5431N 3000 10000 7” TE CH Part Number ⚫ Dimensions and Pin Configuration WWW.TECHPUBLIC.COM.TW TPESD5431N 1-Line Bi-directional TVS Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 100 W Peak Pulse Current (8/20µs) Ipp 9 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) TJ −55 to +125 °C Tstg −55 to +150 °C IC Operating Temperature Range kV ±30 BL Storage Temperature Range Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Reverse Working Voltage VBR Reverse Leakage Current Clamping Voltage Junction Capacitance 3.7 4.8 IR VC TE Clamping Voltage VRWM Typ CH Breakdown Voltage Min VC CJ Max PU Parameter 15 2 Unit 3.3 V 6 V 0.05 uA Test Condition IT = 1mA VRWM = 3.3V 6 V Ipp=1A(8x 20us pulse) 11.5 V Ipp=9A(8x 20us pulse) pF VR = 0V, f = 1MHz WWW.TECHPUBLIC.COM.TW TPESD5431N 1-Line Bi-directional TVS Diode www.sot23.com.tw TE CH UB LI C Typical Performance Characteristics (TA=25°C unless otherwise Specified) WWW.TECHPUBLIC.COM.TW 3 TPESD5431N 1-Line Bi-directional TVS Diode www.sot23.com.tw DFN1006-2 Package Outline Drawing (0402) h h A A1 0.00 0.02 0.05 0.000 0.001 0.002 b 0.45 0.50 0.55 0.018 0.020 0.022 c 0.12 0.15 0.18 0.005 0.006 0.007 D 0.95 1.00 1.05 0.037 0.039 0.041 SYM - b E - DIMENSIONS MILLIMETERS INCHES MIN NOM MAX MIN NOM MAX 0.45 0.50 0.55 0.018 0.020 0.022 L A1 c A Bottom View 0.65 BSC BL e IC e D 0.026 BSC 0.55 0.60 0.65 0.022 0.024 0.026 L 0.20 0.25 0.30 0.008 0.010 0.012 h 0.07 0.12 0.17 0.003 0.005 0.007 ╋ Y3 Y2 TE Suggested Land Pattern CH PU E Y1 SYM Z DIMENSIONS MILLIMETERS INCHES X 0.60 0.024 Y1 0.50 0.020 Y2 0.30 0.012 Y3 0.80 0.032 Z 1.30 0.052 ╋ X 4 WWW.TECHPUBLIC.COM.TW
