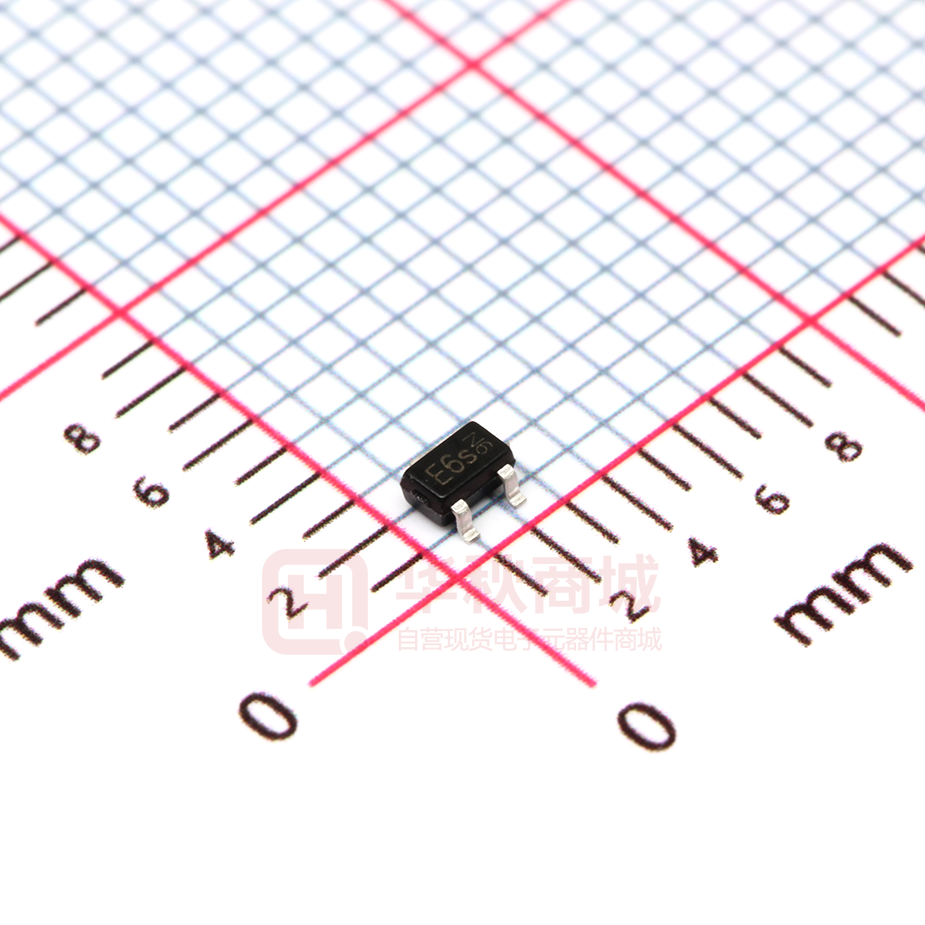

TPESD1P0RFW

TPESD1P0RFW Low Capacitance TVS Diode Array www.sot23.com.tw Mechanical Characteristics Features ● ● ● ● Package: SOT323 ●  Lead Finish: Matte Tin ● UL Flammability Classification Rating 94V-0 Applications ● Cell Phones ● Audio Interface Connections ● Consumer Electronics (DVR, Set-Top Box, TV) ● Industrial Interfaces (RS-232, RS-485, RS-422, LVDS) Ordering Information Reel Size 3000 7” 舟 TPESD1P0RFW Qty per Reel Dimensions and Pin Configuration 台 Part Number 电 子 ● Ultra low leakage: nA level Operating voltage: 70V Low clamping voltage Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-4 (EFT) 40A (5/50ns) –IEC61000-4-5 (Lightning)10A (8/20μs) RoHS Compliant SOT323 TPESD1P0RFW Low Capacitance TVS Diode Array www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Ipp 10 A Peak Pulse Current (8/20µs) ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range −55 to +125 °C Tstg −55 to +150 °C Symbol Reverse Leakage Current Unit 70 V IR 100 nA VRWM =70V VC 7 V IPP = 3A (8 x 20 s pulse) 15 V IPP = 10A (8 x 20 s pulse) 1.5 pF VR = 0V, f = 1MHz 台 Clamping Voltage Max VRWM Min Typ 舟 Reverse Working Voltage 电 Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Clamping Voltage VC Junction Capacitance CJ 1 kV TJ 子 Storage Temperature Range ±30 Test Condition TPESD1P0RFW Low Capacitance TVS Diode Array PROTECTION PRODUCTS www.sot23.com.tw Typical charateristics Fig2. ESD Pulse Waveform (according to IEC 61000-4-2) Fig1. 8/20µ s Pulse Waveform 120 IPP - Peak Pulse Current - % of IPP 100 100% TEST WAVEFORM PARAMETERS tr=8 s td=20 s Peak Value IPP 80 Percent of Peak Pulse Current % tr 60 40 td=t IPP/2 20 0 5 10 15 20 25 30 t - Time ( s) Power Derating Curve 电 Fig3. 舟 90 80 70 60 50 40 30 20 10 0 台 % of Rated Power 110 100 0 25 50 75 100 125 Ambient Temperature –TA (ºC) 10% 子 0 90% 150 tr = 0.7~1ns 30ns 60ns Time (ns) TPESD1P0RFW Low Capacitance TVS Diode Array www.sot23.com.tw Outline Drawing - SOT323(SC70-3) SOT323-3L package outline c θ L H A 子 E D e 电 b 台 舟 A1 Ref. Min. Dimensions Inches(1) Millimeters Max. Min. 0.80 1.10 0.031 0.044 A1 0.00 0.10 0.000 0.004 b 0.25 0.40 0.009 0.016 c 0.10 0.26 0.003 0.011 D 1.80 2.20 0.070 A Typ. 2.00 Typ. 0.079 Max. 0.087 E 1.15 1.25 1.35 0.045 0.049 0.054 e 0.60 0.65 0.70 0.023 0.026 0.028 H 1.80 2.10 2.40 0.070 0.083 0.095 L 0.10 0.20 0.30 0.004 0.008 0.012 0 30° 0 30° ϴ
